4-Port USB 3.0 Type-A Connector – C071070
USB 3.05GbpsBoard-Mount
Engineered for high-reliability USB interconnect, this 3.0 Type-A connector features standard board-mount construction with standard cable exit orientation. The standard contact...
3.0 Type-A interface5Gbps SuperSpeed transfer
Single-layer PCB designStandard pin configuration
90° exit angleStandard cable exit
USB 3.0 SuperSpeed readyCompact board footprint
Technical Specifications
| USB Version | USB 3.0 |
| Connector Type | USB Type-A |
| Mount Type | Board-Mount |
| Layers | Single-Layer |
| Orientation | 90 Degree |
| Pin Configuration | Standard |
| Rated Current | 1.8A (0.25A for other contacts) |
| Rated Voltage | 30V DC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 100MΩ |
| Withstand Voltage | 100V |
| Contact Material | U2 contacts: Phosphor Bronze, half gold-tin plated; U3 contacts: Brass, half gold-tin plated |
| Insulator Material | High-Temperature Plastic, UL94-V0 |
| Shell Material | SUS, nickel plated |
| Data Speed | 5Gbps |
| Operating Temperature | -55°C to +85°C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 3.0 Type-A connector supporting standard 3.0 data protocols
- Single-layer PCB design with 90° cable exit for flexible board integration
- Standard contact configuration for full USB signaling compatibility
- Gold-plated contact pins for low contact resistance and oxidation resistance
- Suitable for point-of-sale systems and commercial electronic equipment
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

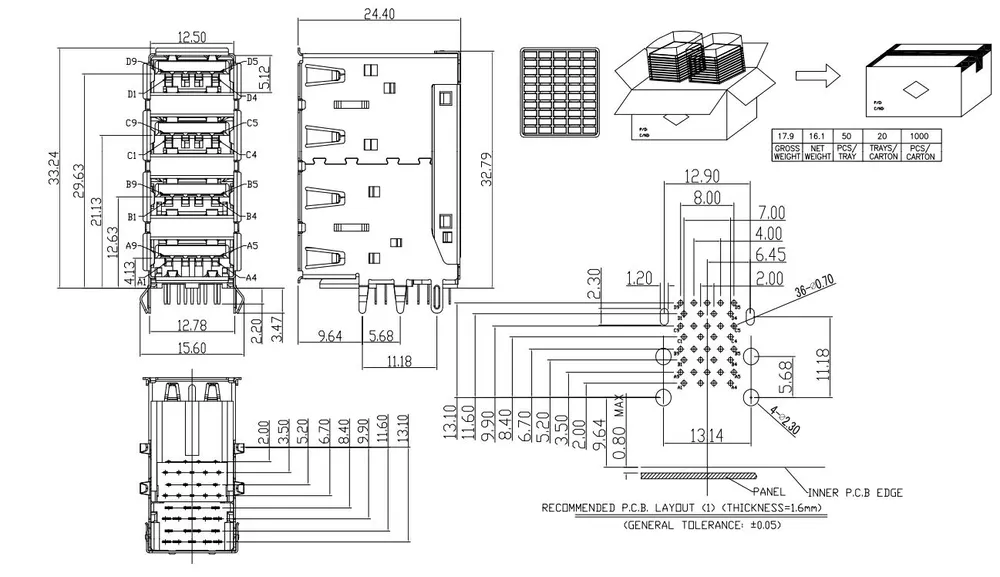

Product Drawing

Engineered for high-reliability USB interconnect, this 3.0 Type-A connector features standard board-mount construction with standard cable exit orientation. The standard contact configuration supports full USB 3.0 signaling requirements for data and power delivery. Suitable for consumer electronics, industrial controls, and embedded computing platforms requiring USB interconnect. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
