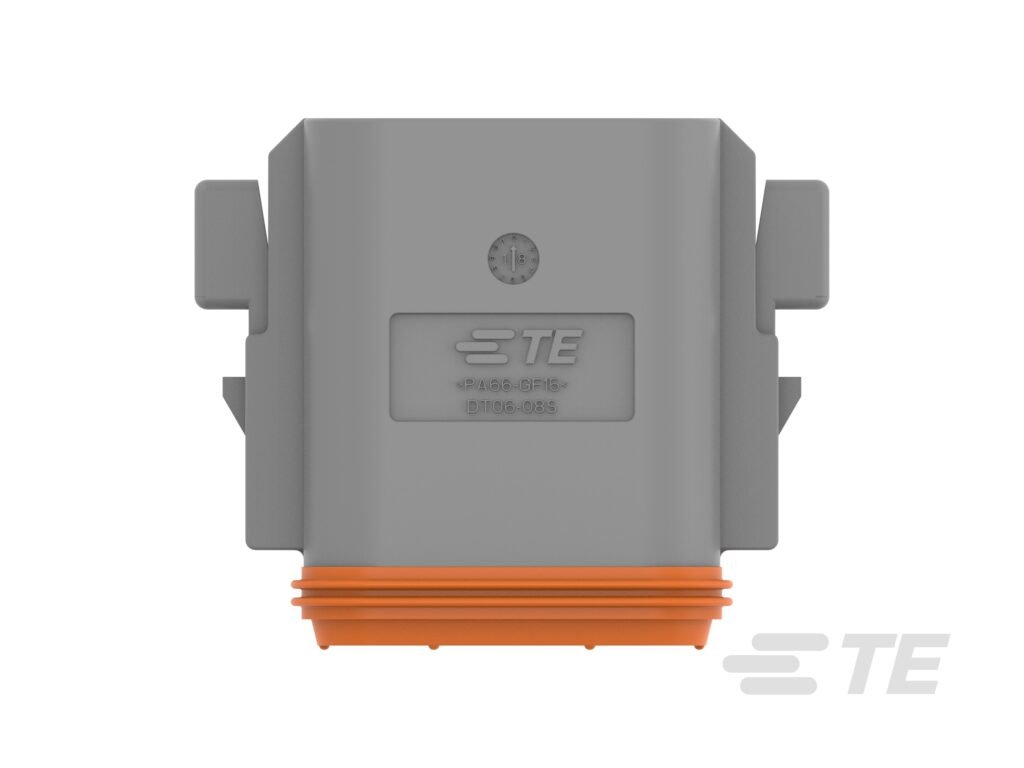

Deutsch DT06-08SA-C015 8-Socket Receptacle Housing, Gray
8 PinsIP6813A
8-position receptacle (socket) housing for Deutsch DT series sealed connectors. Rated 13A at 250V with IP68 protection. Ideal for instrument panel clusters consolidating gauge.
8-position sealed cavityDust-tight, immersion-rated
13A @ 250VSolid pin/socket contacts
Mates with DT04-8P-E004Plug-to-receptacle sealed pair
Technical Specifications
| Contact Size | Size 16 |
| Number of Contacts | 8 |
| Rated Current | 13A |
| Rated Voltage | 250V |
| IP Rating | IP68 |
| Operating Temperature | -55°C to +125°C |
| Wire Gauge Range | 14-20 AWG |
| Locking Type | Push-pull |
| Housing Type | Receptacle |
| Color | Gray |
Key Features
- Environmentally sealed to IP68 for dust and water ingress protection
- Integrated silicone grommet seal maintains sealing across the rated wire gauge range
- Accepts Size 16 solid Deutsch contacts (sold separately)
- Push-pull locking mechanism provides positive engagement and audible mating confirmation
- Mates directly with Deutsch DT04-8P-E004 receptacle/plug counterpart
- Suitable for agricultural chemical exposure in field equipment
- Suitable for off-highway equipment exposed to dust and water splash
Applications
- Industrial Automation

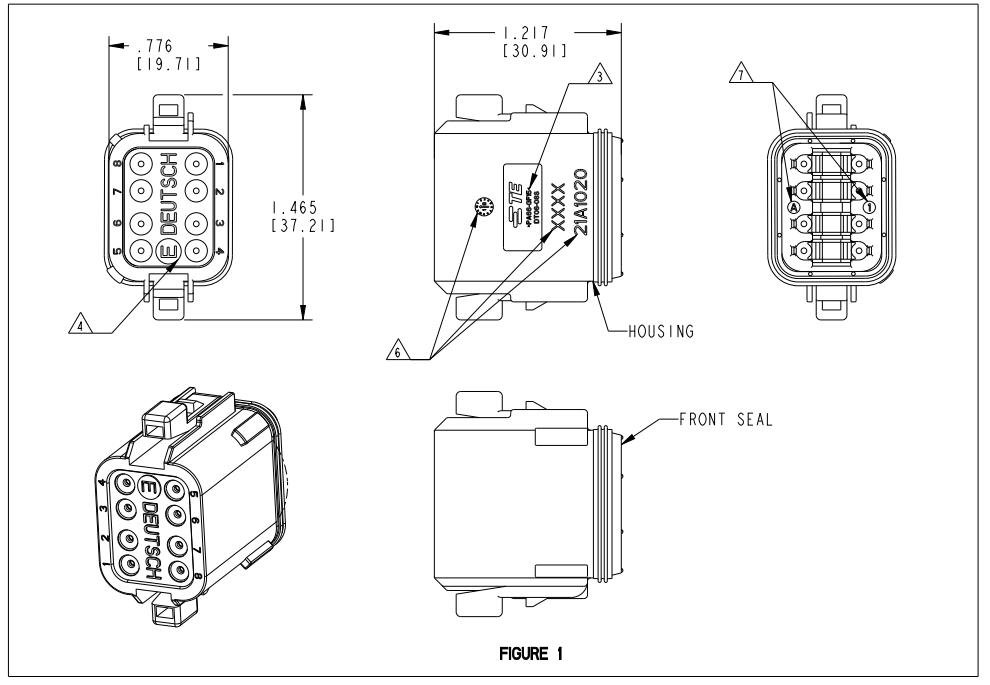

Drawing & Dimensions
Deutsch DT06-08SA-C015 8-Socket Receptacle Housing, Gray
The Deutsch DT06-08SA-C015 is a 8-position receptacle housing engineered for the DT series of environmentally sealed connectors. Engineered for 13A continuous current at 250V and operating temperatures from -55 °C to +125 °C, the housing accepts Size 16 solid contacts (sold separately) and is rated to IP68 for dust ingress and continuous water immersion.
Typical Applications
The 8-position configuration is commonly specified for instrument panel clusters consolidating gauge, warning, and indicator signals, as well as diagnostic and telematics port connections in fleet management systems. Its combination of sealed construction and 13A continuous current capability makes it a versatile choice for both power and signal circuits.
Mating and Integration
The DT06-08SA-C015 mates directly with the DT04-8P-E004 on the opposite harness side, providing a fully sealed in-line connection. Push-to-seat solid contacts are crimped to the wire, then inserted into the housing from the rear until they lock into the cavity. A secondary lock wedge (where applicable to the DT series cavity arrangement) provides positive contact retention.
Where It Is Deployed
It is commonly specified for mining haul trucks, drilling equipment, and underground loaders, as well as military and specialty vehicle platforms requiring ruggedized interconnects. The IP68 sealed design tolerates engine-bay heat, under-chassis water splash, and chemical exposure typical of these environments.
Why Specify This Part
GSCONN supplies genuine Deutsch DT series housings with full traceability and same-day shipping on stocked SKUs.
