Deutsch DT06-2S-CE05 2-Socket Receptacle Housing, Black
2 PinsIP6813A
2-position receptacle (socket) housing for Deutsch DT series sealed connectors. Rated 13A at 250V with IP68 protection. Ideal for low-current DC power feeds for position sensors.
2-pin sealed interfaceStandard IP68 sealed housing
13A @ 250VCrimp-to-cavity solid contacts
Mates with DT04-2P-E005Complete sealed circuit
Technical Specifications
| Contact Size | Size 16 |
| Number of Contacts | 2 |
| Rated Current | 13A |
| Rated Voltage | 250V |
| IP Rating | IP68 |
| Operating Temperature | -55°C to +125°C |
| Wire Gauge Range | 14-20 AWG |
| Locking Type | Push-pull |
| Housing Type | Receptacle |
| Color | Black |
Key Features
- Environmentally sealed to IP68 for dust and water ingress protection
- Integrated silicone grommet seal maintains sealing across the rated wire gauge range
- Accepts Size 16 solid Deutsch contacts (sold separately)
- Push-pull locking mechanism provides positive engagement and audible mating confirmation
- Mates directly with Deutsch DT04-2P-E005 receptacle/plug counterpart
- Suitable for marine deck and bilge-pump wiring installations
- Suitable for mixed sensor and actuator HVAC control interfaces
Applications
- Industrial Automation

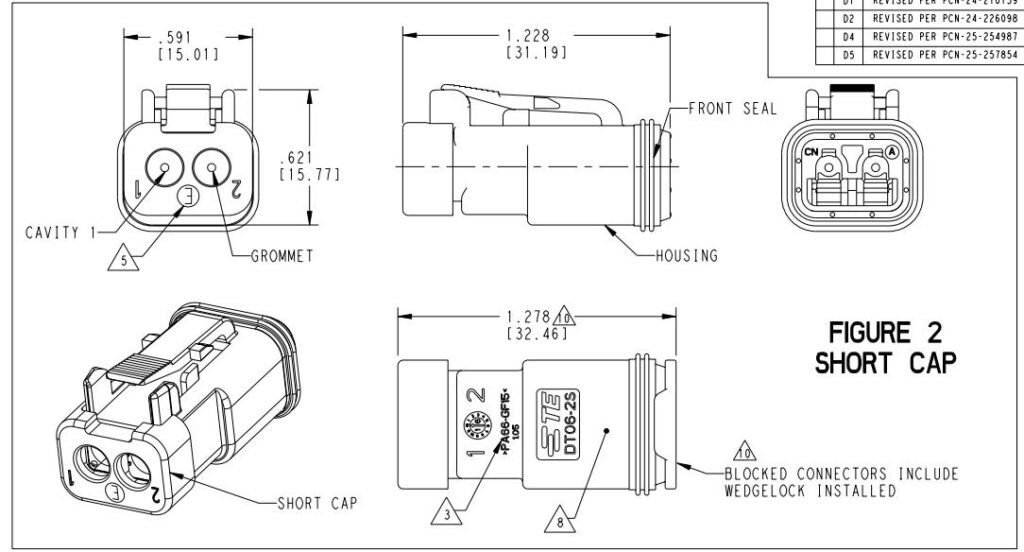

Drawing & Dimensions
Deutsch DT06-2S-CE05 2-Socket Receptacle Housing, Black
The DT06-2S-CE05 brings Deutsch DT series reliability to 2-position receptacle applications, with a sealed housing rated to IP68. Engineered for 13A continuous current at 250V and operating temperatures from -55 °C to +125 °C, the housing accepts Size 16 solid contacts (sold separately) and is rated to IP68 for dust ingress and continuous water immersion.
Typical Applications
The 2-position configuration is commonly specified for low-current DC power feeds for position sensors, level switches, or auxiliary lamps, as well as engine block heaters, block-mounted senders, or basic on/off power drops. Its combination of sealed construction and 13A continuous current capability makes it a versatile choice for both power and signal circuits.
Mating and Integration
The DT06-2S-CE05 mates directly with the DT04-2P-E005 on the opposite harness side, providing a fully sealed in-line connection. Push-to-seat solid contacts are crimped to the wire, then inserted into the housing from the rear until they lock into the cavity. A secondary lock wedge (where applicable to the DT series cavity arrangement) provides positive contact retention.
Where It Is Deployed
It is commonly specified for military and specialty vehicle platforms requiring ruggedized interconnects, as well as on-highway commercial trucks, buses, and specialty vocational vehicles. The IP68 sealed design tolerates engine-bay heat, under-chassis water splash, and chemical exposure typical of these environments.
Why Specify This Part
GSCONN maintains deep inventory of the Deutsch DT series to support both prototype builds and high-volume production runs.
