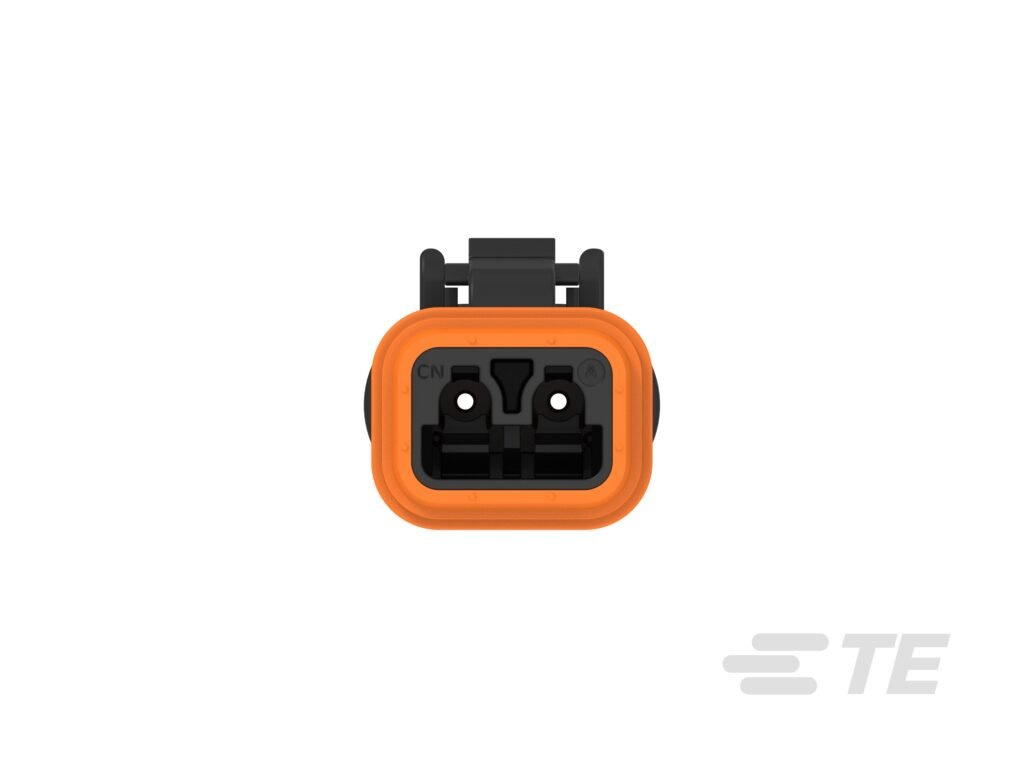

Deutsch DT06-2S-EP11 2-Socket Receptacle Housing
2 PinsIP6813A
2-position receptacle (socket) housing for Deutsch DT series sealed connectors. Rated 13A at 250V with IP68 protection. Ideal for compact solenoid valves and actuator power in agri
2-way sealed connectorDust-tight, immersion-rated
13A @ 250VDeutsch-grade solid contacts
Mates with DT04-2P-E005Drop-in compatible
Technical Specifications
| Contact Size | Size 16 |
| Number of Contacts | 2 |
| Rated Current | 13A |
| Rated Voltage | 250V |
| IP Rating | IP68 |
| Operating Temperature | -55°C to +125°C |
| Wire Gauge Range | 14-20 AWG |
| Locking Type | Push-pull |
| Housing Type | Receptacle |
Key Features
- Environmentally sealed to IP68 for dust and water ingress protection
- Integrated silicone grommet seal maintains sealing across the rated wire gauge range
- Accepts Size 16 solid Deutsch contacts (sold separately)
- Push-pull locking mechanism provides positive engagement and audible mating confirmation
- Mates directly with Deutsch DT04-2P-E005 receptacle/plug counterpart
- Vibration-resistant contact retention for mobile equipment installations
- Compact design supports space-constrained installation behind cab panels
Applications
- Industrial Automation

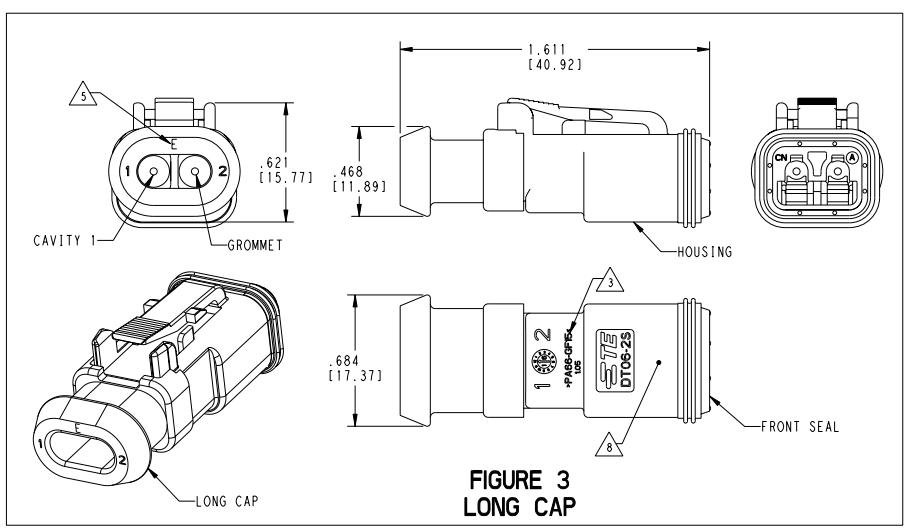

Drawing & Dimensions
Deutsch DT06-2S-EP11 2-Socket Receptacle Housing
The Deutsch DT06-2S-EP11 is a 2-position receptacle housing engineered for the DT series of environmentally sealed connectors. Engineered for 13A continuous current at 250V and operating temperatures from -55 °C to +125 °C, the housing accepts Size 16 solid contacts (sold separately) and is rated to IP68 for dust ingress and continuous water immersion.
Typical Applications
The 2-position configuration is commonly specified for compact solenoid valves and actuator power in agricultural and material-handling equipment, as well as single-channel trailer lighting circuits where minimal wiring is required. Its combination of sealed construction and 13A continuous current capability makes it a versatile choice for both power and signal circuits.
Mating and Integration
The DT06-2S-EP11 mates directly with the DT04-2P-E005 on the opposite harness side, providing a fully sealed in-line connection. Push-to-seat solid contacts are crimped to the wire, then inserted into the housing from the rear until they lock into the cavity. A secondary lock wedge (where applicable to the DT series cavity arrangement) provides positive contact retention.
Where It Is Deployed
Typical deployments include agricultural tractors, combines, and planters, as well as forestry forwarders, harvesters, and skid-steer equipment. The IP68 sealed design tolerates engine-bay heat, under-chassis water splash, and chemical exposure typical of these environments.
Why Specify This Part
Genuine Deutsch DT-series construction with consistent cavity geometry ensures drop-in compatibility across the entire DT family.
