Deutsch DTM04-6P 6-Pin Plug Housing
6 PinsIP687.5A
6-position plug housing for Deutsch DTM (miniature) series sealed connectors. Rated 7.5A at 250V with IP68 protection. Ideal for compact industrial control blocks combining relay o
6-position sealed drop1m water immersion rated
7.5A @ 250VSize 20 solid contacts
Mates with DTM06-6SMates with series counterpart
Technical Specifications
| Contact Size | Size 20 |
| Number of Contacts | 6 |
| Rated Current | 7.5A |
| Rated Voltage | 250V |
| IP Rating | IP68 |
| Operating Temperature | -55°C to +125°C |
| Wire Gauge Range | 20-24 AWG |
| Locking Type | Push-pull |
| Housing Type | Plug |
Key Features
- Environmentally sealed to IP68 for dust and water ingress protection
- Integrated silicone grommet seal maintains sealing across the rated wire gauge range
- Accepts Size 20 solid Deutsch contacts (sold separately)
- Push-pull locking mechanism provides positive engagement and audible mating confirmation
- Mates directly with Deutsch DTM06-6S receptacle/plug counterpart
- Suitable for motor power and feedback circuits in industrial control systems
- Compatible with Deutsch HDT series tooling and contact removal tools
Applications
- Industrial Automation

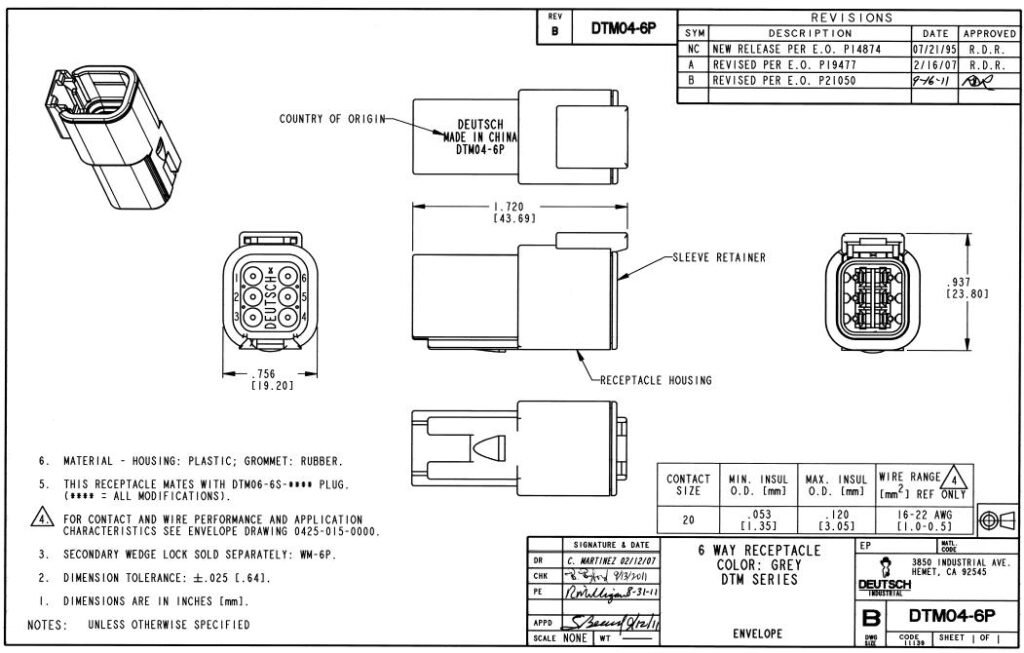

Drawing & Dimensions
Deutsch DTM04-6P 6-Pin Plug Housing
Engineered to Deutsch’s DTM (miniature) series specification, the DTM04-6P is a 6-position plug housing built for harsh-environment electrical interconnects. Engineered for 7.5A continuous current at 250V and operating temperatures from -55 °C to +125 °C, the housing accepts Size 20 solid contacts (sold separately) and is rated to IP68 for dust ingress and continuous water immersion.
Typical Applications
The 6-position configuration is commonly specified for compact industrial control blocks combining relay outputs and digital inputs, as well as multi-function switch panels for wipers, washers, horn, and lighting modes. Its combination of sealed construction and 7.5A continuous current capability makes it a versatile choice for both power and signal circuits.
Mating and Integration
The DTM04-6P mates directly with the DTM06-6S on the opposite harness side, providing a fully sealed in-line connection. Push-to-seat solid contacts are crimped to the wire, then inserted into the housing from the rear until they lock into the cavity. A secondary lock wedge (where applicable to the DTM (miniature) series cavity arrangement) provides positive contact retention.
Where It Is Deployed
Engineers frequently choose this part for construction excavators, wheel loaders, and articulated dump trucks, as well as marine deck machinery, bilge systems, and outboard harnesses. The IP68 sealed design tolerates engine-bay heat, under-chassis water splash, and chemical exposure typical of these environments.
Why Specify This Part
GSCONN supplies genuine Deutsch DTM (miniature) series housings with full traceability and same-day shipping on stocked SKUs.
