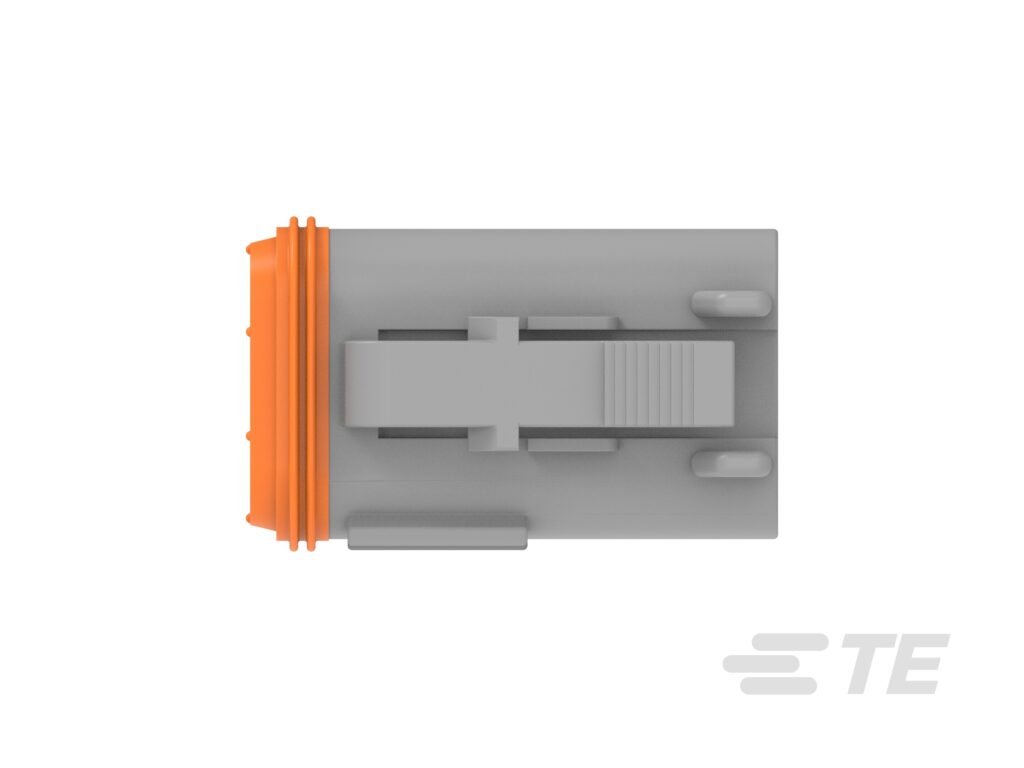

Deutsch DT06-12SA-C015 12-Socket Receptacle Housing, Gray
12 PinsIP6813A
12-position receptacle (socket) housing for Deutsch DT series sealed connectors. Rated 13A at 250V with IP68 protection. Ideal for engine management sub-harnesses with grouped sens
12-way sealed connectorEngine-bay grade sealing
13A @ 250VDeutsch-grade solid contacts
Mates with DT04-12PA C015Drop-in compatible
Technical Specifications
| Contact Size | Size 16 |
| Number of Contacts | 12 |
| Rated Current | 13A |
| Rated Voltage | 250V |
| IP Rating | IP68 |
| Operating Temperature | -55°C to +125°C |
| Wire Gauge Range | 14-20 AWG |
| Locking Type | Push-pull |
| Housing Type | Receptacle |
| Color | Gray |
Key Features
- Environmentally sealed to IP68 for dust and water ingress protection
- Integrated silicone grommet seal maintains sealing across the rated wire gauge range
- Accepts Size 16 solid Deutsch contacts (sold separately)
- Push-pull locking mechanism provides positive engagement and audible mating confirmation
- Mates directly with Deutsch DT04-12PA C015 receptacle/plug counterpart
- High-current capacity supports solenoid and motor drive circuits
- Suitable for battery-pack and high-current DC distribution
Applications
- Industrial Automation

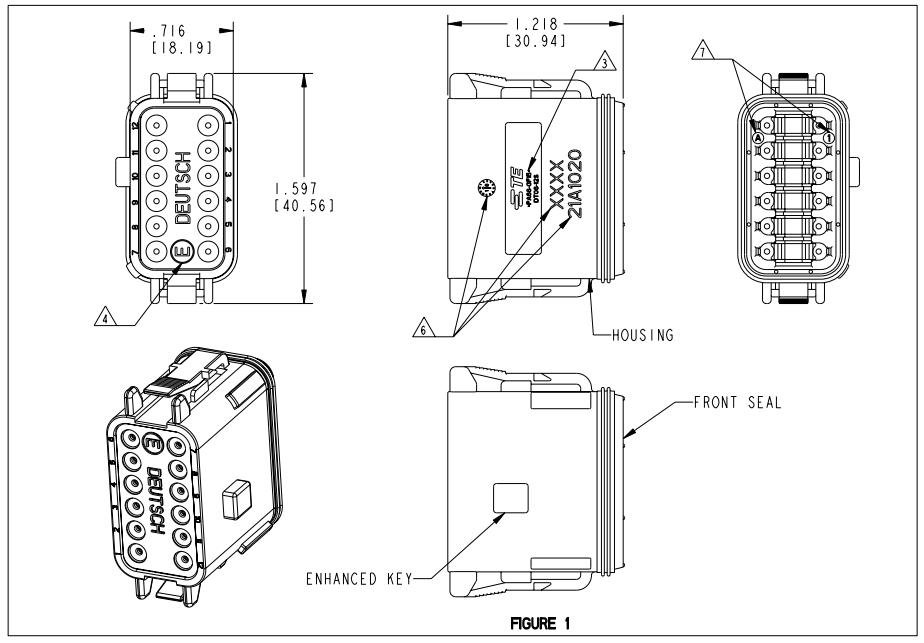

Drawing & Dimensions
Deutsch DT06-12SA-C015 12-Socket Receptacle Housing, Gray
Designed to the Deutsch DT series standard, the DT06-12SA-C015 delivers a 12-position receptacle connection in a compact, environmentally sealed package. Engineered for 13A continuous current at 250V and operating temperatures from -55 °C to +125 °C, the housing accepts Size 16 solid contacts (sold separately) and is rated to IP68 for dust ingress and continuous water immersion.
Typical Applications
The 12-position configuration is commonly specified for engine management sub-harnesses with grouped sensor and injector channels, as well as complex control-system harnesses on wheel loaders and telehandlers. Its combination of sealed construction and 13A continuous current capability makes it a versatile choice for both power and signal circuits.
Mating and Integration
The DT06-12SA-C015 mates directly with the DT04-12PA C015 on the opposite harness side, providing a fully sealed in-line connection. Push-to-seat solid contacts are crimped to the wire, then inserted into the housing from the rear until they lock into the cavity. A secondary lock wedge (where applicable to the DT series cavity arrangement) provides positive contact retention.
Where It Is Deployed
This configuration is commonly used in marine deck machinery, bilge systems, and outboard harnesses, as well as renewable-energy battery storage and utility-scale inverter cabinets. The IP68 sealed design tolerates engine-bay heat, under-chassis water splash, and chemical exposure typical of these environments.
Why Specify This Part
GSCONN maintains deep inventory of the Deutsch DT series to support both prototype builds and high-volume production runs.
