Triple-Port USB 3.0 Type-A Connector – C071174
USB 3.05GbpsBoard-Mount
Precision-tooled for 3.0 data integrity, this 3.0 Type-A connector features triple-layer board-mount construction with standard cable exit orientation. The standard contact...
3.0 Type-A interfaceUSB 3.0 SuperSpeed data path
Triple-layer PCB designThree-row PCB pin layout
None° exit angleStandard cable exit
5Gbps data rate complianceHigh-density PCB layout
Technical Specifications
| USB Version | USB 3.0 |
| Connector Type | USB Type-A |
| Mount Type | Board-Mount |
| Layers | Single-Layer |
| Orientation | 90 Degree |
| Pin Configuration | Standard |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 5Gbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 3.0 Type-A connector supporting standard 3.0 data protocols
- Triple-layer PCB design with None° cable exit for flexible board integration
- Standard contact configuration for full USB signaling compatibility
- Compatible with educational electronics, prototyping, and STEM platforms
- Polarized housing design prevents incorrect insertion and contact damage
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

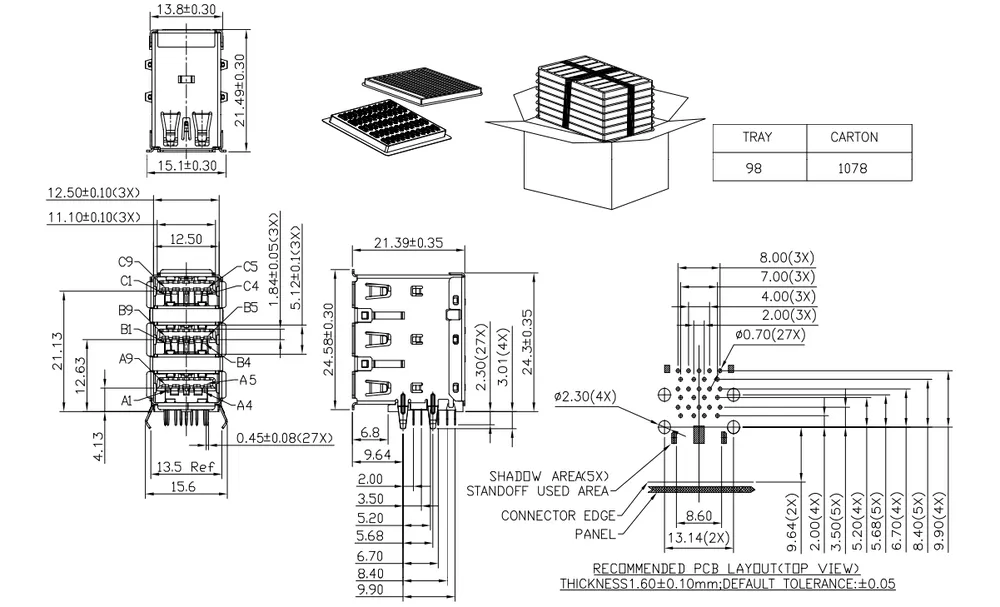

Product Drawing
Precision-tooled for 3.0 data integrity, this 3.0 Type-A connector features triple-layer board-mount construction with standard cable exit orientation. The standard contact configuration supports full USB 3.0 signaling requirements for data and power delivery. Polarized housing design ensures correct orientation during cable mating, reducing field service risk. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
