Technical Specifications
| Housing | Hi-Temp Temperature, UL94V-0, Black |
| Terminal | Copper Alloy |
| Shell | Stainless steel |
| Durability | 3000 Cycles |
| Temperature | -25°C to +85°C |
| Current Rating | 0.5 AMP |
| Insulation Resistance | 1000MΩ Min. |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 500V AC/Minute |
Key Features
- Hi-Temp Temperature, UL94V-0, Black
- Copper Alloy contact system
- Stainless steel shell
- Rated 0.5 AMP
- 500V AC/Minute dielectric withstanding voltage
- Contact resistance 50mΩ Max.
- Insulation resistance 1000MΩ Min.
- 3000 Cycles mating cycles
Applications
- Mobile phones and tablets
- Industrial handheld terminals
- POS and payment terminals
- Automotive telematics
Drawing & Dimensions

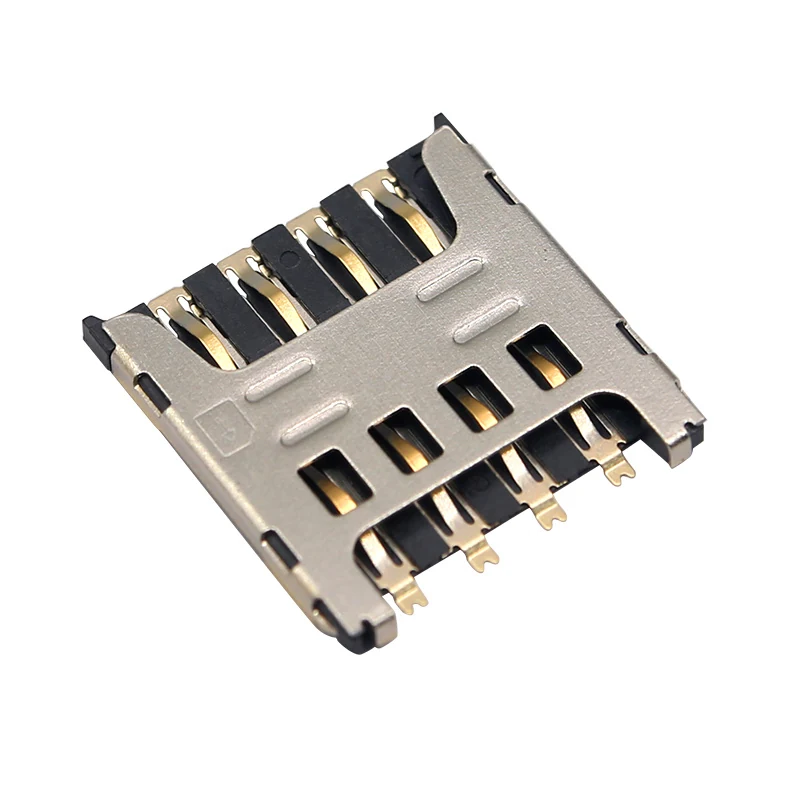

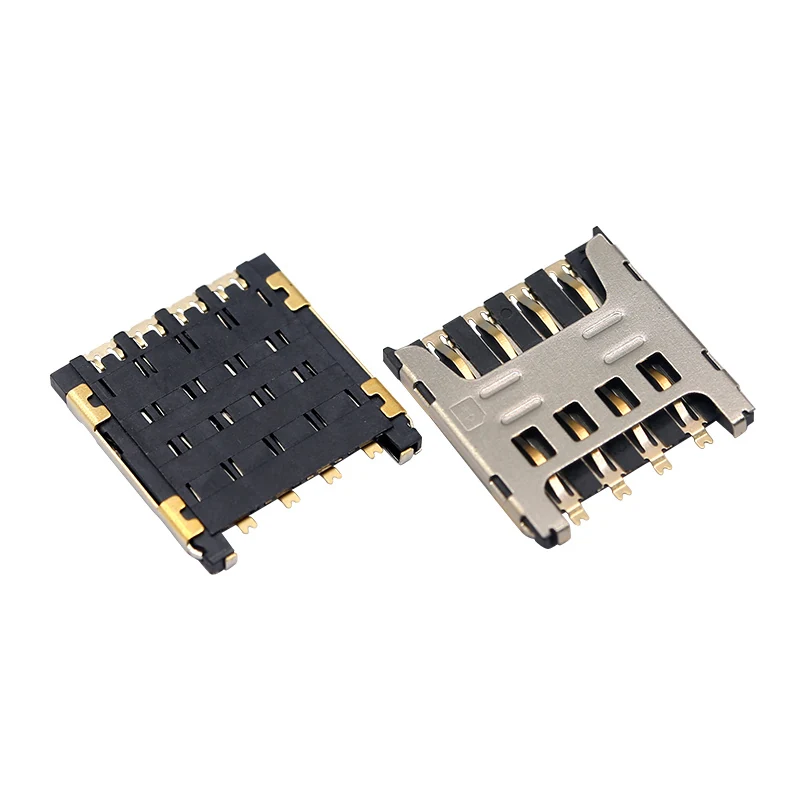

GSC-MSM-0016 is a Micro SIM card connector. The housing is Hi-Temp Temperature, UL94V-0, Black; the contact system is Copper Alloy; the shell is Stainless steel. Electrically it is rated 0.5 AMP, with a withstanding voltage of 500V AC/Minute, over an operating temperature range of -25°C to +85°C. Mechanically it offers mating durability of 3000 Cycles, insulation resistance 1000MΩ Min., contact resistance 50mΩ Max. Typical applications include Mobile phones and tablets, Industrial handheld terminals, POS and payment terminals, and Automotive telematics.
| Housing | Hi-Temp Temperature, UL94V-0, Black |
| Terminal | Copper Alloy |
| Shell | Stainless steel |
| Durability | 3000 Cycles |
| Temperature | -25°C to +85°C |
| Current Rating | 0.5 AMP |
| Insulation Resistance | 1000MΩ Min. |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 500V AC/Minute |
