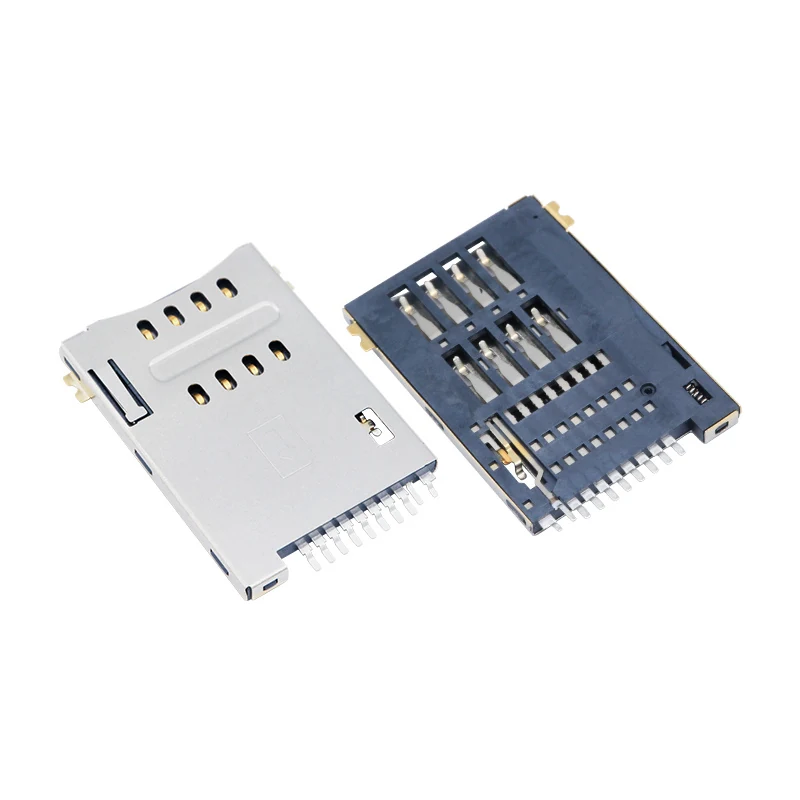

1.80H Push-Push SIM Card Connector – GSC-SIM-0005

1.80H Push-Push SIM Card Connector – GSC-SIM-0005

Tags:
#Memory Card Connector#SIM Card
Share:LinkedInFacebookXWhatsAppEmail

1.80H Push-Push SIM Card Connector, Lcp S475 housing, C5191-H contacts, -40°C to +85°C. GSCONN part GSC-SIM-0005.

Request a Quote →

Technical Specifications

TypePush-Push
HousingLcp S475
TerminalC5191-H
ShellSUS304-H
Temperature-40°C to +85°C
Current Rating0.5 A
Insulation Resistance1000MΩ Min.
Contact Resistance100mΩ Max.
Withstand Voltage500V DC/Minute

Key Features

  • Push-Push card insertion
  • Lcp S475 housing
  • C5191-H contact system
  • SUS304-H shell
  • Rated 0.5 A
  • 500V DC/Minute dielectric withstanding voltage
  • Contact resistance 100mΩ Max.
  • Insulation resistance 1000MΩ Min.

Applications

  • Mobile phones and tablets
  • Industrial handheld terminals
  • POS and payment terminals
  • Automotive telematics
Drawing & Dimensions
1.80H Push-Push SIM Card Connector – GSC-SIM-0005 drawing

GSC-SIM-0005 is a Push-Push connector. The housing is Lcp S475; the contact system is C5191-H; the shell is SUS304-H. Electrically it is rated 0.5 A, with a withstanding voltage of 500V DC/Minute, over an operating temperature range of -40°C to +85°C. Mechanically it offers insulation resistance 1000MΩ Min., contact resistance 100mΩ Max. Typical applications include Mobile phones and tablets, Industrial handheld terminals, POS and payment terminals, and Automotive telematics.

Type Push-Push
Housing Lcp S475
Terminal C5191-H
Shell SUS304-H
Temperature -40°C to +85°C
Current Rating 0.5 A
Insulation Resistance 1000MΩ Min.
Contact Resistance 100mΩ Max.
Withstand Voltage 500V DC/Minute
