What is the operating temperature range?

Operates from -55°C to +85°C.

Is this connector waterproof?

No, this connector is not rated for dust or water ingress protection.

What data speed does it support?

Supports up to 10Gbps data transfer.

What certifications does this product have?

Certified CE, RoHS, REACH for international compliance.

10Gbps USB 3.1 Raised Double-Layer Connector – C071365

Name: USB 3.1 Double-Layer 90 Degree Connector - C071365 | GSCONN
Brand: GSCONN

USB 3.110GbpsBoard-Mount

Tags:

#10Gbps #Double-Layer #Raised #USB 3.1 #USB Connector

Designed for OEM board-mount integration, this 3.1 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact...

Request a Quote →

3.1 Standard interface10Gbps Gen 2 transfer

Double-layer PCB designTwo-row PCB pin footprint

90° exit angleStandard cable exit

10Gbps SuperSpeed+ capableStandardized 0.1" pin pitch

Technical Specifications

USB Version	USB 3.1
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Double-Layer
Orientation	90 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	U2 contacts: Phosphor Bronze, half gold-tin plated; U3 contacts: Brass, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	10Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.1 Standard connector supporting standard 3.1 data protocols
Double-layer PCB design with 90° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Raised contact geometry optimized for specific mating and retention requirements
Compact through-hole PCB footprint supports high-density board layouts
Compatible with 3D printers, CNC controllers, and maker platforms

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

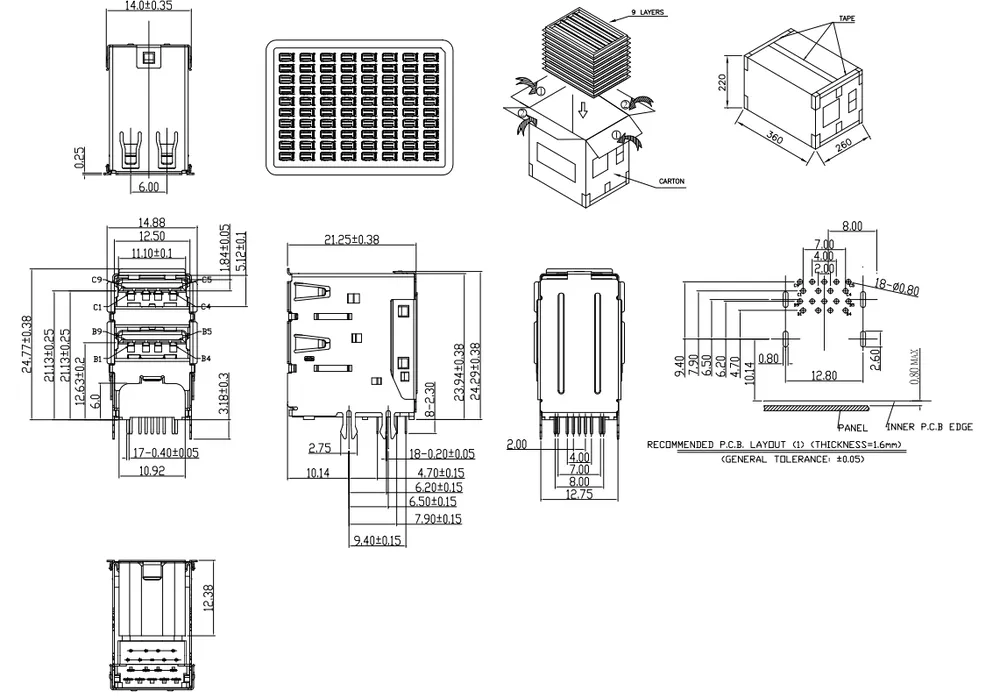

Product Drawing

Designed for OEM board-mount integration, this 3.1 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact configuration supports full USB 3.1 signaling requirements for data and power delivery. Polarized housing design ensures correct orientation during cable mating, reducing field service risk. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
