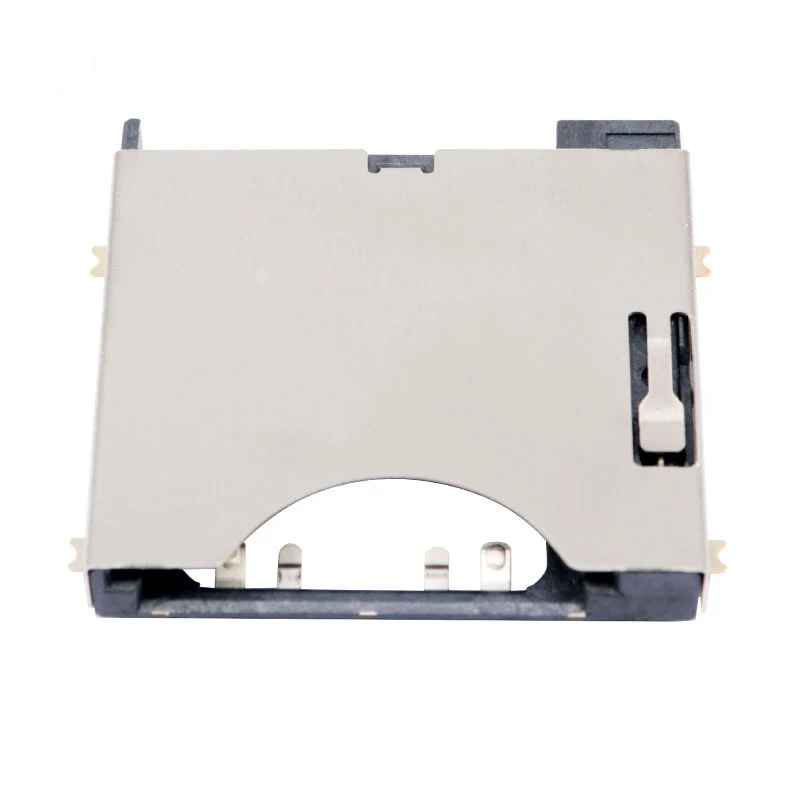

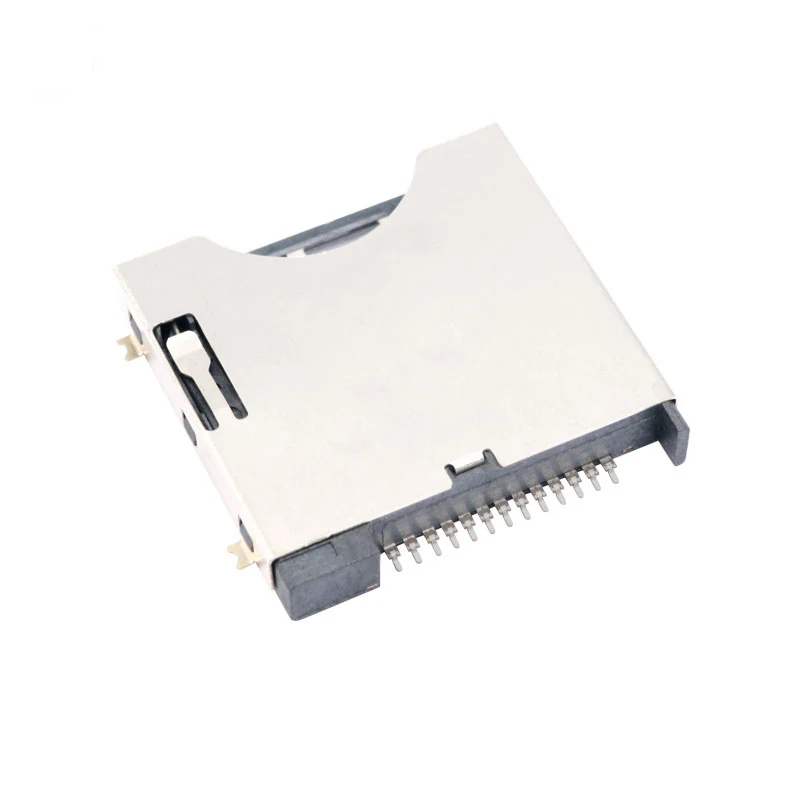

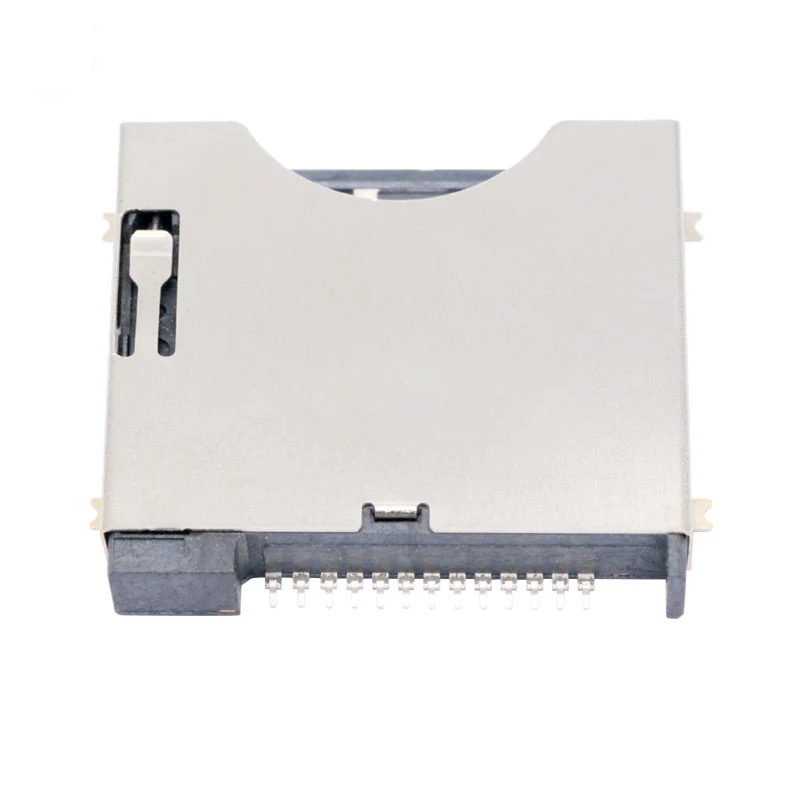

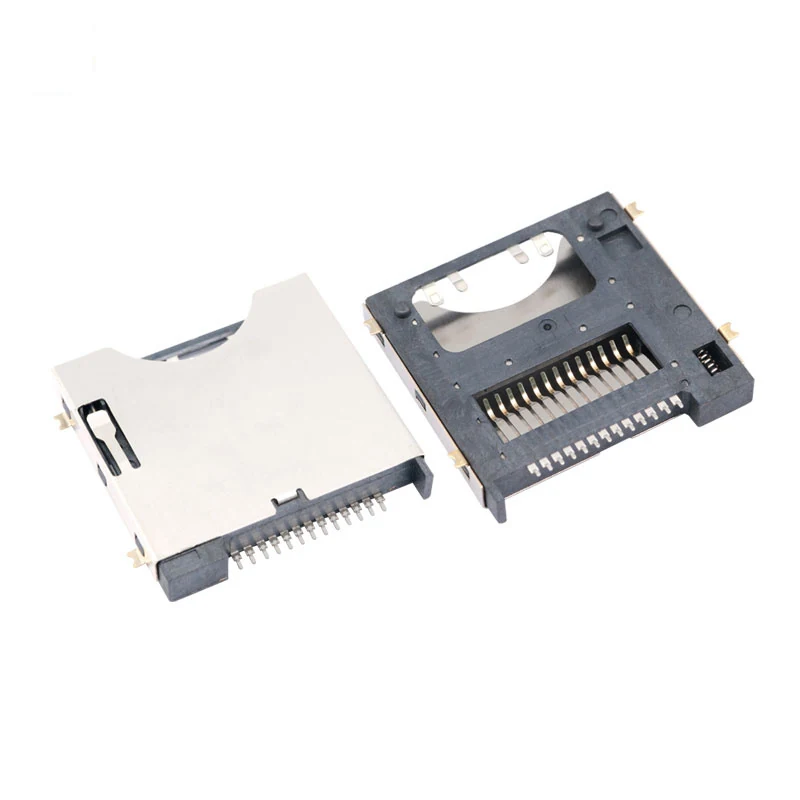

13pin CF type A CARD PUSH FEMALE 3.75 WITH LOCATING PEG CONNECTOR SMT – GSC-SDC-0014

13pin CF type A CARD PUSH FEMALE 3.75 WITH LOCATING PEG CONNECTOR SMT – GSC-SDC-0014

SMT
Tags:
#13 Pin#Memory Card Connector#Push-Push#SD Card#SMT
Share:LinkedInFacebookXWhatsAppEmail

13pin CF type A CARD PUSH PUSH FEMALE 3.75 WITH LOCATING PEG CONNECTOR SMT, 13 contacts, Push-Push insertion. GSCONN part GSC-SDC-0014.

Request a Quote →

Technical Specifications

Number of Contacts13
MountingSMT
Card InsertionPush-Push

Key Features

  • 13 contacts
  • SMT termination
  • Push-Push card insertion

Applications

  • Consumer electronics
  • Industrial data loggers
  • Dash cams and surveillance
  • POS terminals
Drawing & Dimensions
13pin CF type A CARD PUSH FEMALE 3.75 WITH LOCATING PEG CONNECTOR SMT – GSC-SDC-0014 drawing

GSC-SDC-0014 is a 13-contact SD card connector with Push-Push card insertion, using SMT mounting. Typical applications include Consumer electronics, Industrial data loggers, Dash cams and surveillance, and POS terminals.

Number of Contacts 13
Mounting SMT
Card Insertion Push-Push
