Technical Specifications
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Current Rating | 3A |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Contact Resistance | 40mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
Key Features
- 16 contacts
- Type C interface
- LCP housing
- High conductivity copper contact system
- SUS304 shell
- SUS301 mid plate
- Rated 3A
- 100V AC/Minute dielectric withstanding voltage
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices
Drawing & Dimensions

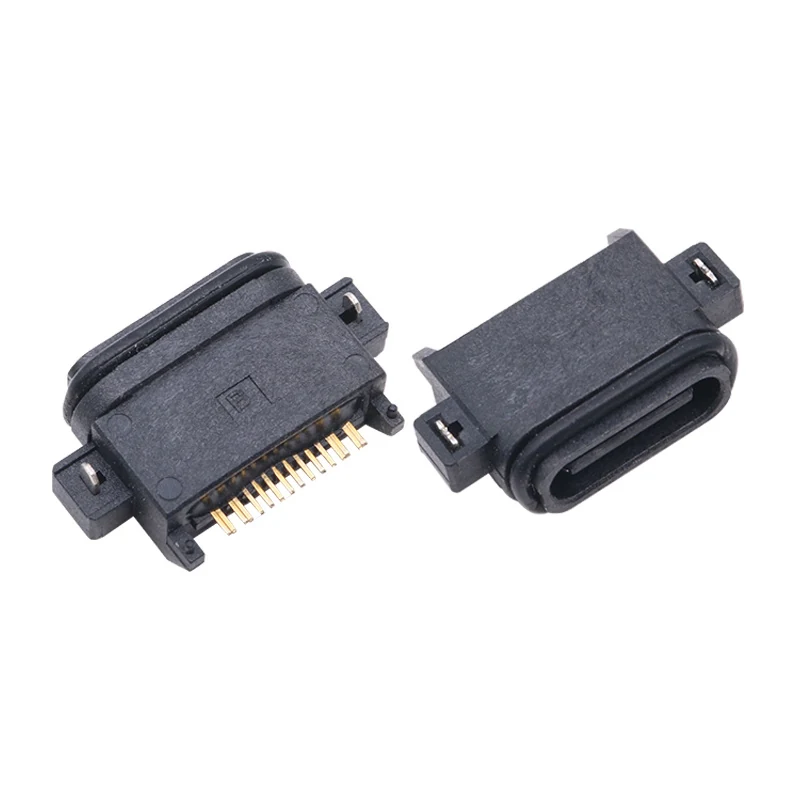

GSC-TYP-0062 is a 16-contact Type C connector. The housing is LCP; the contact system is High conductivity copper; the shell is SUS304. Electrically it is rated 3A, with a withstanding voltage of 100V AC/Minute, over an operating temperature range of -30°C to +85°C. Mechanically it offers mating durability of 10000, contact resistance 40mΩ Max. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Current Rating | 3A |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Contact Resistance | 40mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
