Technical Specifications
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| PCB mount type | Mid-Mount CONN |
| Housing | LCP |
| TERMINAL | C2680 |
| Shell | SUS 304 |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 6A |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Dielectric Voltage | 100V AC/Minute |
Key Features
- 16 contacts
- Type C interface
- Mid-Mount CONN termination
- LCP housing
- C2680 contact system
- SUS 304 shell
- SUS301 mid plate
- Rated 6A
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices

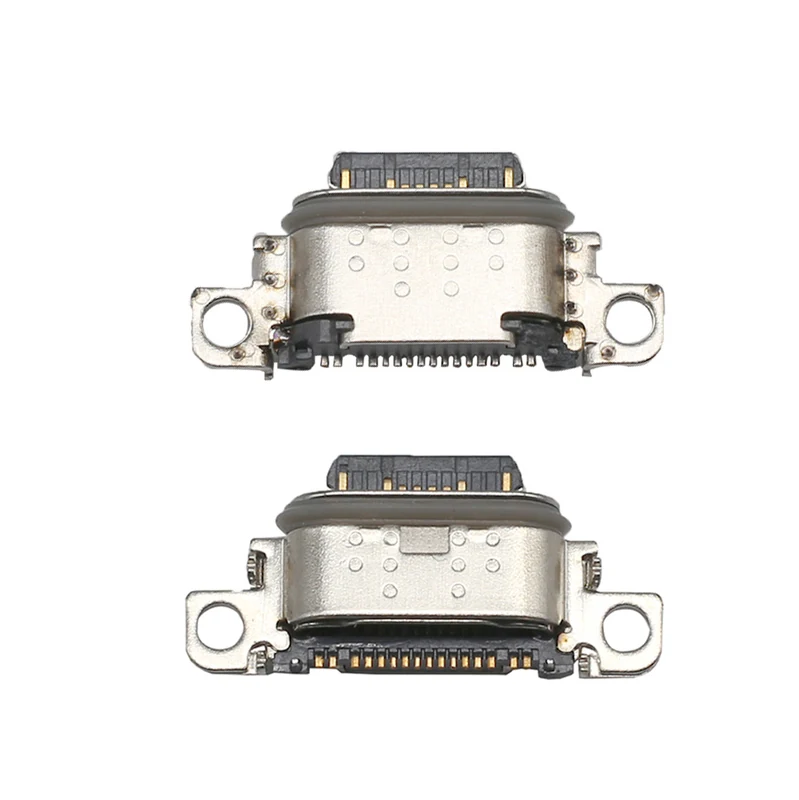

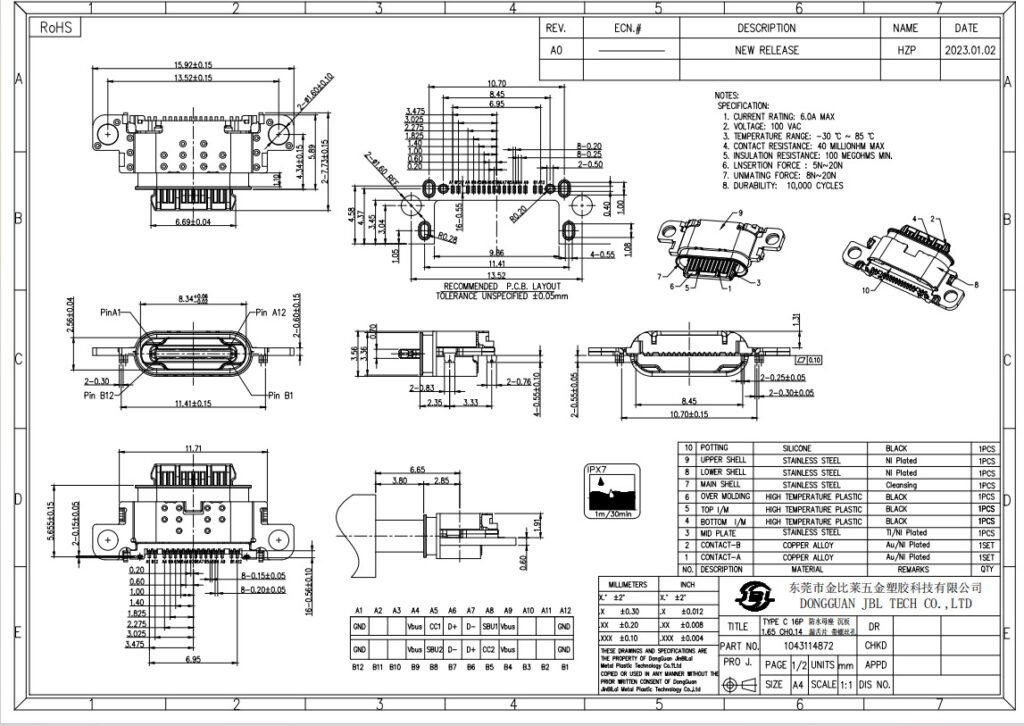

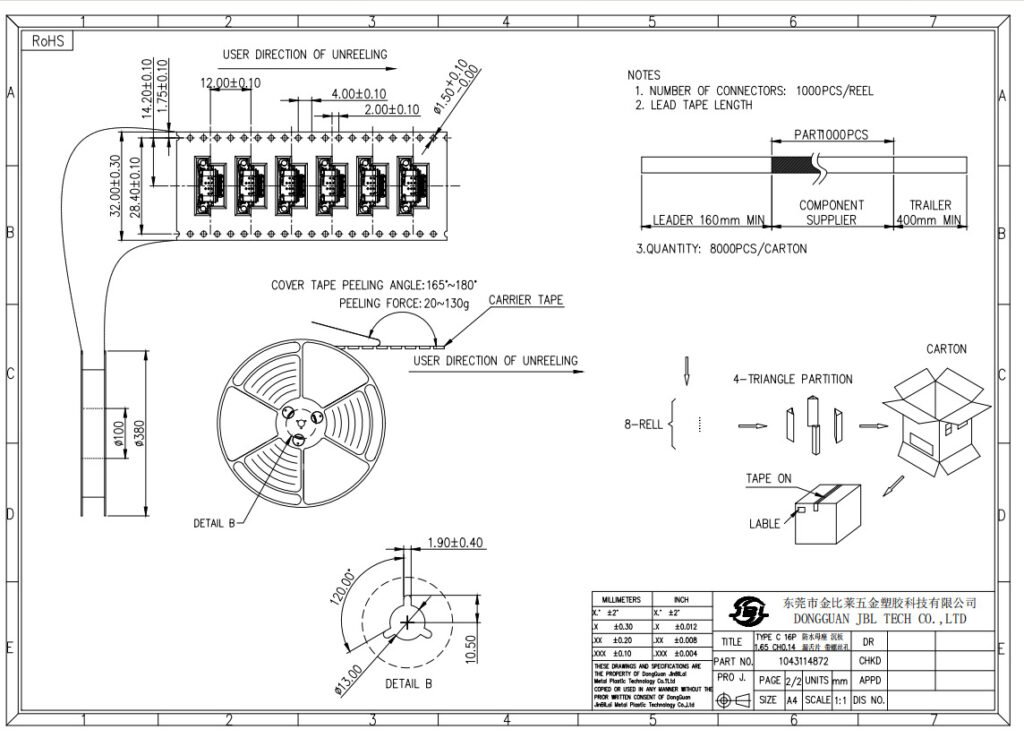

Drawing & Dimensions
GSC-TYP-0034 is a 16-contact Type C connector, using Mid-Mount CONN mounting. The housing is LCP; the contact system is C2680; the shell is SUS 304. Electrically it is rated 6A, with a withstanding voltage of 100V AC/Minute, over an operating temperature range of -30°C to +85°C. Mechanically it offers mating durability of 10000. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| PCB mount type | Mid-Mount CONN |
| Housing | LCP |
| TERMINAL | C2680 |
| Shell | SUS 304 |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 6A |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Dielectric Voltage | 100V AC/Minute |
