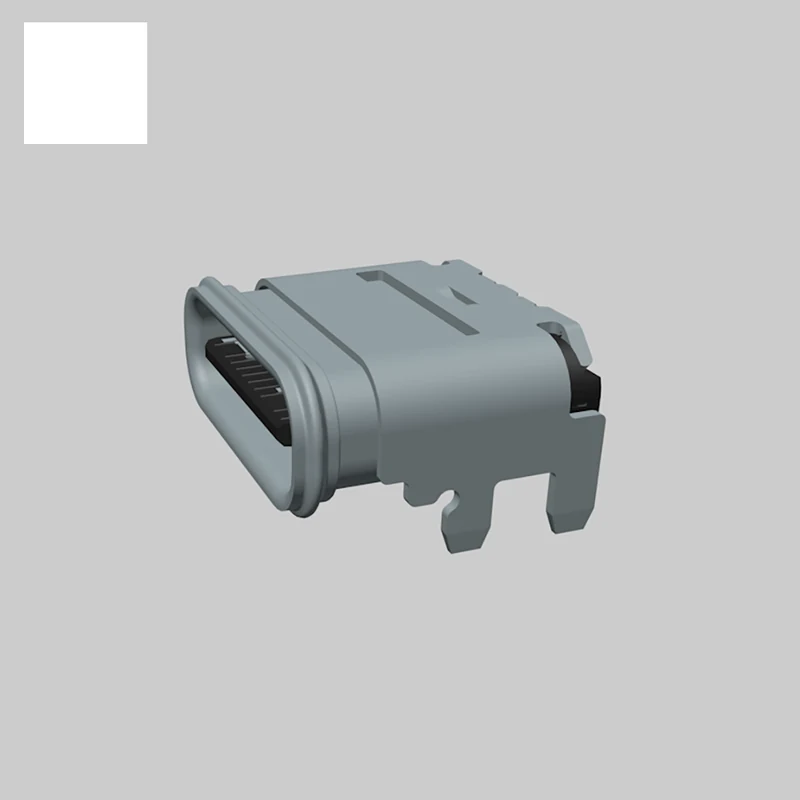

Technical Specifications
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| PCB mount type | Top-Mount CONN |
| Plastic | PA46 |
| TERMINAL | C7025 |
| Shell | SUS 304 |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 5A |
| Mating Cycles | 10000 |
| Temperature | -40°C to +85°C |
| Dielectric Voltage | 100V AC/Minute |
Key Features
- 16 contacts
- Type C interface
- Top-Mount CONN termination
- C7025 contact system
- SUS 304 shell
- SUS301 mid plate
- Rated 5A
- 100V AC/Minute dielectric withstanding voltage
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices

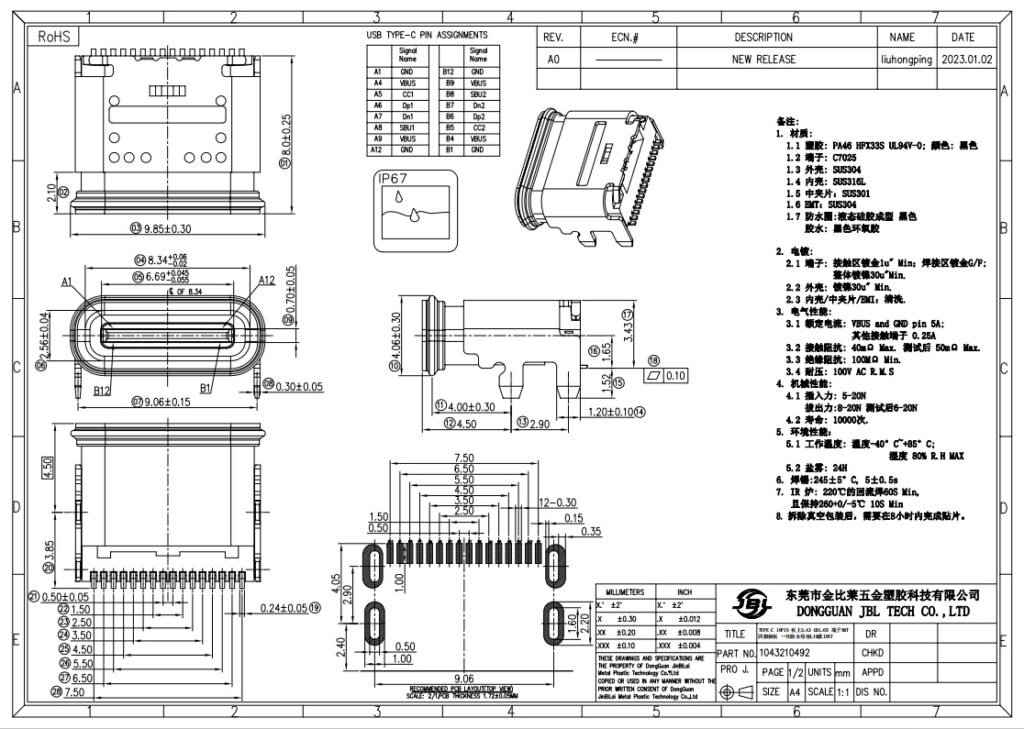

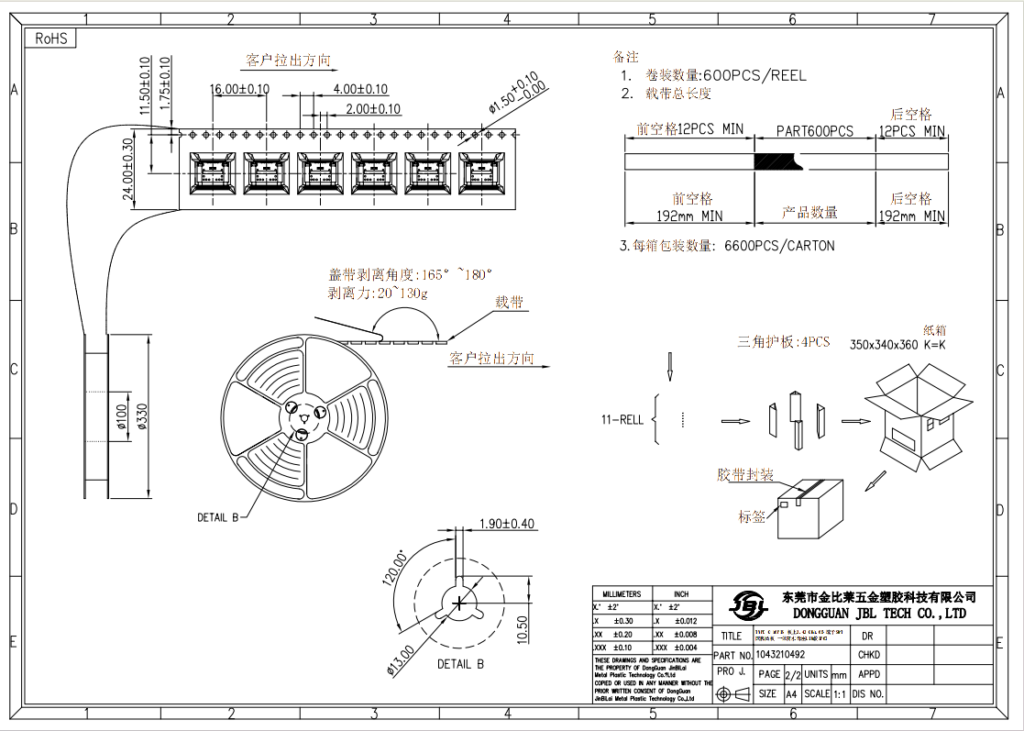

Drawing & Dimensions
GSC-TYP-0082 is a 16-contact Type C connector, using Top-Mount CONN mounting. The contact system is C7025; the shell is SUS 304. Electrically it is rated 5A, with a withstanding voltage of 100V AC/Minute, over an operating temperature range of -40°C to +85°C. Mechanically it offers mating durability of 10000. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| PCB mount type | Top-Mount CONN |
| Plastic | PA46 |
| TERMINAL | C7025 |
| Shell | SUS 304 |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 5A |
| Mating Cycles | 10000 |
| Temperature | -40°C to +85°C |
| Dielectric Voltage | 100V AC/Minute |
