Technical Specifications
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| PCB mount type | VERTICAL TYPE |
| Housing | LCP |
| Contact | C7025 |
| Shell | ZINC ALLOY |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 3A |
| Mating Cycles | 10000 |
| Temperature | -25°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
Key Features
- 16 contacts
- Type C interface
- VERTICAL TYPE termination
- LCP housing
- C7025 contact system
- ZINC ALLOY shell
- SUS301 mid plate
- Rated 3A
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices
Drawing & Dimensions

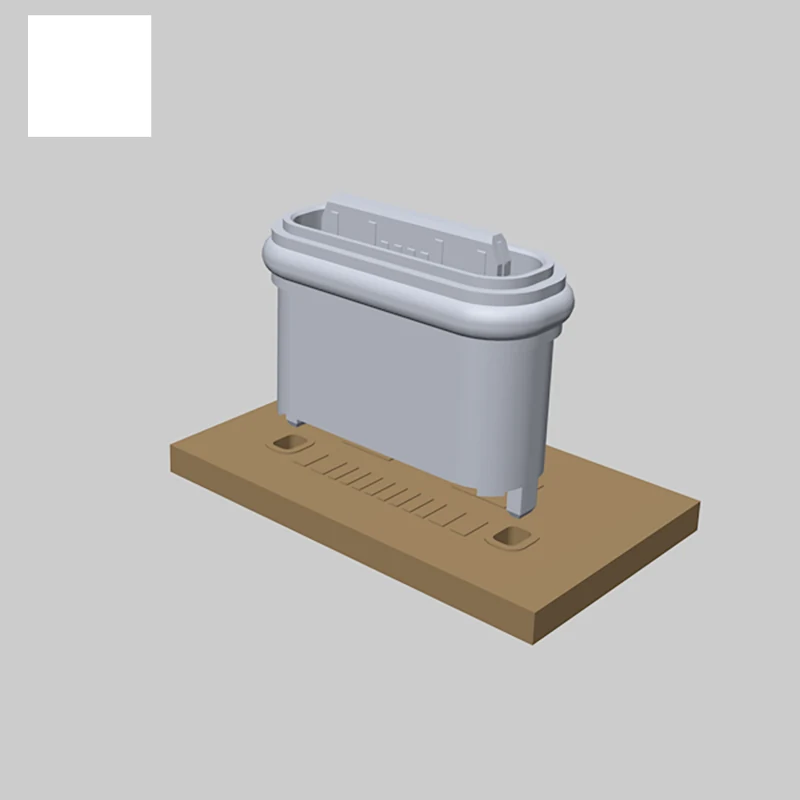

GSC-TYP-0031 is a 16-contact Type C connector, using VERTICAL TYPE mounting. The housing is LCP; the contact system is C7025; the shell is ZINC ALLOY. Electrically it is rated 3A, with a withstanding voltage of 100V AC/Minute, over an operating temperature range of -25°C to +85°C. Mechanically it offers mating durability of 10000, contact resistance 50mΩ Max. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| PCB mount type | VERTICAL TYPE |
| Housing | LCP |
| Contact | C7025 |
| Shell | ZINC ALLOY |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 3A |
| Mating Cycles | 10000 |
| Temperature | -25°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
