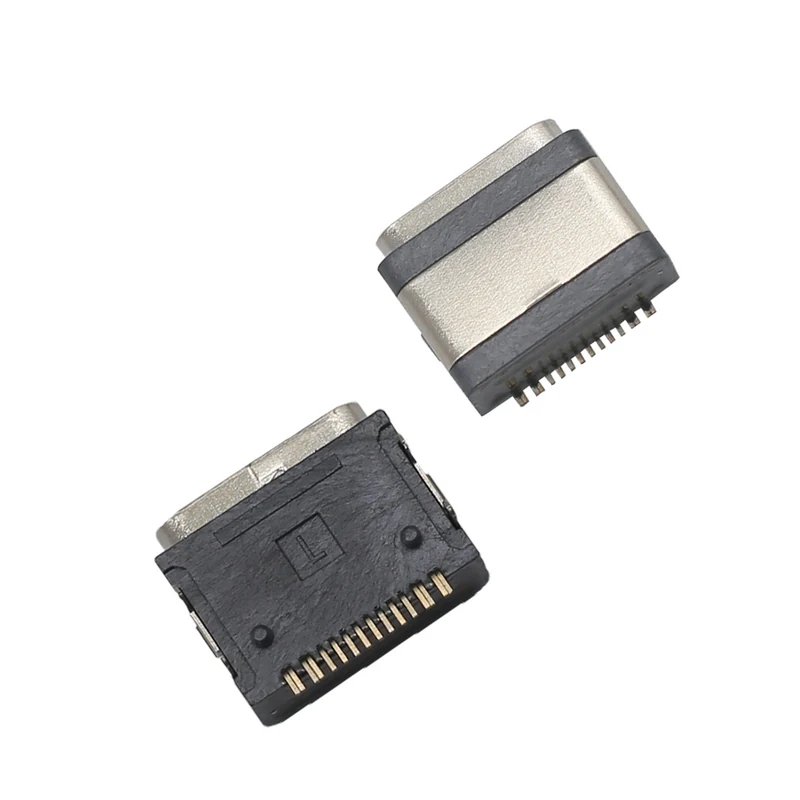

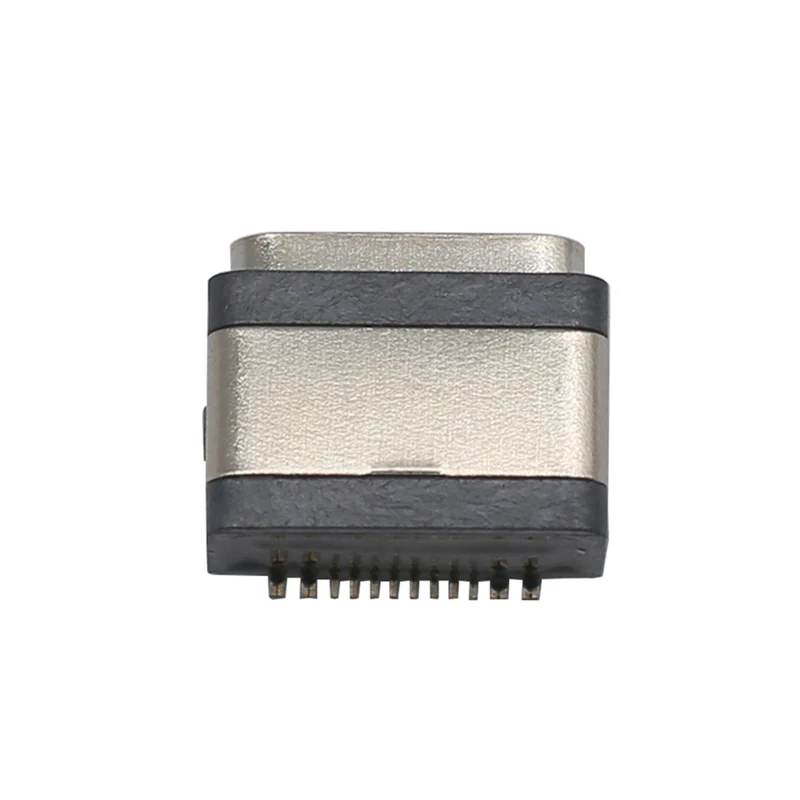

Technical Specifications
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| PCB mount type | Top-Mount CONN |
| Housing | LCP |
| Terminal | C2680 |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Locating Peg | With locating peg |
| Current Rating | 3A |
| Mating Cycles | 10000 |
| Temperature | -40°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
Key Features
- 16 contacts
- Type C interface
- Top-Mount CONN termination
- LCP housing
- C2680 contact system
- SUS304 shell
- SUS301 mid plate
- Rated 3A
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices

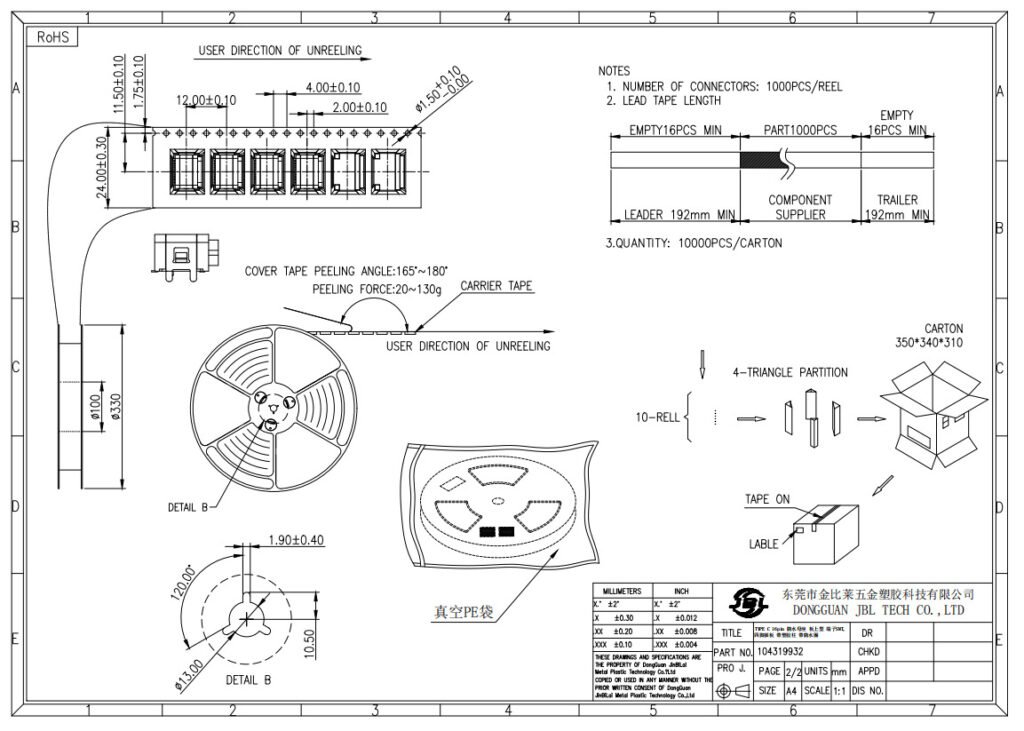

Drawing & Dimensions
GSC-TYP-0081 is a 16-contact Type C connector, using Top-Mount CONN mounting. The housing is LCP; the contact system is C2680; the shell is SUS304. Electrically it is rated 3A, with a withstanding voltage of 100V AC/Minute, over an operating temperature range of -40°C to +85°C. Mechanically it offers mating durability of 10000, contact resistance 50mΩ Max. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| PCB mount type | Top-Mount CONN |
| Housing | LCP |
| Terminal | C2680 |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Locating Peg | With locating peg |
| Current Rating | 3A |
| Mating Cycles | 10000 |
| Temperature | -40°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
