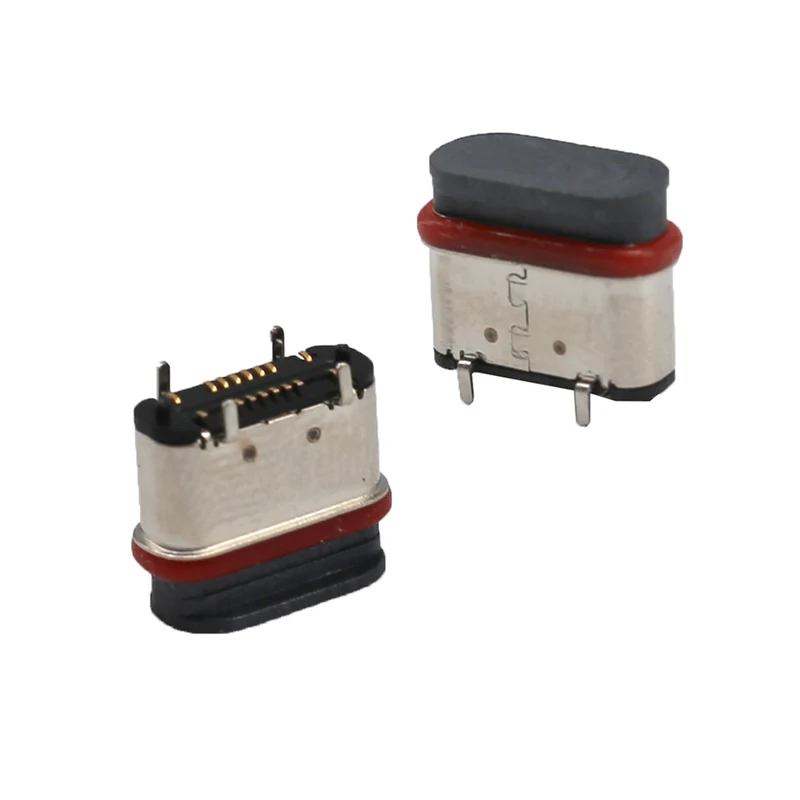

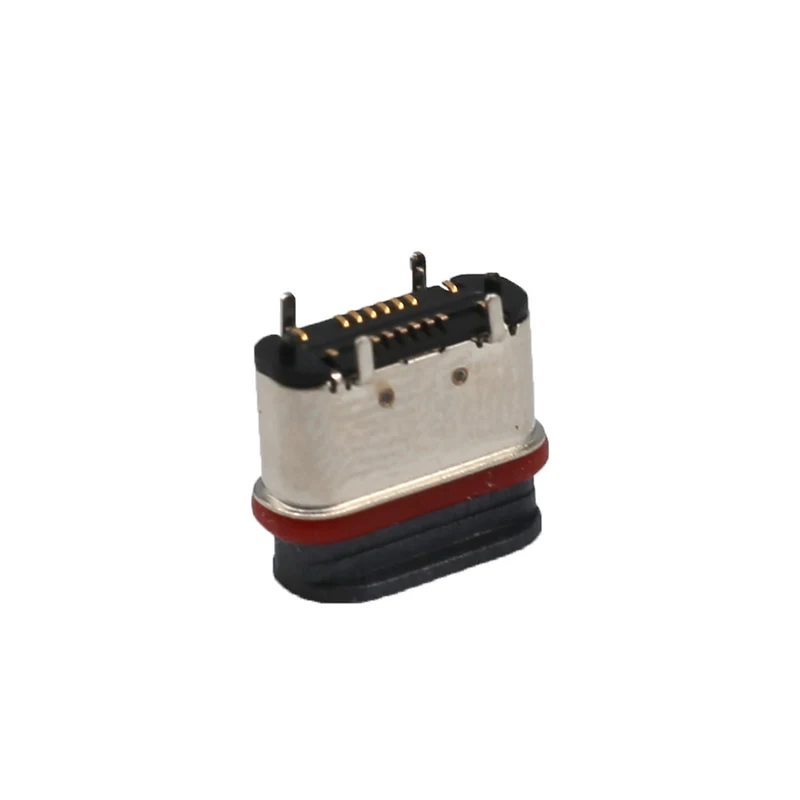

Technical Specifications
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| PCB mount type | VERTICAL TYPE |
| Housing | LCP |
| Contact | Copper alloy |
| Shell | Stainless steel |
| Mid Plate | Stainless steel |
| Locating Peg | Without locating peg |
| Current Rating | 5A For Pin(A4,A9,B4,B9) 1.25A For Pin(B5) 0.25A For Others Pin |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
Key Features
- 16 contacts
- Type C interface
- VERTICAL TYPE termination
- LCP housing
- Copper alloy contact system
- Stainless steel shell
- Stainless steel mid plate
- Rated 5A For Pin(A4,A9,B4,B9) 1.25A For Pin(B5) 0.25A For Others Pin
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices

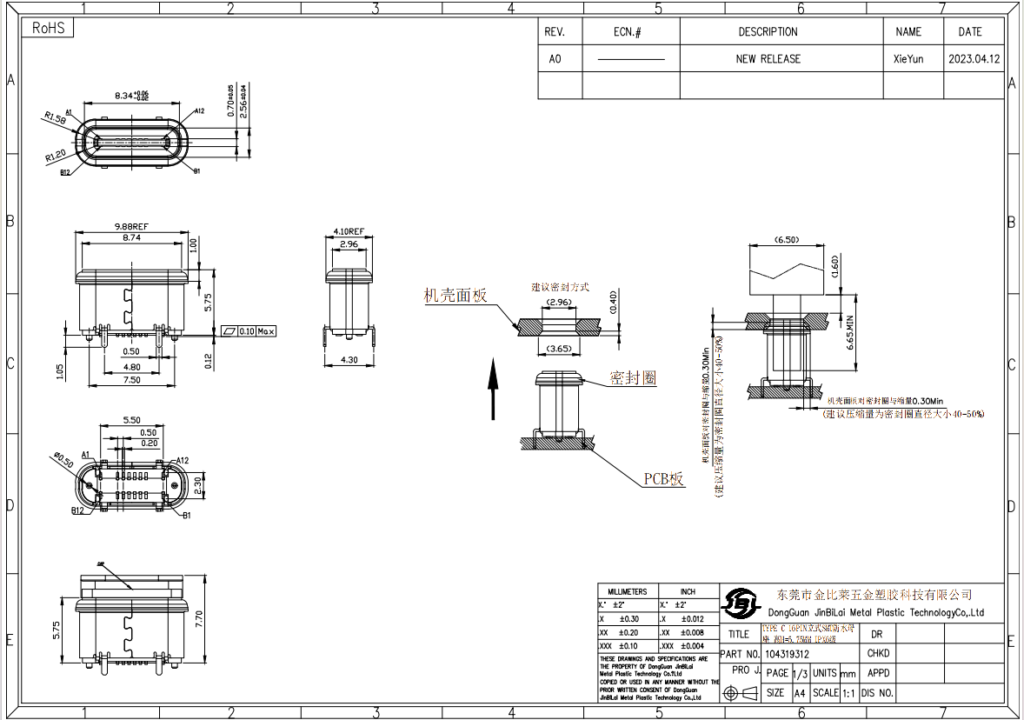

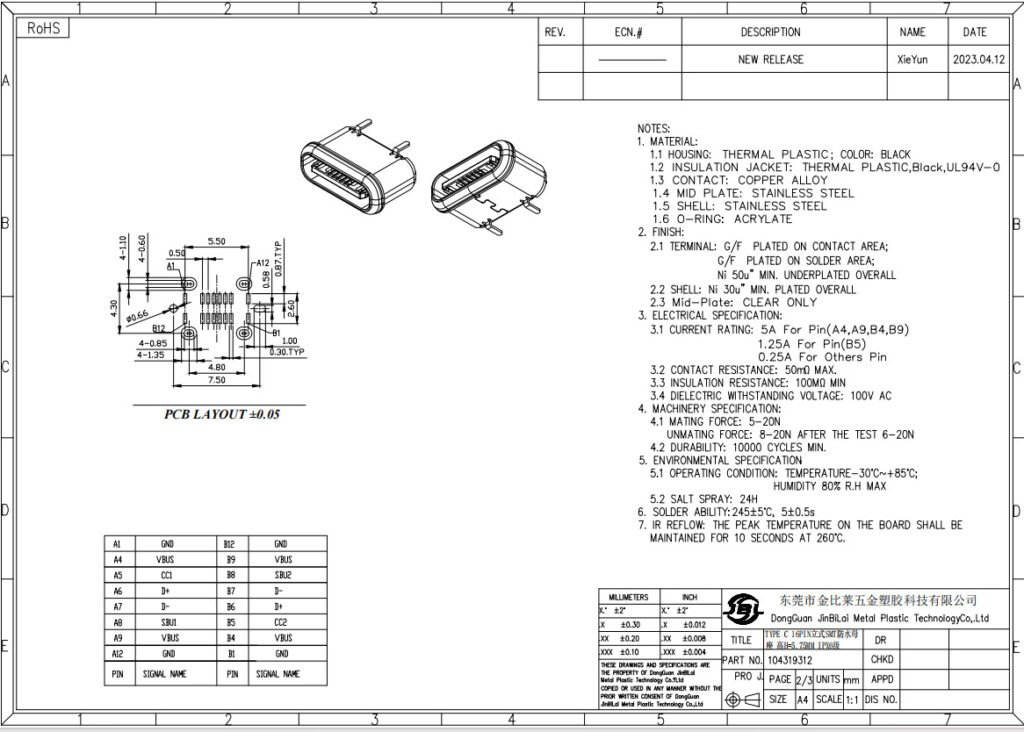

Drawing & Dimensions
GSC-TYP-0080 is a 16-contact Type C connector, using VERTICAL TYPE mounting. The housing is LCP; the contact system is Copper alloy; the shell is Stainless steel. Electrically it is rated 5A For Pin(A4,A9,B4,B9) 1.25A For Pin(B5) 0.25A For Others Pin, with a withstanding voltage of 100V AC/Minute, over an operating temperature range of -30°C to +85°C. Mechanically it offers mating durability of 10000, contact resistance 50mΩ Max. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Interface | C |
| Number of contacts | 16PIN |
| PCB mount type | VERTICAL TYPE |
| Housing | LCP |
| Contact | Copper alloy |
| Shell | Stainless steel |
| Mid Plate | Stainless steel |
| Locating Peg | Without locating peg |
| Current Rating | 5A For Pin(A4,A9,B4,B9) 1.25A For Pin(B5) 0.25A For Others Pin |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
