Technical Specifications
| Connector style | Type C |
| Interface | C |
| Number of contacts | 24PIN |
| PCB mount type | VERTICAL TYPE |
| Plastic | PA46 |
| Contact | C18400 |
| Shell | SUS 304 |
| Inner Shell | SUS316 |
| Locating Peg | Without locating peg |
| Current Rating | 5A |
| Mating Cycles | 10000 |
| Temperature | -40°C to +85°C |
| Dielectric Voltage | 100V AC/Minute |
Key Features
- 24 contacts
- Type C interface
- VERTICAL TYPE termination
- C18400 contact system
- SUS 304 shell
- Rated 5A
- 100V AC/Minute dielectric withstanding voltage
- 10000 mating cycles
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices

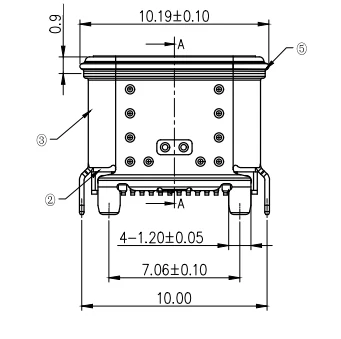

Drawing & Dimensions
GSC-TYP-0016 is a 24-contact Type C connector, using VERTICAL TYPE mounting. The contact system is C18400; the shell is SUS 304. Electrically it is rated 5A, with a withstanding voltage of 100V AC/Minute, over an operating temperature range of -40°C to +85°C. Mechanically it offers mating durability of 10000. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Interface | C |
| Number of contacts | 24PIN |
| PCB mount type | VERTICAL TYPE |
| Plastic | PA46 |
| Contact | C18400 |
| Shell | SUS 304 |
| Inner Shell | SUS316 |
| Locating Peg | Without locating peg |
| Current Rating | 5A |
| Mating Cycles | 10000 |
| Temperature | -40°C to +85°C |
| Dielectric Voltage | 100V AC/Minute |
