Technical Specifications
| Connector style | Type C |
| Number of contacts | 24PIN |
| PCB mount type | Mid-Mount CONN |
| Plastic | LCP |
| TERMINAL | C7025 |
| Shell | SUS 304 |
| Mid Plate | SUS301 |
| Current Rating | 5A |
| Mating Cycles | 10000 |
| Temperature | -40°C to +80°C |
Key Features
- 24 contacts
- Type C interface
- Mid-Mount CONN termination
- C7025 contact system
- SUS 304 shell
- SUS301 mid plate
- Rated 5A
- 10000 mating cycles
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices
Drawing & Dimensions

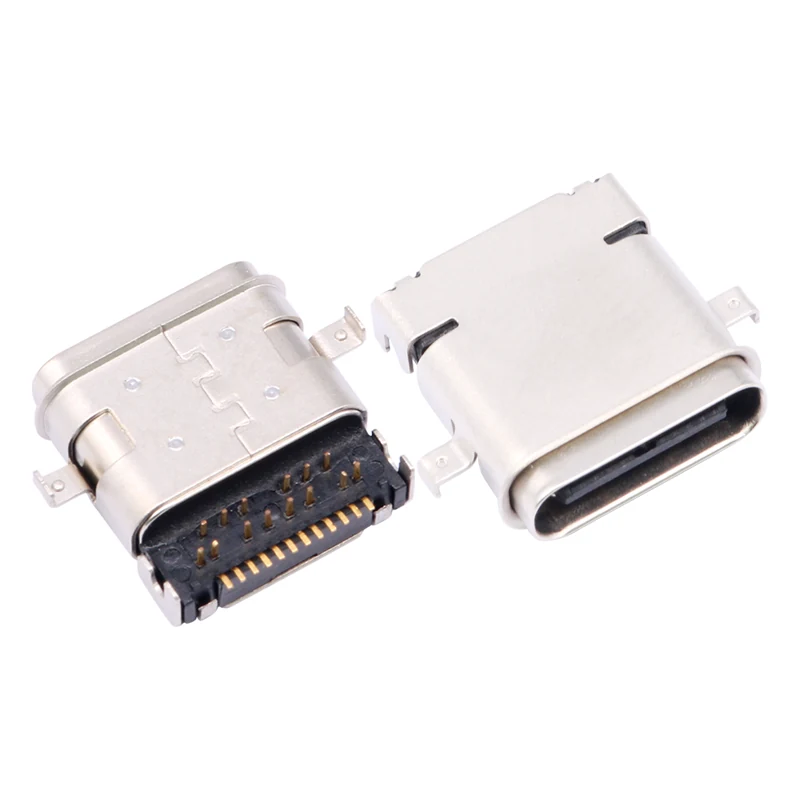

GSC-TYP-0019 is a 24-contact Type C connector, using Mid-Mount CONN mounting. The contact system is C7025; the shell is SUS 304. Electrically it is rated 5A, over an operating temperature range of -40°C to +80°C. Mechanically it offers mating durability of 10000. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Number of contacts | 24PIN |
| PCB mount type | Mid-Mount CONN |
| Plastic | LCP |
| TERMINAL | C7025 |
| Shell | SUS 304 |
| Mid Plate | SUS301 |
| Current Rating | 5A |
| Mating Cycles | 10000 |
| Temperature | -40°C to +80°C |
