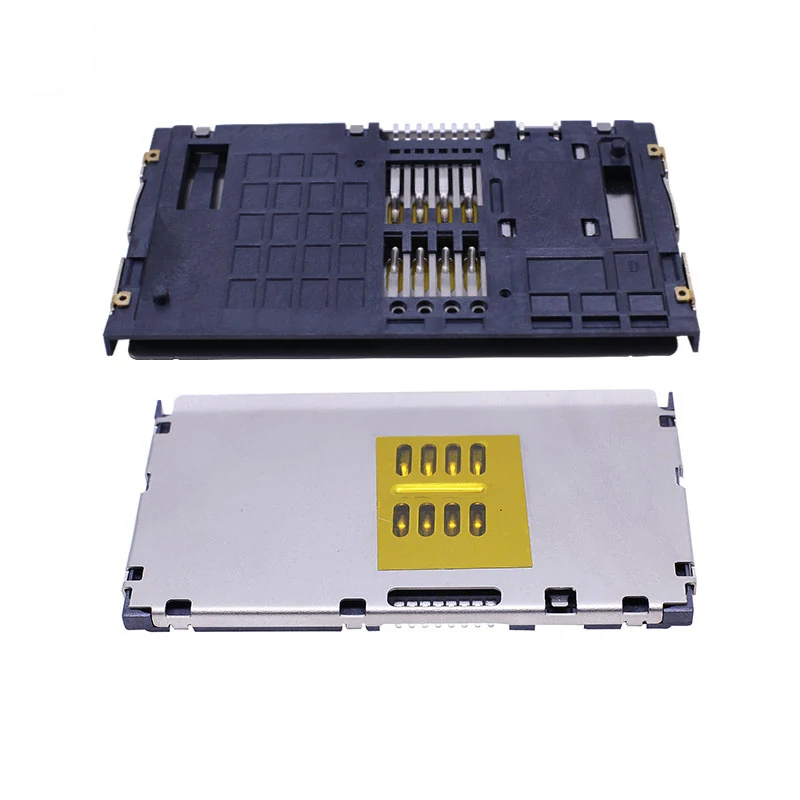

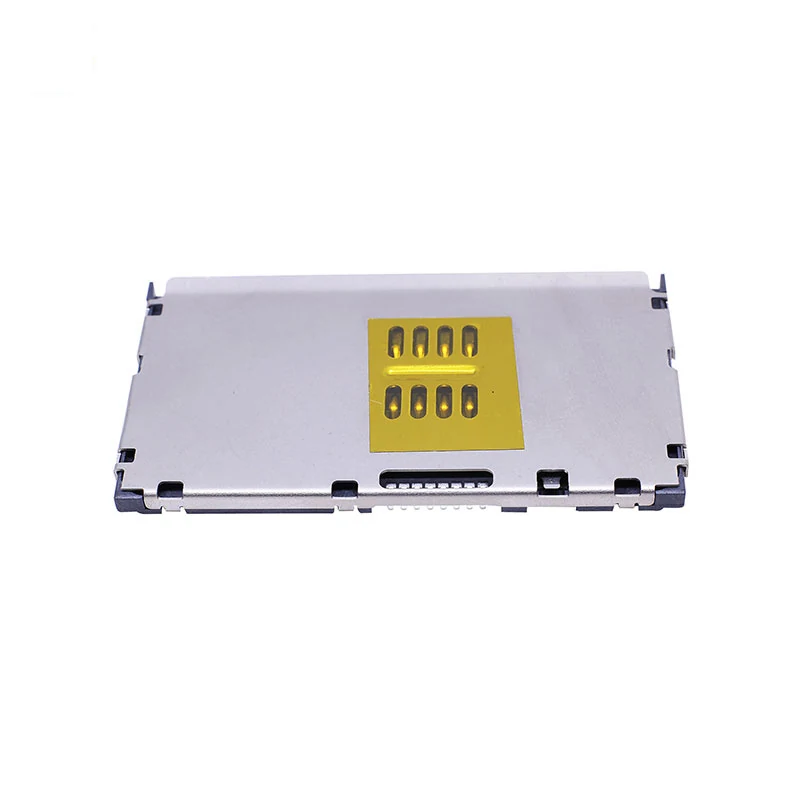

3.45H SMART CARD SOCKET CONNECTOR – GSC-SMC-0001

3.45H SMART CARD SOCKET CONNECTOR – GSC-SMC-0001

Tags:
#Memory Card Connector#Smart Card
Share:LinkedInFacebookXWhatsAppEmail

3.45H SMART CARD SOCKET CONNECTOR, Hi-Temp Temperature, UL94V-0, Black housing, Copper Alloy contacts, -25°C to +85°C. GSCONN part GSC-SMC-0001.

Request a Quote →

Technical Specifications

TypePush-push
HousingHi-Temp Temperature, UL94V-0, Black
TerminalCopper Alloy
ShellStainless steel
Mating Cycles10000 Insertions
Temperature-25°C to +85°C
Current Rating0.5 AMP
Insulation Resistance500MΩ Min.
Contact Resistance100mΩ Max.
Dielectric Voltage500V AC/Minute

Key Features

  • Push-push card insertion
  • Hi-Temp Temperature, UL94V-0, Black
  • Copper Alloy contact system
  • Stainless steel shell
  • Rated 0.5 AMP
  • 500V AC/Minute dielectric withstanding voltage
  • Contact resistance 100mΩ Max.
  • Insulation resistance 500MΩ Min.

Applications

  • Payment terminals
  • Access control systems
  • Industrial identification
Drawing & Dimensions
3.45H SMART CARD SOCKET CONNECTOR – GSC-SMC-0001 drawing

GSC-SMC-0001 is a Push-push connector. The housing is Hi-Temp Temperature, UL94V-0, Black; the contact system is Copper Alloy; the shell is Stainless steel. Electrically it is rated 0.5 AMP, with a withstanding voltage of 500V AC/Minute, over an operating temperature range of -25°C to +85°C. Mechanically it offers mating durability of 10000 Insertions, insulation resistance 500MΩ Min., contact resistance 100mΩ Max. Typical applications include Payment terminals, Access control systems, and Industrial identification.

Type Push-push
Housing Hi-Temp Temperature, UL94V-0, Black
Terminal Copper Alloy
Shell Stainless steel
Mating Cycles 10000 Insertions
Temperature -25°C to +85°C
Current Rating 0.5 AMP
Insulation Resistance 500MΩ Min.
Contact Resistance 100mΩ Max.
Dielectric Voltage 500V AC/Minute
