Technical Specifications
| Connector style | Type C |
| Interface | C |
| Gender | female |
| Number of contacts | 6PIN |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Locating Peg | With locating peg |
| Current Rating | 3A |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Contact Resistance | 30mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
Key Features
- 6 contacts
- Type C interface
- female connector
- LCP housing
- High conductivity copper contact system
- SUS304 shell
- SUS301 mid plate
- Rated 3A
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices
Drawing & Dimensions

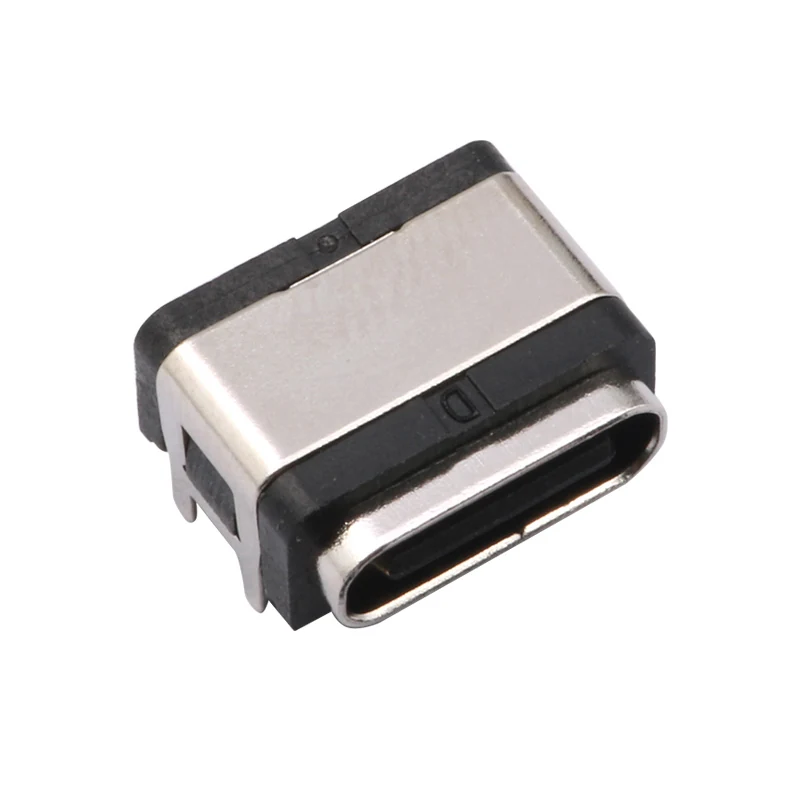

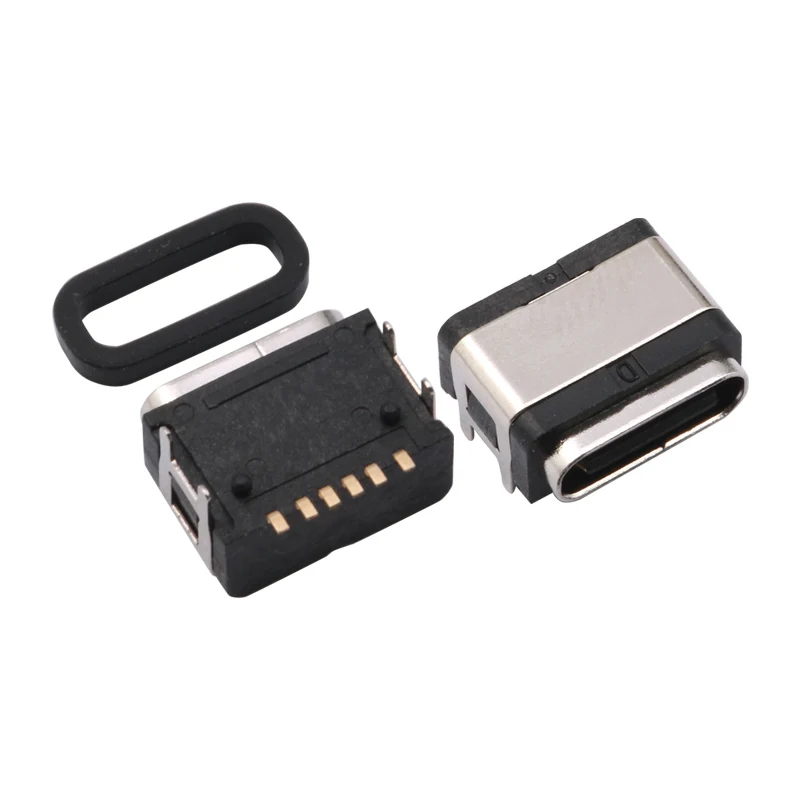

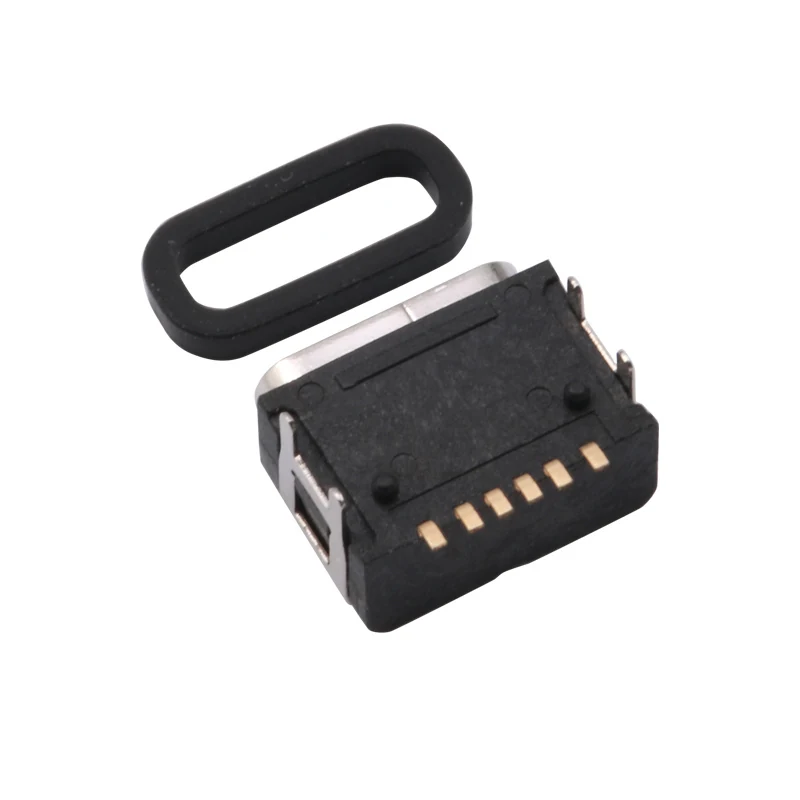

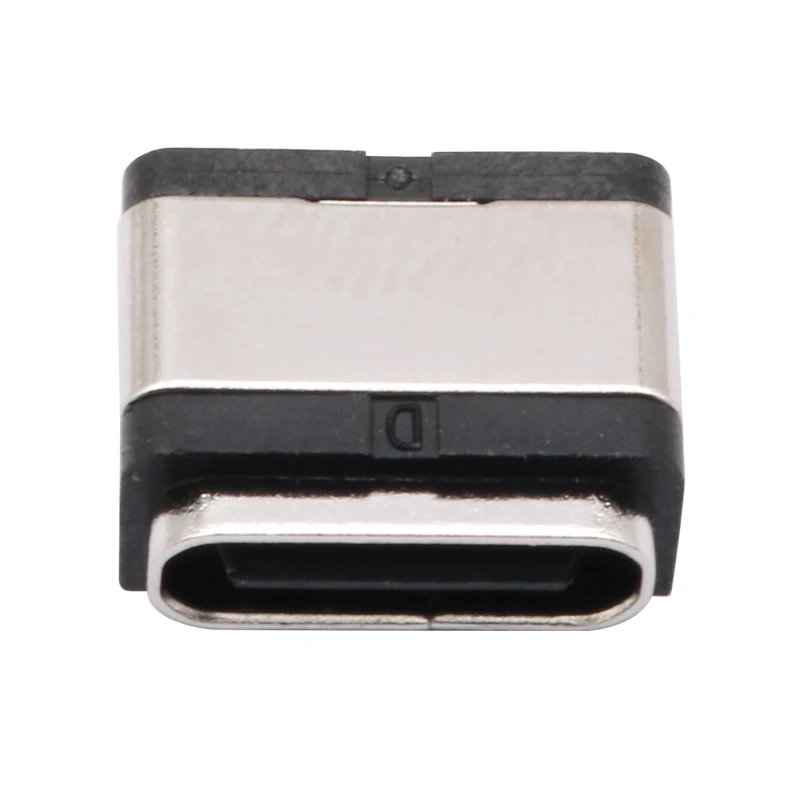

GSC-TYP-0054 is a 6-contact Type C female connector. The housing is LCP; the contact system is High conductivity copper; the shell is SUS304. Electrically it is rated 3A, with a withstanding voltage of 100V AC/Minute, over an operating temperature range of -30°C to +85°C. Mechanically it offers mating durability of 10000, contact resistance 30mΩ Max. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Interface | C |
| Gender | female |
| Number of contacts | 6PIN |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Locating Peg | With locating peg |
| Current Rating | 3A |
| Mating Cycles | 10000 |
| Temperature | -30°C to +85°C |
| Contact Resistance | 30mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
