Technical Specifications
| Type | HINGED COVER |
| Housing | Hi-Temp Temperature, UL94V-0, Black |
| Terminal | Copper Alloy |
| Shell | Stainless steel |
| Mating Cycles | 10000 Insertions |
| Temperature | -25°C to +85°C |
| Current Rating | 0.5 AMP |
| Insulation Resistance | 500MΩ Min. |
| Contact Resistance | 100mΩ Max. |
| Dielectric Voltage | 500V AC/Minute |
Key Features
- HINGED COVER card insertion
- Hi-Temp Temperature, UL94V-0, Black
- Copper Alloy contact system
- Stainless steel shell
- Rated 0.5 AMP
- 500V AC/Minute dielectric withstanding voltage
- Contact resistance 100mΩ Max.
- Insulation resistance 500MΩ Min.
Applications
- Mobile phones and tablets
- Industrial handheld terminals
- POS and payment terminals
- Automotive telematics
Drawing & Dimensions

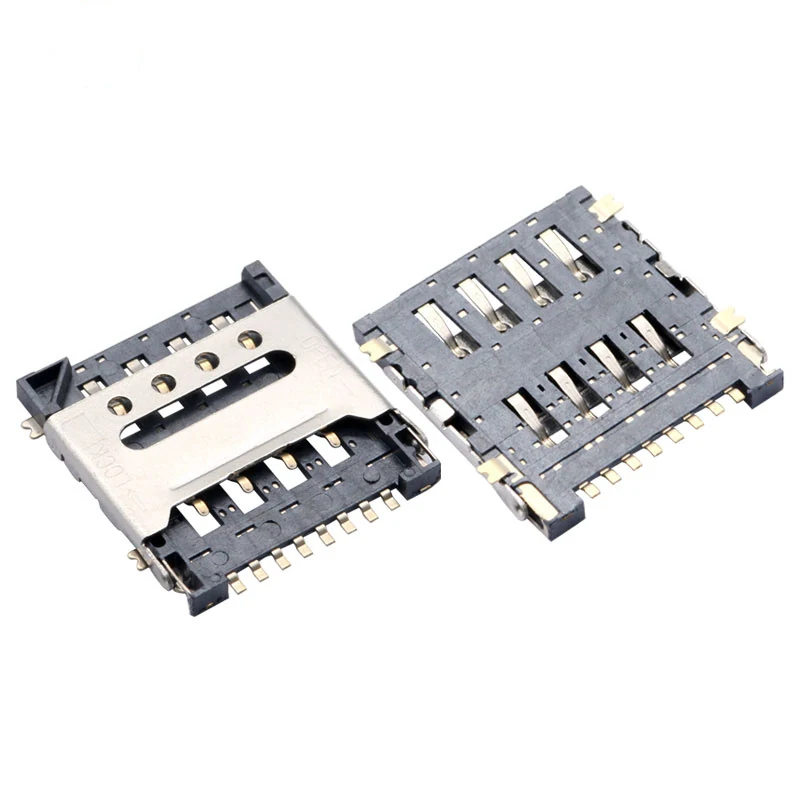

GSC-MSM-0006 is a HINGED COVER connector. The housing is Hi-Temp Temperature, UL94V-0, Black; the contact system is Copper Alloy; the shell is Stainless steel. Electrically it is rated 0.5 AMP, with a withstanding voltage of 500V AC/Minute, over an operating temperature range of -25°C to +85°C. Mechanically it offers mating durability of 10000 Insertions, insulation resistance 500MΩ Min., contact resistance 100mΩ Max. Typical applications include Mobile phones and tablets, Industrial handheld terminals, POS and payment terminals, and Automotive telematics.
| Type | HINGED COVER |
| Housing | Hi-Temp Temperature, UL94V-0, Black |
| Terminal | Copper Alloy |
| Shell | Stainless steel |
| Mating Cycles | 10000 Insertions |
| Temperature | -25°C to +85°C |
| Current Rating | 0.5 AMP |
| Insulation Resistance | 500MΩ Min. |
| Contact Resistance | 100mΩ Max. |
| Dielectric Voltage | 500V AC/Minute |
