Technical Specifications
| Connector style | Type C |
| Interface | C |
| Number of contacts | 6PIN |
| PCB mount type | Vertical type |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 5A |
| Mating Cycles | 10000 |
| Temperature | -40°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
Key Features
- 6 contacts
- Type C interface
- Vertical type termination
- LCP housing
- High conductivity copper contact system
- SUS304 shell
- SUS301 mid plate
- Rated 5A
Applications
- Consumer electronics
- Docking stations and USB hubs
- Industrial HMI and control panels
- Charging and power delivery devices
Drawing & Dimensions

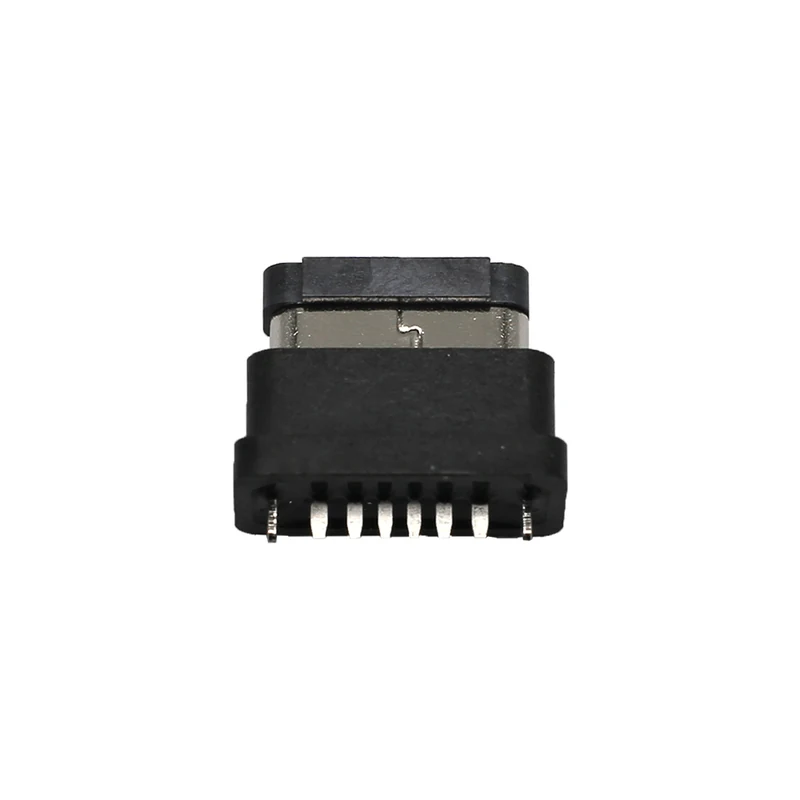

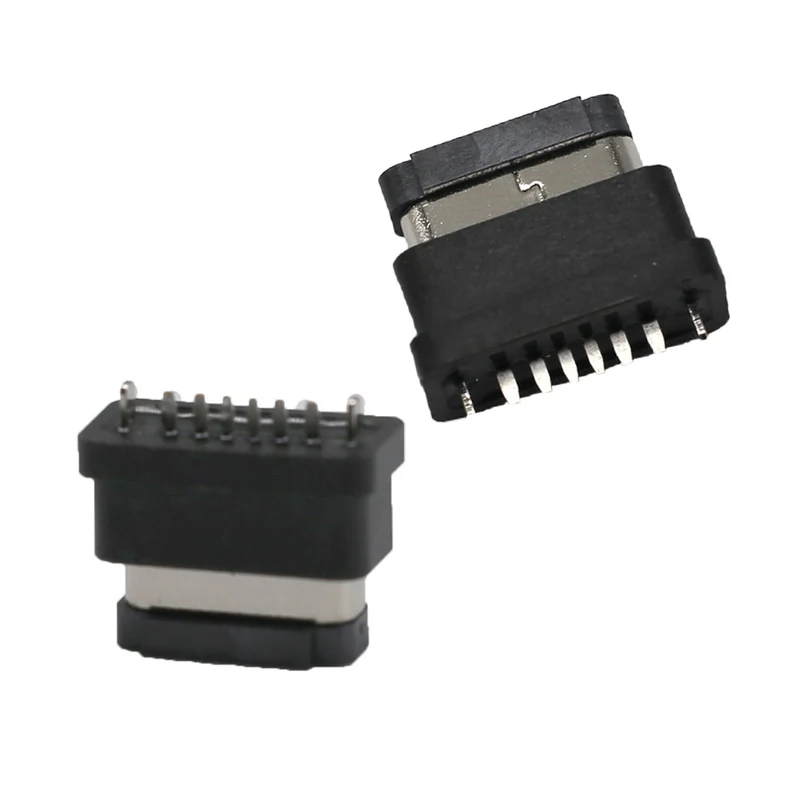

GSC-TYP-0037 is a 6-contact Type C connector, using Vertical type mounting. The housing is LCP; the contact system is High conductivity copper; the shell is SUS304. Electrically it is rated 5A, with a withstanding voltage of 100V AC/Minute, over an operating temperature range of -40°C to +85°C. Mechanically it offers mating durability of 10000, contact resistance 50mΩ Max. Typical applications include Consumer electronics, Docking stations and USB hubs, Industrial HMI and control panels, and Charging and power delivery devices.
| Connector style | Type C |
| Interface | C |
| Number of contacts | 6PIN |
| PCB mount type | Vertical type |
| Housing | LCP |
| Terminal | High conductivity copper |
| Shell | SUS304 |
| Mid Plate | SUS301 |
| Locating Peg | Without locating peg |
| Current Rating | 5A |
| Mating Cycles | 10000 |
| Temperature | -40°C to +85°C |
| Contact Resistance | 50mΩ Max. |
| Dielectric Voltage | 100V AC/Minute |
