Audio Jack Soldered-Style Headphone Jack – GSC-AUD-0072
Audio3 Pin
GSC-AUD-0072 is an audio 3-contact connector, 3.6mm 3P audio jack with switch (solder-type). GSCONN part GSC-AUD-0072.
5,000 CyclesRated mating life
3 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | ￠3.6×14.5×9mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- 3.6mm 3P audio jack with switch (solder-type)
- Dimensions: ￠3.6×14.5×9mm
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

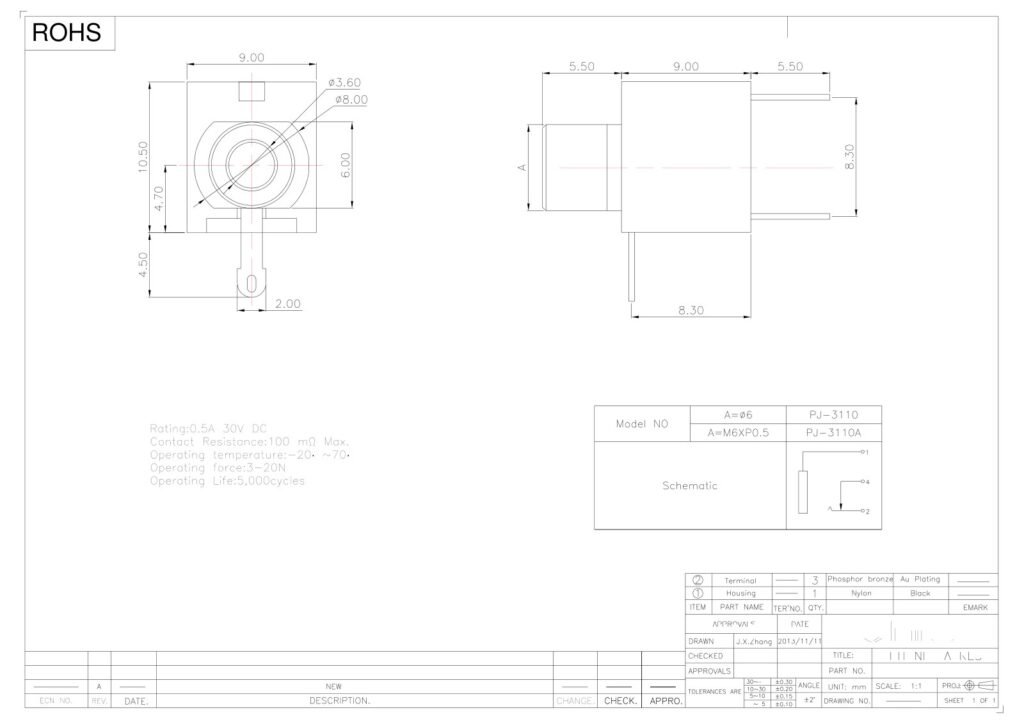

Drawing & Dimensions
GSC-AUD-0072 is an audio 3-contact connector, 3.6mm 3P audio jack with switch (solder-type).
| Series | AUDIO JACK |
|---|---|
| Dimensions | ￠3.6×14.5×9mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
