Board-Mount USB 2.0 Double-Layer 90 Degree Connector – C071267
USB 2.0480MbpsBoard-Mount
Professional USB 2.0 usb connector with double-layer, board-mount design. Speed up to 480Mbps. Model .
480Mbps High-SpeedFast Data Transfer
Double-Layer DesignEnhanced Stability
Board-MountSecure PCB Integration
Technical Specifications
| USB Version | USB 2.0 |
| Connector Type | USB Connector |
| Mount Type | Board-Mount |
| Layers | Double-Layer |
| Orientation | 90 Degree |
| Pin Configuration | Standard |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 480Mbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 2.0 High-Speed 480Mbps data transfer
- Double-Layer construction for enhanced stability
- Secure board-mount design for PCB installation
- Gold-plated contacts for reliable conductivity
- Glass-fiber reinforced housing for durability
- RoHS and REACH compliant
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

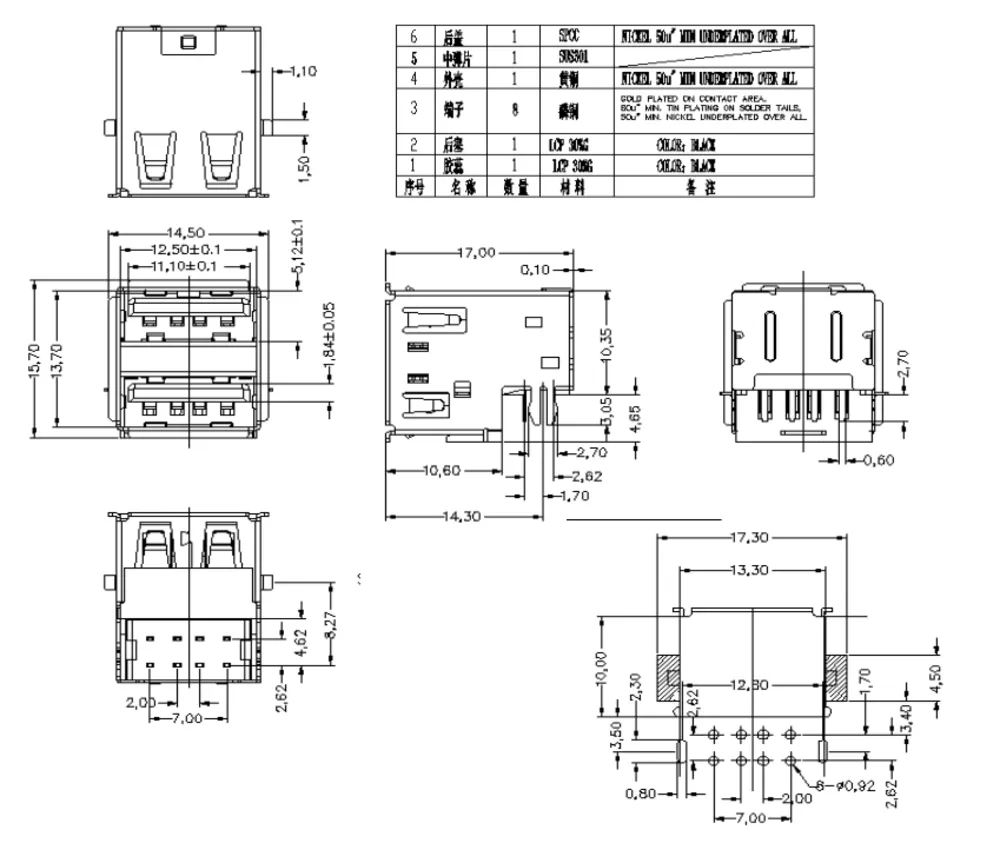

Product Drawing
This USB 2.0 usb connector features a double-layer construction with board-mount design for secure PCB installation. Supports data transfer up to 480Mbps with rated current of 4A and voltage of 30V DC. Gold-plated contacts and glass-fiber reinforced housing ensure reliable performance across industrial, consumer electronics, and communication applications.
