Board-Mount USB 3.0 Double-Layer 90 Degree Connector – C071141
USB 3.05GbpsBoard-Mount
Built for industrial and commercial USB applications, this 3.0 Standard connector features double-layer board-mount construction with right-angle cable exit for horizontal board...
3.0 Standard interface5Gbps high-speed differential pairs
Double-layer PCB designDouble-row contact array
90° exit angleHorizontal cable routing
USB 3.0 SuperSpeed certifiedCompact board footprint
Technical Specifications
| USB Version | USB 3.0 |
| Connector Type | USB Connector |
| Mount Type | Board-Mount |
| Layers | Double-Layer |
| Orientation | 90 Degree |
| Pin Configuration | Standard |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 5Gbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 3.0 Standard connector supporting standard 3.0 data protocols
- Double-layer PCB design with 90° cable exit for flexible board integration
- Standard contact configuration for full USB signaling compatibility
- Board-Mount termination supports board-mount assembly processes
- Suitable for consumer electronics, computing peripherals, and industrial control
- Suitable for security systems, surveillance, and access control hardware
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

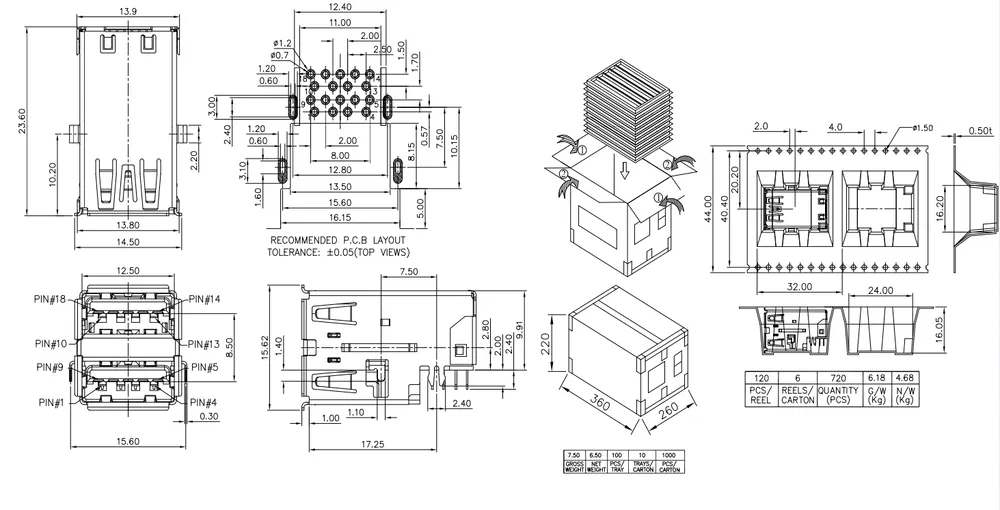

Product Drawing
Built for industrial and commercial USB applications, this 3.0 Standard connector features double-layer board-mount construction with right-angle cable exit for horizontal board integration. The standard contact configuration supports full USB 3.0 signaling requirements for data and power delivery. Compatible with hand-soldering, wave-soldering, and reflow-soldering processes for flexible production deployment. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
