DC Power Socket DC Jack Computer Charging Socket – GSC-DCJ-0010
DC power3 Pin
GSC-DCJ-0010 is a DC power 3-contact connector, high-current-rated 3P, 2.5 mm² (solder-type) DC socket. GSCONN part GSC-DCJ-0010.
5,000 CyclesRated mating life
3 PinContact count
Technical Specifications
| Series | DC JACK |
| Type | High-current resistant / 3P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 2.94–29.4 N |
Key Features
- High-current‑rated 3P
- 2.5 mm² (solder‑type) DC socket
Applications
- Power adapters and chargers
- Set-top boxes
- Routers and network equipment
- Industrial control equipment

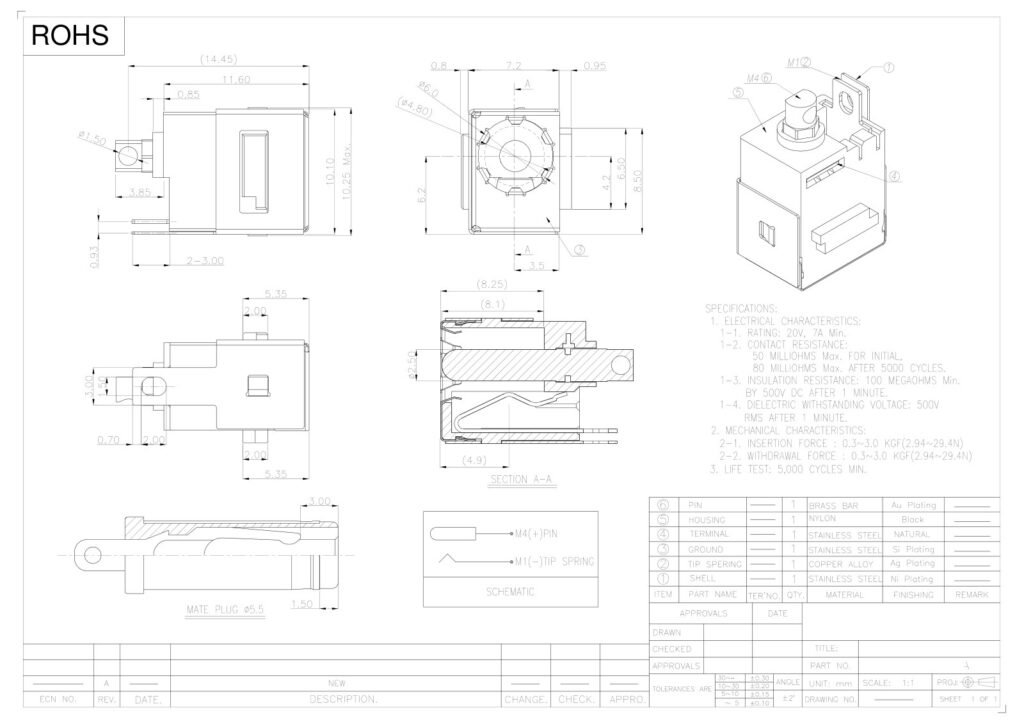

Drawing & Dimensions
GSC-DCJ-0010 is a DC power 3-contact connector, high-current-rated 3P, 2.5 mm² (solder-type) DC socket.
| Series | DC JACK |
|---|---|
| Type | High-current resistant / 3P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 2.94–29.4 N |
