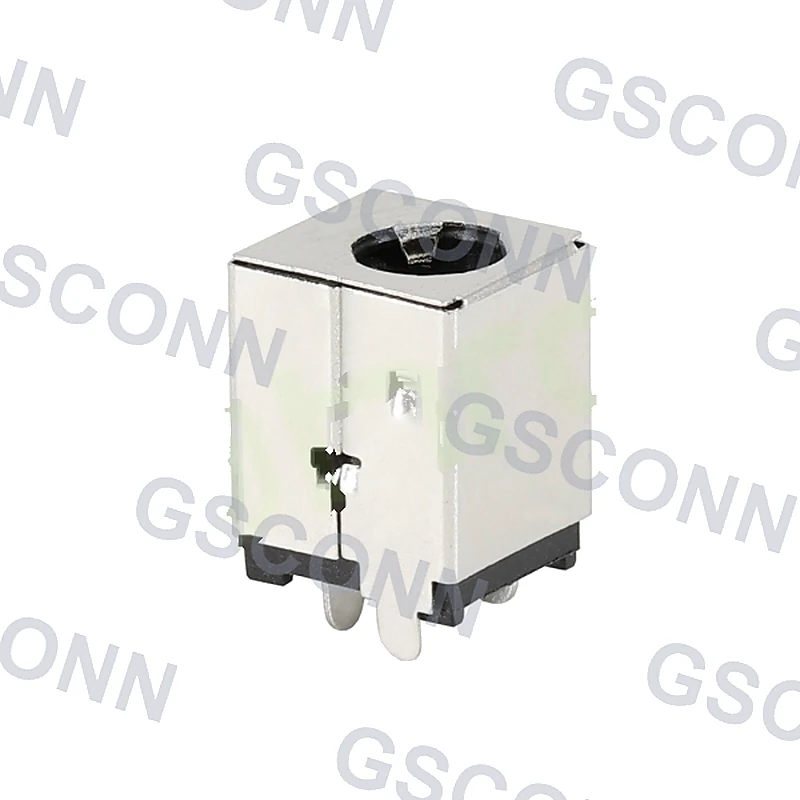

DC Socket DC Jack DC Power Connector – GSC-DCJ-0114
DC power4 PinThrough-Hole
GSC-DCJ-0114 is a DC power 4-contact connector, 4P ￠2.5mm high-current DC socket with grounding (board-mounted plug-in type). GSCONN part GSC-DCJ-0114.
Through-HolePCB solder termination
5,000 CyclesRated mating life
4 PinContact count
Technical Specifications
| Series | DC JACK |
| Type | With grounding / 4P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–15 N |
Key Features
- 4P ￠2.5mm high-current DC socket with grounding (board-mounted plug-in type)
Applications
- Power adapters and chargers
- Set-top boxes
- Routers and network equipment
- Industrial control equipment
Drawing & Dimensions
GSC-DCJ-0114 is a DC power 4-contact connector, 4P ￠2.5mm high-current DC socket with grounding (board-mounted plug-in type).
| Series | DC JACK |
|---|---|
| Type | With grounding / 4P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–15 N |
