DC Socket DC Jack DC Power Male Connector – GSC-DCJ-0006
DC power3 Pin
GSC-DCJ-0006 is a DC power 3-contact connector, 3P ￠7.15mm (solder-type) DC socket with matching male connector. GSCONN part GSC-DCJ-0006.
5,000 CyclesRated mating life
3 PinContact count
Technical Specifications
| Series | DC JACK |
| Type | Male connector / 3P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 2.94–29.4 N |
Key Features
- 3P ￠7.15mm (solder-type) DC socket with matching male connector
Applications
- Power adapters and chargers
- Set-top boxes
- Routers and network equipment
- Industrial control equipment

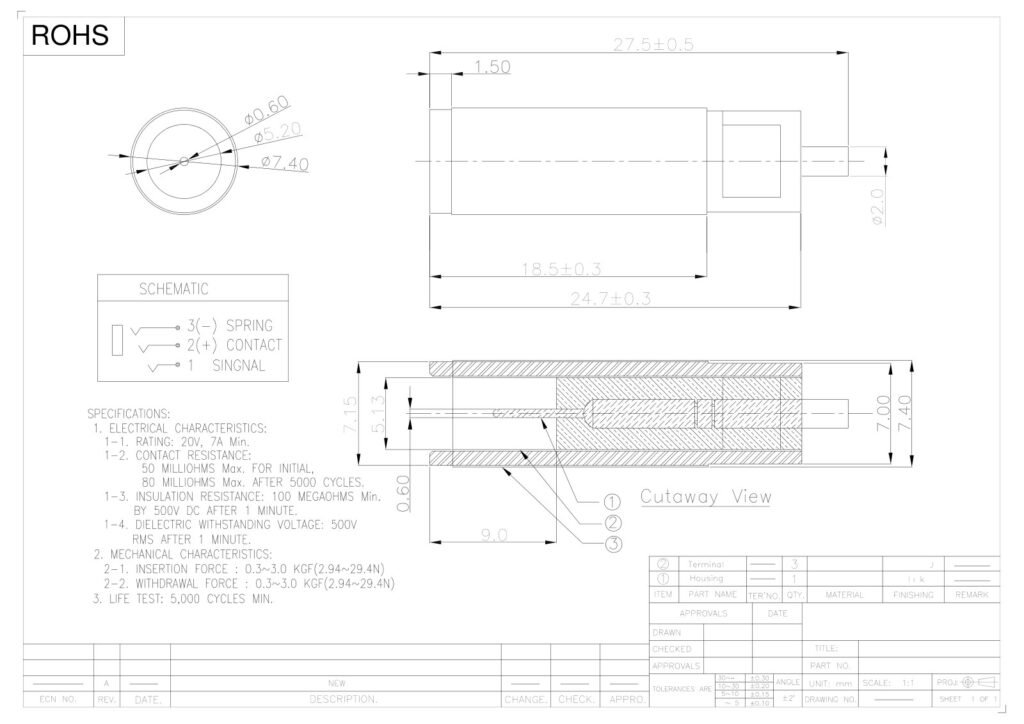

Drawing & Dimensions
GSC-DCJ-0006 is a DC power 3-contact connector, 3P ￠7.15mm (solder-type) DC socket with matching male connector.
| Series | DC JACK |
|---|---|
| Type | Male connector / 3P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 2.94–29.4 N |
