DC Socket DC Jack DC Power Socket – GSC-DCJ-0054
DC power6 PinThrough-HoleRight Angle
GSC-DCJ-0054 is a DC power 6-contact connector, horizontal 6P, ￠1.65 & 2.0 & 2.5 mm (board-mounted plug-in type) DC socket. GSCONN part GSC-DCJ-0054.
Through-HolePCB solder termination
5,000 CyclesRated mating life
6 PinContact count
Technical Specifications
| Series | DC JACK |
| Type | Plugin-based / 6P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- Horizontal 6P
- ￠1.65 & 2.0 & 2.5 mm (board-mounted plug-in type) DC socket
Applications
- Power adapters and chargers
- Set-top boxes
- Routers and network equipment
- Industrial control equipment

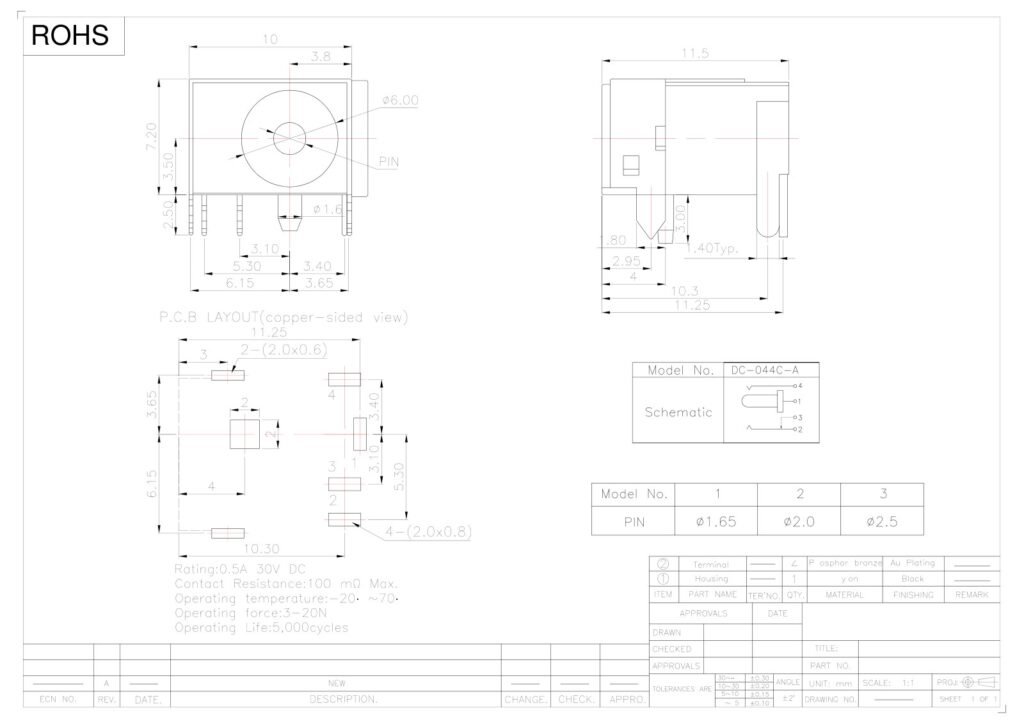

Drawing & Dimensions
GSC-DCJ-0054 is a DC power 6-contact connector, horizontal 6P, ￠1.65 & 2.0 & 2.5 mm (board-mounted plug-in type) DC socket.
| Series | DC JACK |
|---|---|
| Type | Plugin-based / 6P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
