DC Socket DC Jack SMD DC Power Socket – GSC-DCJ-0062
DC power4 PinSMTRight Angle
GSC-DCJ-0062 is a DC power 4-contact connector, horizontal 4P, Ø1.0 & 1.3 & 1.65 mm (surface-mount type) DC socket. GSCONN part GSC-DCJ-0062.
Surface MountSMT termination
5,000 CyclesRated mating life
4 PinContact count
Technical Specifications
| Series | DC JACK |
| Type | Surface-mount / 4P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- Horizontal 4P
- Ø1.0 & 1.3 & 1.65 mm (surface-mount type) DC socket
Applications
- Power adapters and chargers
- Set-top boxes
- Routers and network equipment
- Industrial control equipment

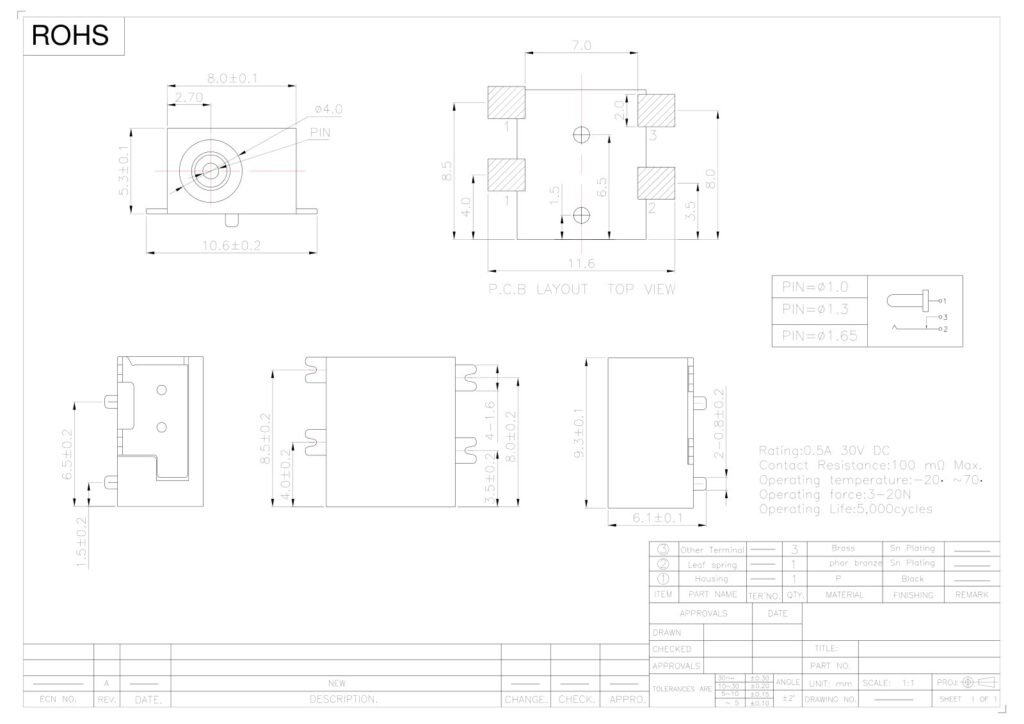

Drawing & Dimensions
GSC-DCJ-0062 is a DC power 4-contact connector, horizontal 4P, Ø1.0 & 1.3 & 1.65 mm (surface-mount type) DC socket.
| Series | DC JACK |
|---|---|
| Type | Surface-mount / 4P |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
