Deep-Mount USB 3.0 Double-Layer Connector – C071190
USB 3.05GbpsBoard-Mount
Designed for OEM board-mount integration, this 3.0 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact...
3.0 Standard interfaceUSB 3.0 SuperSpeed data path
Double-layer PCB designTwo-row PCB pin footprint
None° exit angleStandard cable exit
5Gbps data rate complianceStandardized 0.1" pin pitch
Technical Specifications
| USB Version | USB 3.0 |
| Connector Type | USB Connector |
| Mount Type | Board-Mount |
| Layers | Double-Layer |
| Orientation | 90 Degree |
| Pin Configuration | Standard |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 5Gbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 3.0 Standard connector supporting standard 3.0 data protocols
- Double-layer PCB design with None° cable exit for flexible board integration
- Standard contact configuration for full USB signaling compatibility
- Deep-Mount contact geometry optimized for specific mating and retention requirements
- PA66 + glass-fiber reinforced housing for mechanical strength and heat resistance
- Compatible with industrial HMIs, control panels, and operator interfaces
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

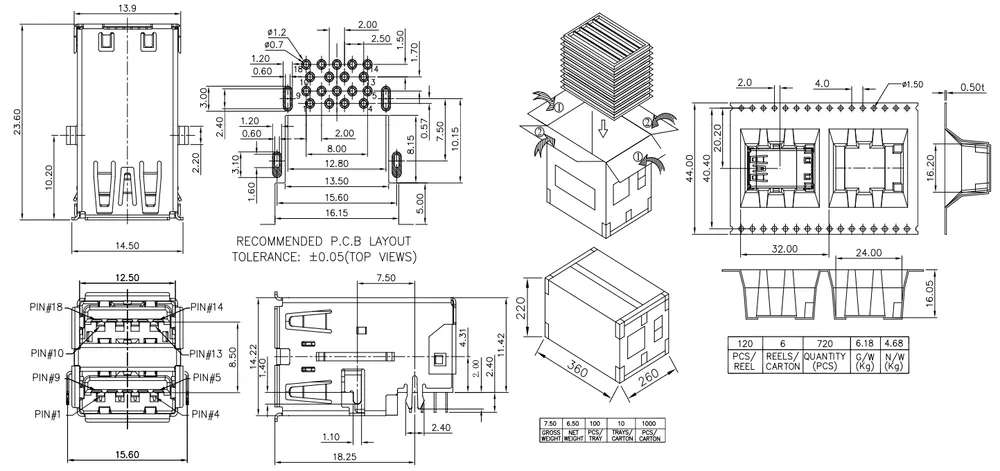

Product Drawing
Designed for OEM board-mount integration, this 3.0 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact configuration supports full USB 3.0 signaling requirements for data and power delivery. PA66 + glass-fiber reinforced housing provides mechanical strength and heat resistance for long-term reliability. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
