Dual-Color USB 3.0 Double-Layer Connector – C071031

Name: USB 3.0 Double-Layer 90 Degree Connector - C071031 | GSCONN
Brand: GSCONN

USB 3.05GbpsBoard-Mount

Tags:

#Double-Layer #Dual #USB 3.0 #USB Connector

Optimized for compact PCB footprint designs, this 3.0 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact...

Request a Quote →

3.0 Standard interface5Gbps SuperSpeed transfer

Double-layer PCB designStacked-row pin design

90° exit angleStandard cable exit

USB 3.0 SuperSpeed readyStandard 2.54mm pitch profile

Technical Specifications

USB Version	USB 3.0
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Double-Layer
Orientation	90 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	U2 contacts: Phosphor Bronze, half gold-tin plated; U3 contacts: Brass, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	5Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.0 Standard connector supporting standard 3.0 data protocols
Double-layer PCB design with 90° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Dual-Color contact geometry optimized for specific mating and retention requirements
Suitable for automotive infotainment and telematics system integration
Compatible with industrial robot and AGV system interconnect

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

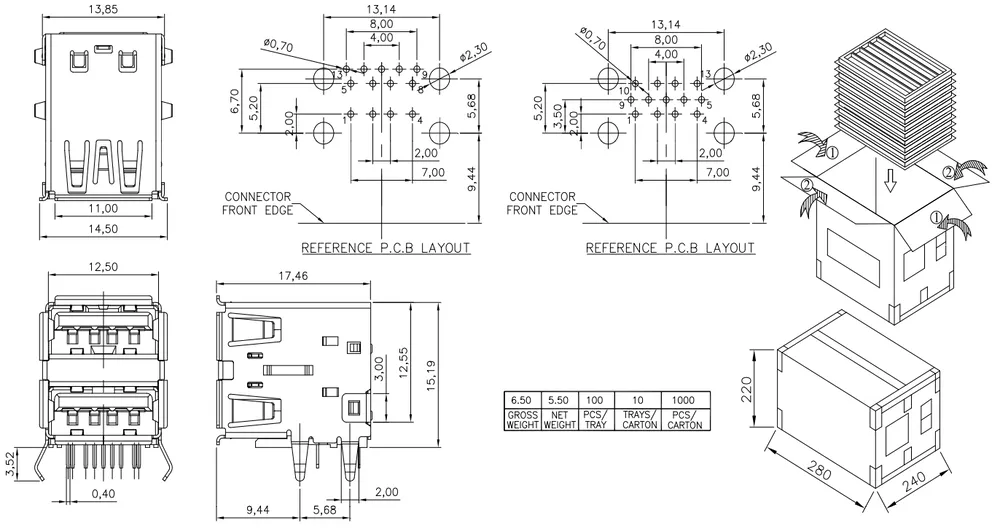

Product Drawing

Optimized for compact PCB footprint designs, this 3.0 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact configuration supports full USB 3.0 signaling requirements for data and power delivery. Suitable for consumer electronics, industrial controls, and embedded computing platforms requiring USB interconnect. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
