Dual Type-C 14P 180 Degree Combo Connector – L000009

Name: USB 2.0 Single-Layer 180 Degree Type-C - L000009 | GSCONN
Brand: GSCONN

USB 2.0480MbpsBoard-Mount

Tags:

#180 Degree #Combo #Dual #USB Connector #USB Type-C

Precision-tooled for USB 2.0 data integrity, this Type-C connector features standard board-mount construction with vertical cable exit for in-line board placement. The 14P...

Request a Quote →

14-Pin Type-C interfaceUSB standard speed

Single-layer PCB designStandard pin configuration

180° exit angleVertical cable exit

USB standard compliantHigh-density PCB layout

Technical Specifications

USB Version	USB 2.0
Connector Type	USB Type-C
Mount Type	Board-Mount
Layers	Single-Layer
Orientation	180 Degree
Pin Configuration	14-Pin
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Copper Alloy, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	BRASS, nickel plated
Data Speed	480Mbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

Single-layer PCB design with 180° cable exit for flexible board integration
14P contact pin configuration for full USB signaling compatibility
Combo-port design consolidates multiple interfaces into a single PCB footprint
Robust mechanical structure for reliable mating-cycle durability
Suitable for high-vibration installations including marine and rail

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

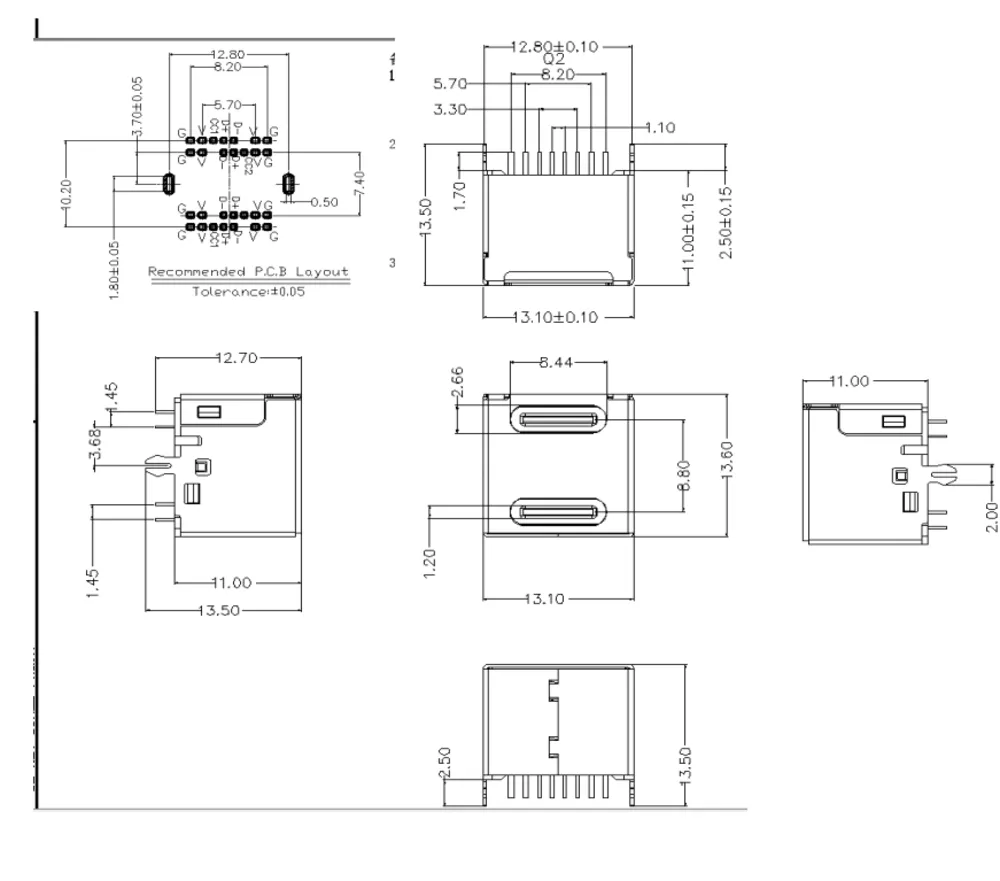

Product Drawing

Precision-tooled for USB 2.0 data integrity, this Type-C connector features standard board-mount construction with vertical cable exit for in-line board placement. The 14P configuration supports full USB 2.0 signaling requirements for data and power delivery. The combo-port design consolidates multiple USB interface standards into a single PCB footprint, reducing board space and BOM complexity. Suitable for consumer electronics, industrial controls, and embedded computing platforms requiring USB interconnect. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
