Dual Type-C 24P 90 Degree Combo Connector – C071243

Name: USB 2.0 Single-Layer 90 Degree Type-C - C071243 | GSCONN
Brand: GSCONN

USB 2.0480MbpsBoard-Mount

Tags:

#90 Degree #Combo #Dual #USB Connector #USB Type-C

Optimized for compact PCB footprint designs, this Type-C connector features standard board-mount construction with right-angle cable exit for horizontal board integration....

Request a Quote →

24-Pin Type-C interfaceUSB standard speed

Single-layer PCB designStandard pin configuration

90° exit anglePerpendicular PCB exit

USB standard compliantStandard 2.54mm pitch profile

Technical Specifications

USB Version	USB 2.0
Connector Type	USB Type-C
Mount Type	Board-Mount
Layers	Single-Layer
Orientation	90 Degree
Pin Configuration	24-Pin
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Copper Alloy, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	480Mbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

Single-layer PCB design with 90° cable exit for flexible board integration
24P contact pin configuration for full USB signaling compatibility
Combo-port design consolidates multiple interfaces into a single PCB footprint
Compatible with hand-soldering and reflow soldering processes for flexible production
Compatible with gaming peripherals, keyboards, mice, and high-speed I/O

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

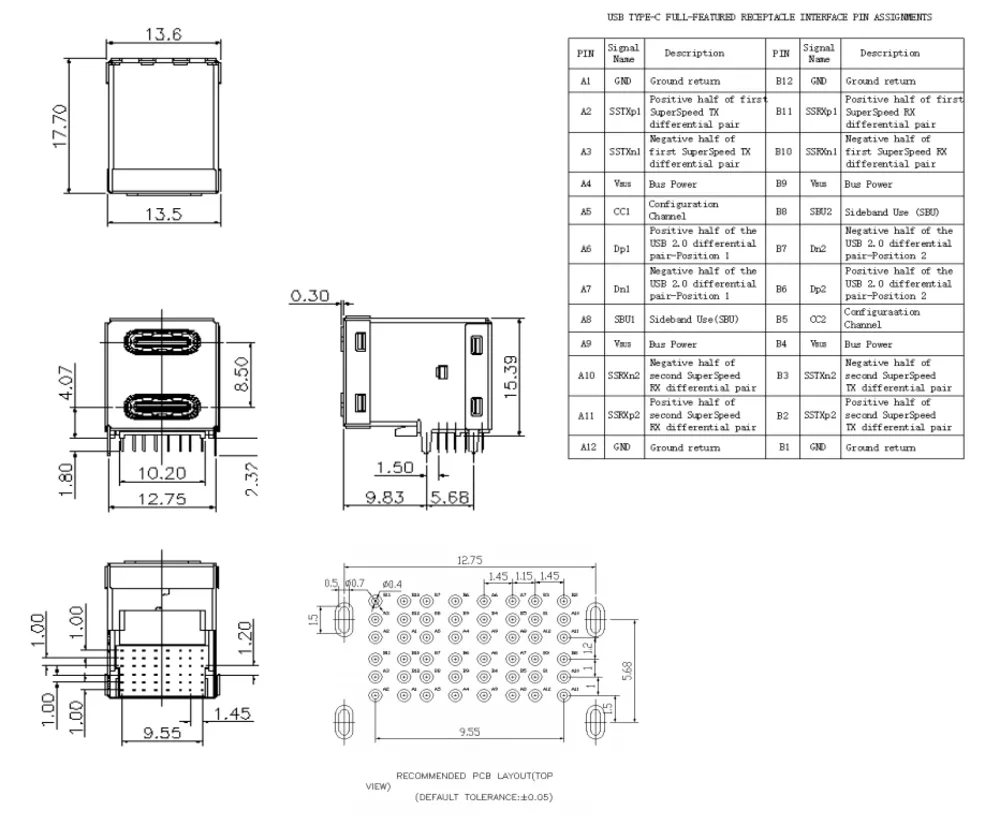

Product Drawing

Optimized for compact PCB footprint designs, this Type-C connector features standard board-mount construction with right-angle cable exit for horizontal board integration. The 24P configuration supports full USB 2.0 signaling requirements for data and power delivery. The combo-port design consolidates multiple USB interface standards into a single PCB footprint, reducing board space and BOM complexity. Compatible with hand-soldering, wave-soldering, and reflow-soldering processes for flexible production deployment. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
