Extended USB 3.1 Double-Layer Forked-Pin Connector – L000693
USB 3.110GbpsBoard-Mount
Engineered for high-reliability USB interconnect, this 3.1 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard...
3.1 Standard interface10Gbps SuperSpeed+ rate
Double-layer PCB designStacked-row pin design
None° exit angleStandard cable exit
USB 3.1 Gen 2 certifiedCompact board footprint
Technical Specifications
| USB Version | USB 3.1 |
| Connector Type | USB Connector |
| Mount Type | Board-Mount |
| Layers | Double-Layer |
| Orientation | 90 Degree |
| Pin Configuration | Standard |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 10Gbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 3.1 Standard connector supporting standard 3.1 data protocols
- Double-layer PCB design with None° cable exit for flexible board integration
- Standard contact configuration for full USB signaling compatibility
- Forked-Pin contact geometry optimized for specific mating and retention requirements
- Compatible with embedded computing platforms and single-board computers
- Suitable for charging and sync operations on portable consumer devices
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

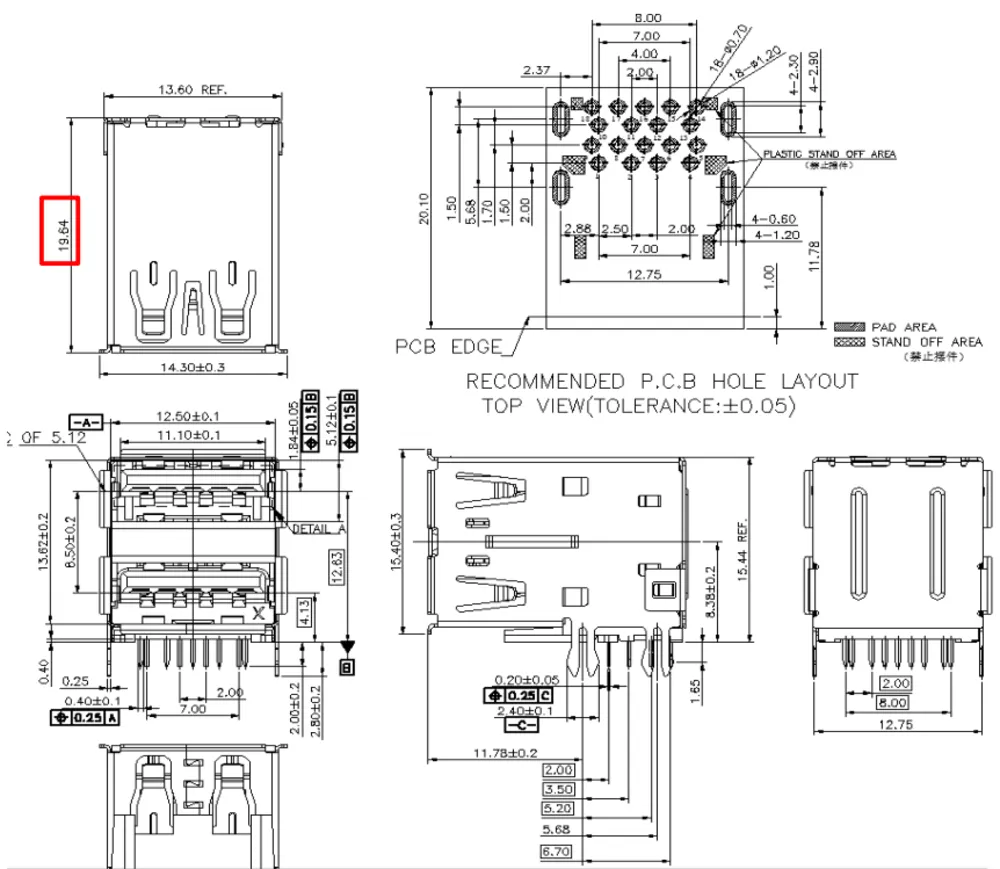

Product Drawing
Engineered for high-reliability USB interconnect, this 3.1 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact configuration supports full USB 3.1 signaling requirements for data and power delivery. Polarized housing design ensures correct orientation during cable mating, reducing field service risk. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
