Extended USB 3.1 Double-Layer Straight-Edge Connector – L000630
USB 3.110GbpsBoard-Mount
Manufactured to USB-IF compliance standards, this 3.1 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact...
3.1 Standard interface10Gbps SuperSpeed+ path
Double-layer PCB designDouble-row contact array
None° exit angleStandard cable exit
USB 3.1 Gen 2 compliantStandardized 0.1" pin pitch
Technical Specifications
| USB Version | USB 3.1 |
| Connector Type | USB Connector |
| Mount Type | Board-Mount |
| Layers | Double-Layer |
| Orientation | 90 Degree |
| Pin Configuration | Standard |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 10Gbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 3.1 Standard connector supporting standard 3.1 data protocols
- Double-layer PCB design with None° cable exit for flexible board integration
- Standard contact configuration for full USB signaling compatibility
- Straight-Edge contact geometry optimized for specific mating and retention requirements
- Polarized housing design prevents incorrect insertion and contact damage
- Compatible with networking equipment, routers, and switching hardware
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

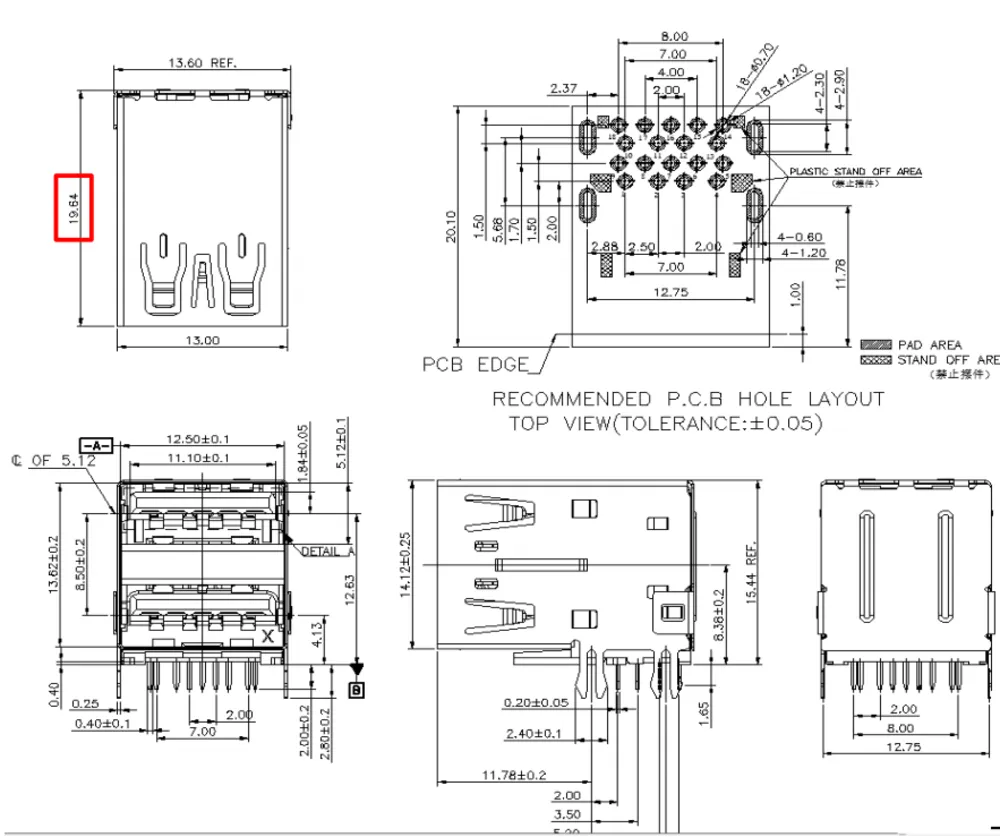

Product Drawing
Manufactured to USB-IF compliance standards, this 3.1 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact configuration supports full USB 3.1 signaling requirements for data and power delivery. Suitable for consumer electronics, industrial controls, and embedded computing platforms requiring USB interconnect. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
