Forward USB 3.0 Side-Mount Forked-Pin Connector – C071329
USB 3.05GbpsSide-Mount
Engineered for high-reliability USB interconnect, this 3.0 Standard connector features standard board-mount construction with side-mount edge-card orientation for compact board...
3.0 Standard interface5Gbps SuperSpeed transfer
None-layer PCB designStandard pin configuration
Side° exit angleLateral board edge mount
USB 3.0 SuperSpeed readyHigh-density PCB layout
Technical Specifications
| USB Version | USB 3.0 |
| Connector Type | USB Connector |
| Mount Type | Side-Mount |
| Layers | Single-Layer |
| Orientation | 90 Degree |
| Pin Configuration | Standard |
| Rated Current | 4A |
| Rated Voltage | 30V DC |
| Data Speed | 5Gbps |
| Operating Temperature | -40C to +85C |
| Certifications | CE, RoHS, REACH |
Key Features
- USB 3.0 Standard connector supporting standard 3.0 data protocols
- None-layer PCB design with Side° cable exit for flexible board integration
- Standard contact configuration for full USB signaling compatibility
- Forked-Pin contact geometry optimized for specific mating and retention requirements
- Compatible with networking equipment, routers, and switching hardware
- PA66 + glass-fiber reinforced housing for mechanical strength and heat resistance
Applications
- Consumer Electronics
- Computer Peripherals
- Industrial Control Systems
- Communication Devices
- Automotive Infotainment
- Medical Devices
- IoT Hardware

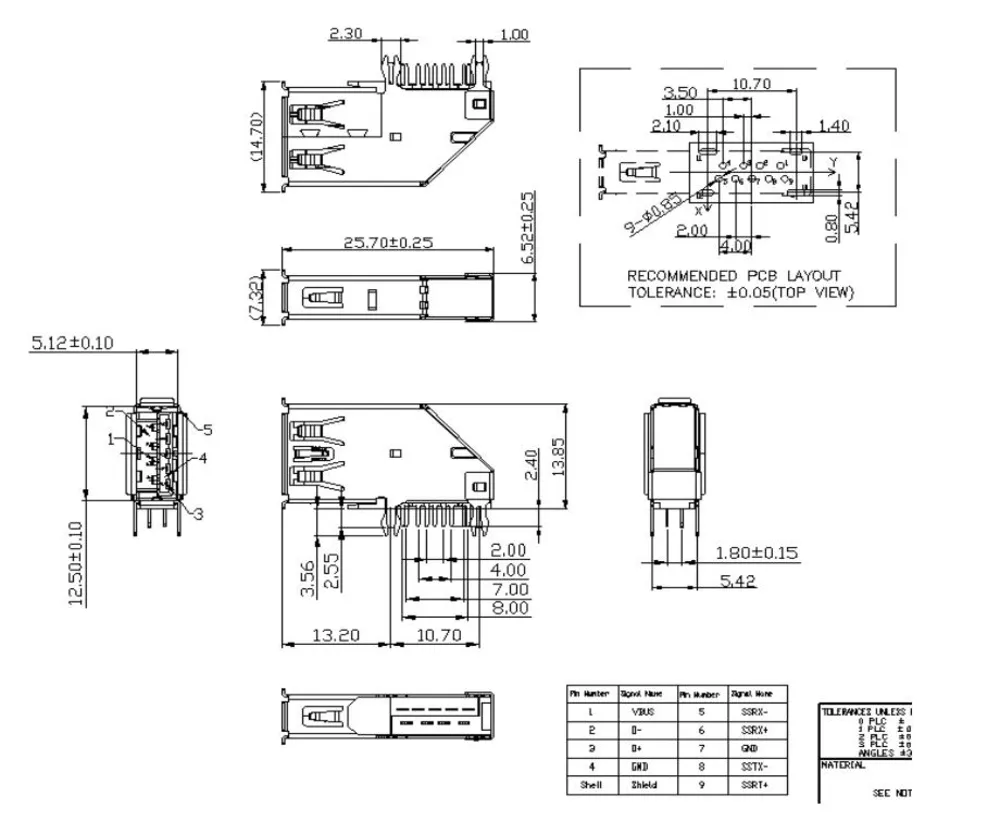

Product Drawing
Engineered for high-reliability USB interconnect, this 3.0 Standard connector features standard board-mount construction with side-mount edge-card orientation for compact board edges. The standard contact configuration supports full USB 3.0 signaling requirements for data and power delivery. Compatible with hand-soldering, wave-soldering, and reflow-soldering processes for flexible production deployment. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
