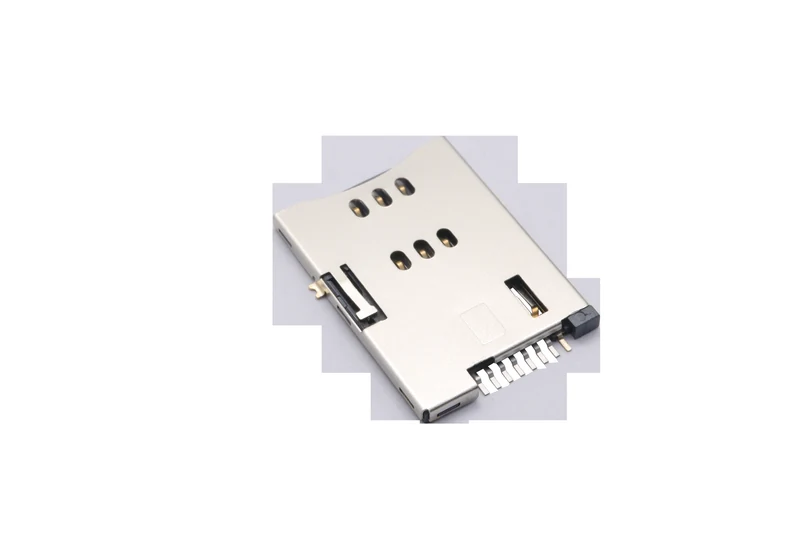

H1.8 push sim card connector – GSC-SIM-0001

Name: H1.8 push sim card connector – GSC-SIM-0001 | GSCONN
Brand: GSCONN

Tags:

H1.8 push push sim card connector, High Temperature, UL94V-0, Black housing, 0.5 A rated. GSCONN part GSC-SIM-0001.

Technical Specifications

Type	Push-push
Housing	High Temperature, UL94V-0, Black
Contact	Copper Alloy
Shell	Stainless steel
Mating Cycles	5000 Insertions
Ambient Temperature Range	-20°C~+60°C
Storage Temperature Range	-40°C~+70°C
Current Rating	0.5 A
Insulation Resistance	1000MΩ Min.
Contact Resistance	100mΩ Max.
Dielectric Voltage	500VDC

Key Features

Push-push card insertion
High Temperature, UL94V-0, Black
Copper Alloy contact system
Stainless steel shell
Rated 0.5 A
500VDC dielectric withstanding voltage
Contact resistance 100mΩ Max.
Insulation resistance 1000MΩ Min.

Applications

Mobile phones and tablets
Industrial handheld terminals
POS and payment terminals
Automotive telematics

Drawing & Dimensions

GSC-SIM-0001 is a Push-push connector. The housing is High Temperature, UL94V-0, Black; the contact system is Copper Alloy; the shell is Stainless steel. Electrically it is rated 0.5 A, with a withstanding voltage of 500VDC. Mechanically it offers mating durability of 5000 Insertions, insulation resistance 1000MΩ Min., contact resistance 100mΩ Max. Typical applications include Mobile phones and tablets, Industrial handheld terminals, POS and payment terminals, and Automotive telematics.

Type	Push-push
Housing	High Temperature, UL94V-0, Black
Contact	Copper Alloy
Shell	Stainless steel
Mating Cycles	5000 Insertions
Ambient Temperature Range	-20°C~+60°C
Storage Temperature Range	-40°C~+70°C
Current Rating	0.5 A
Insulation Resistance	1000MΩ Min.
Contact Resistance	100mΩ Max.
Dielectric Voltage	500VDC
