Technical Specifications
| HOUSING | LCP UL94V-O,BLACK |
| CONTACT | C2680 gold-flash plated PLATED ON CONTACT AREA |
| SHELL | SUS,30u" MIN. Ni PLATED OVERALL |
| Contact Plating | 30u" MIN. NI Underplated OVERALL |
| CONTACT RESISTANCE | 30mΩ MAX. |
| INSULATION RESISTANCE | 1000MΩ MIN. |
| WITHSTAND VOLTAGE | AC 500V FOR 1 MINUTE |
| Mating Force | 4.0kgf MAX. |
| Unmating Force | 1.0kgf MIN. |
| DURABILITY | 10000 CYCLE. |
| Operating Temperature | -45℃ TO +105℃ |
Key Features
- LCP UL94V-O,BLACK
- C2680 gold-flash plated PLATED ON CONTACT AREA contact system
- 30u" MIN. NI Underplated OVERALL contact system
- SUS,30u" MIN. Ni PLATED OVERALL
- AC 500V FOR 1 MINUTE dielectric withstanding voltage
- Contact resistance 30mΩ MAX.
- Insulation resistance 1000MΩ MIN.
- 10000 CYCLE. mating cycles
Applications
- Home theatre and set-top boxes
- Monitors and digital signage
- Industrial video equipment
- Gaming consoles
Drawing & Dimensions

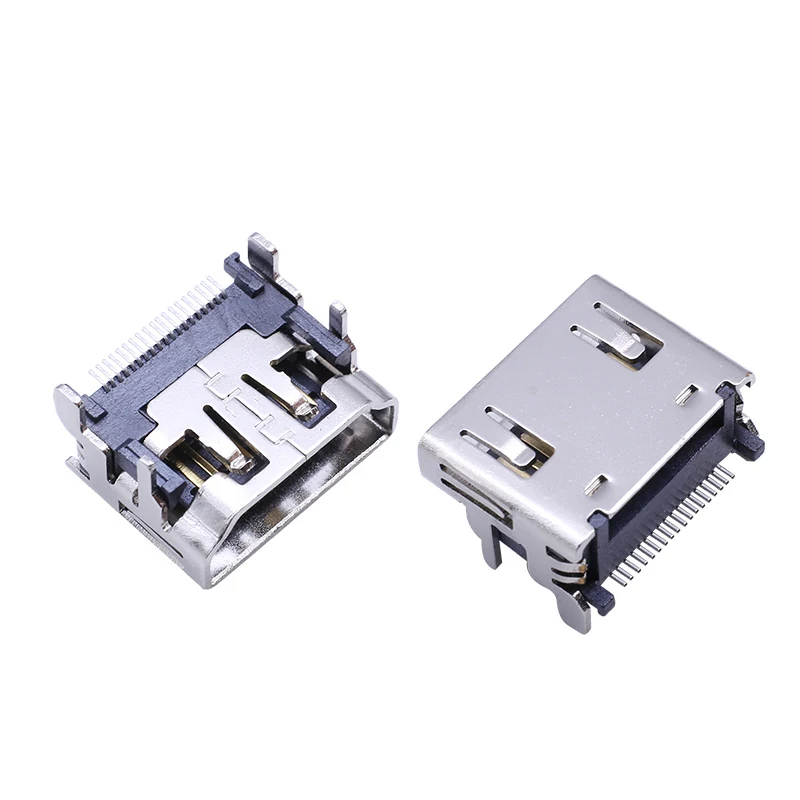

GSC-HDM-0001 is a HDMI connector. The housing is LCP UL94V-O,BLACK; the contact system is C2680 gold-flash plated PLATED ON CONTACT AREA; the shell is SUS,30u” MIN. Ni PLATED OVERALL. Electrically it is with a withstanding voltage of AC 500V FOR 1 MINUTE, over an operating temperature range of -45℃ TO +105℃. Mechanically it offers mating durability of 10000 CYCLE., insulation resistance 1000MΩ MIN., contact resistance 30mΩ MAX. Typical applications include Home theatre and set-top boxes, Monitors and digital signage, Industrial video equipment, and Gaming consoles.
| HOUSING | LCP UL94V-O,BLACK |
| CONTACT | C2680 gold-flash plated PLATED ON CONTACT AREA |
| SHELL | SUS,30u” MIN. Ni PLATED OVERALL |
| Contact Plating | 30u” MIN. NI Underplated OVERALL |
| CONTACT RESISTANCE | 30mΩ MAX. |
| INSULATION RESISTANCE | 1000MΩ MIN. |
| WITHSTAND VOLTAGE | AC 500V FOR 1 MINUTE |
| Mating Force | 4.0kgf MAX. |
| Unmating Force | 1.0kgf MIN. |
| DURABILITY | 10000 CYCLE. |
| Operating Temperature | -45℃ TO +105℃ |
