HDMI-Compatible USB 3.1 Raised Double-Layer Connector – L000724

Name: USB 3.1 Double-Layer 90 Degree Connector - L000724 | GSCONN
Brand: GSCONN

USB 3.110GbpsBoard-Mount

Tags:

#Double-Layer #HDMI #Raised #USB 3.1 #USB Connector

Engineered for high-reliability USB interconnect, this 3.1 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard...

Request a Quote →

3.1 Standard interface10Gbps SuperSpeed+ rate

Double-layer PCB designStacked-row pin design

90° exit angleStandard cable exit

USB 3.1 Gen 2 certifiedHigh-density PCB layout

Technical Specifications

USB Version	USB 3.1
Connector Type	USB Connector
Mount Type	Board-Mount
Layers	Double-Layer
Orientation	90 Degree
Pin Configuration	Standard
Rated Current	1.8A (0.25A for other contacts)
Rated Voltage	30V DC
Contact Resistance	30mΩ
Insulation Resistance	100MΩ
Withstand Voltage	100V
Contact Material	Brass, half gold-tin plated
Insulator Material	High-Temperature Plastic, UL94-V0
Shell Material	SUS, nickel plated
Data Speed	10Gbps
Operating Temperature	-55°C to +85°C
Certifications	CE, RoHS, REACH

Key Features

USB 3.1 Standard connector supporting standard 3.1 data protocols
Double-layer PCB design with 90° cable exit for flexible board integration
Standard contact configuration for full USB signaling compatibility
Combo-port design consolidates multiple interfaces into a single PCB footprint
Raised contact geometry optimized for specific mating and retention requirements
Gold-plated contact pins for low contact resistance and oxidation resistance
Suitable for point-of-sale systems and commercial electronic equipment

Applications

Consumer Electronics
Computer Peripherals
Industrial Control Systems
Communication Devices
Automotive Infotainment
Medical Devices
IoT Hardware

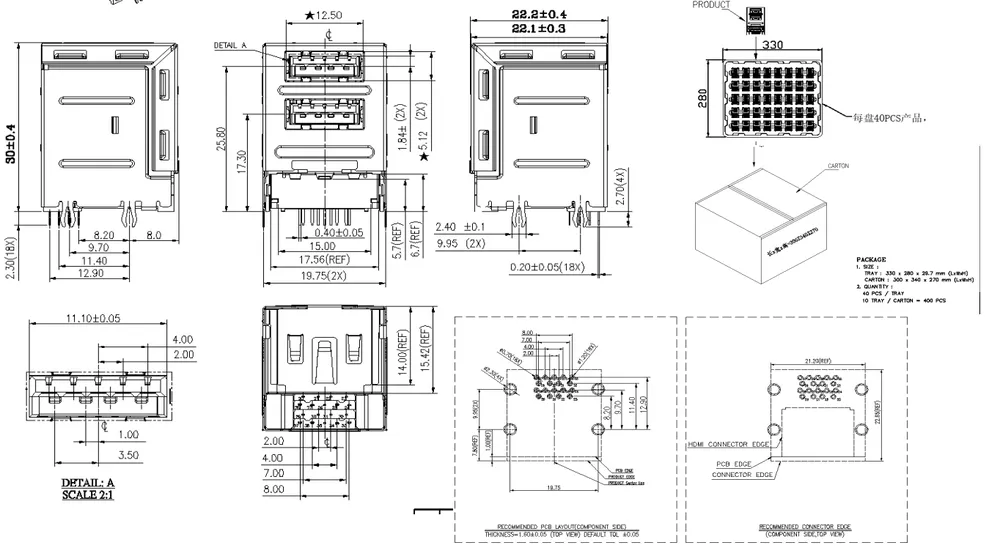

Product Drawing

Engineered for high-reliability USB interconnect, this 3.1 Standard connector features double-layer board-mount construction with standard cable exit orientation. The standard contact configuration supports full USB 3.1 signaling requirements for data and power delivery. The combo-port design consolidates multiple USB interface standards into a single PCB footprint, reducing board space and BOM complexity. Suitable for consumer electronics, industrial controls, and embedded computing platforms requiring USB interconnect. Each unit ships ready for board-mount installation with industry-standard pin pitch for drop-in compatibility with mainstream PCB assembly processes.
