Headphone Jack Audio Jack with Switch – GSC-AUD-0052
Audio4 PinThrough-Hole
GSC-AUD-0052 is an audio 4-contact connector, 3.6mm 4P audio jack with switch (board-mounted plug-in type). GSCONN part GSC-AUD-0052.
Through-HolePCB solder termination
5,000 CyclesRated mating life
4 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | ￠3.6×14.2×6×5mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- 3.6mm 4P audio jack with switch (board-mounted plug-in type)
- Dimensions: ￠3.6×14.2×6×5mm
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

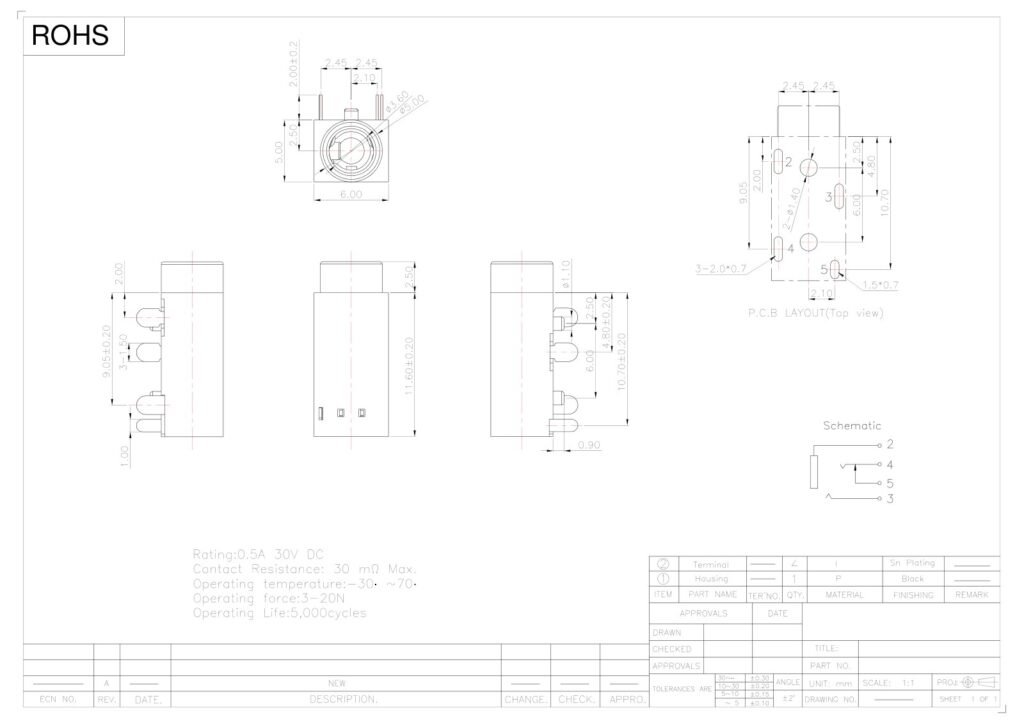

Drawing & Dimensions
GSC-AUD-0052 is an audio 4-contact connector, 3.6mm 4P audio jack with switch (board-mounted plug-in type).
| Series | AUDIO JACK |
|---|---|
| Dimensions | ￠3.6×14.2×6×5mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
