Headphone Jack Bent-Pin Audio Jack – GSC-AUD-0063
Audio3 PinThrough-Hole
GSC-AUD-0063 is an audio 3-contact connector, ￠3.6mm 3P audio jack with positioning posts (board-mounted plug-in type). GSCONN part GSC-AUD-0063.
Through-HolePCB solder termination
5,000 CyclesRated mating life
3 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | ￠3.6×16.5×8×10mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- ￠3.6mm 3P audio jack with positioning posts (board-mounted plug-in type)
- Dimensions: ￠3.6×16.5×8×10mm
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

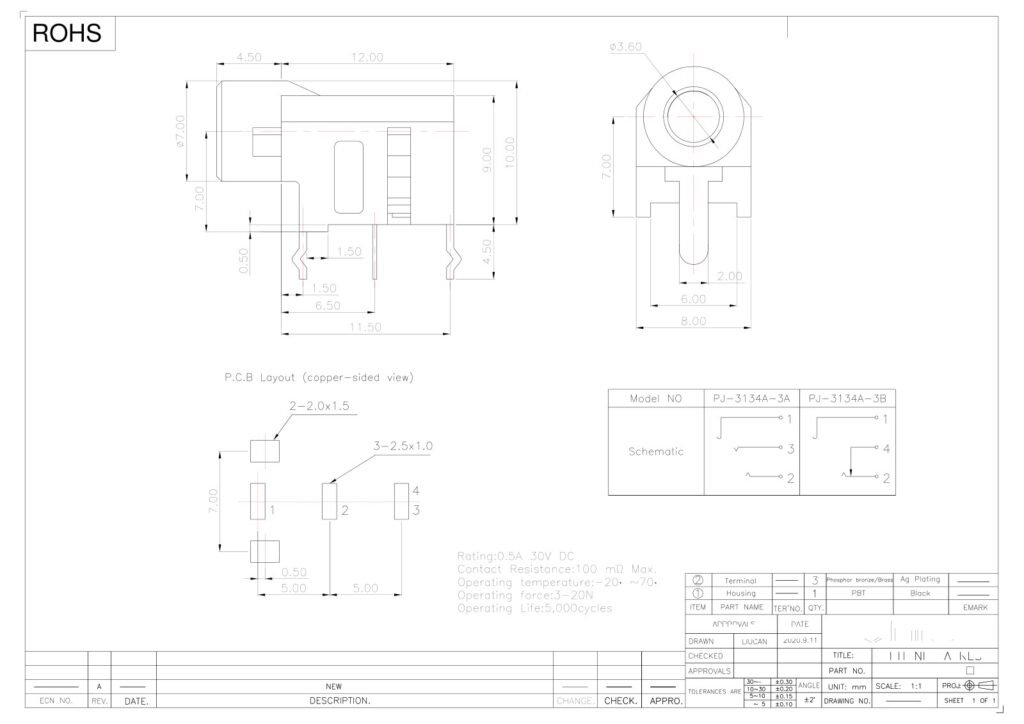

Drawing & Dimensions
GSC-AUD-0063 is an audio 3-contact connector, ￠3.6mm 3P audio jack with positioning posts (board-mounted plug-in type).
| Series | AUDIO JACK |
|---|---|
| Dimensions | ￠3.6×16.5×8×10mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
