Headphone Jack Flush-Mount Audio Jack – GSC-AUD-0085
Audio6 Pin
GSC-AUD-0085 is an audio 6-contact connector, ￠3.6mm 6P recessed board, 1.95mm (front-plug, rear-mount) audio jack. GSCONN part GSC-AUD-0085.
5,000 CyclesRated mating life
6 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- ￠3.6mm 6P recessed board
- 1.95mm (front-plug
- rear-mount) audio jack
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

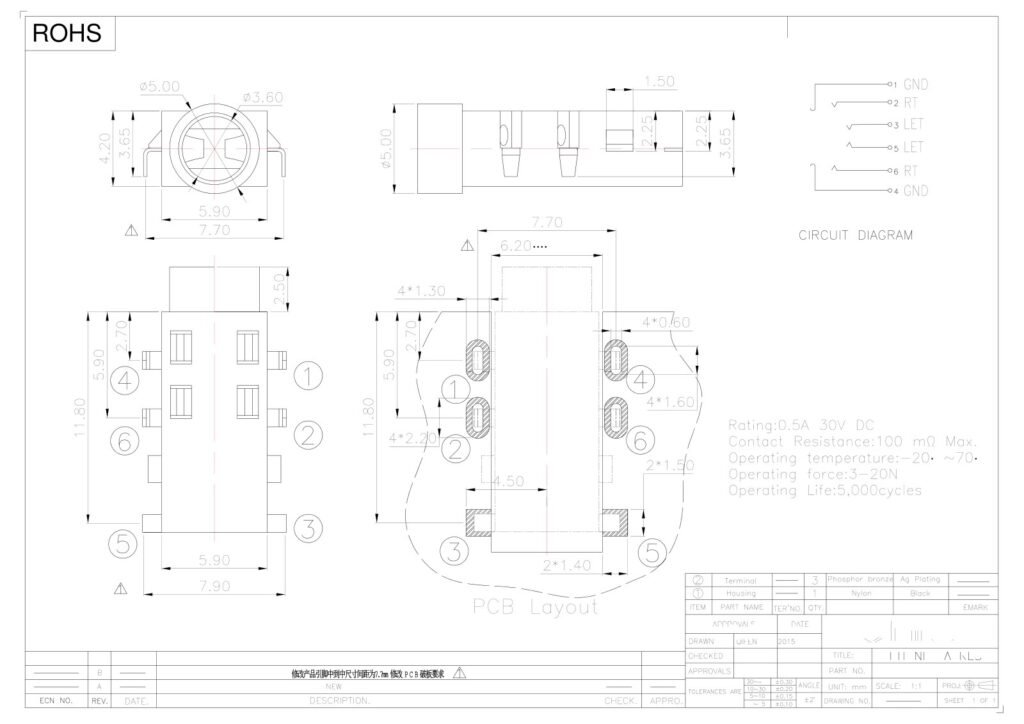

Drawing & Dimensions
GSC-AUD-0085 is an audio 6-contact connector, ￠3.6mm 6P recessed board, 1.95mm (front-plug, rear-mount) audio jack.
| Series | AUDIO JACK |
|---|---|
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
