Headphone Jack Flush-Mount Audio Jack – GSC-AUD-0086
Audio6 PinThrough-Hole
GSC-AUD-0086 is an audio 6-contact connector, ￠3.6mm 6P recessed panel, 1mm (plug-in type on the panel) audio jack. GSCONN part GSC-AUD-0086.
Through-HolePCB solder termination
5,000 CyclesRated mating life
6 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- ￠3.6mm 6P recessed panel
- 1mm (plug-in type on the panel) audio jack
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

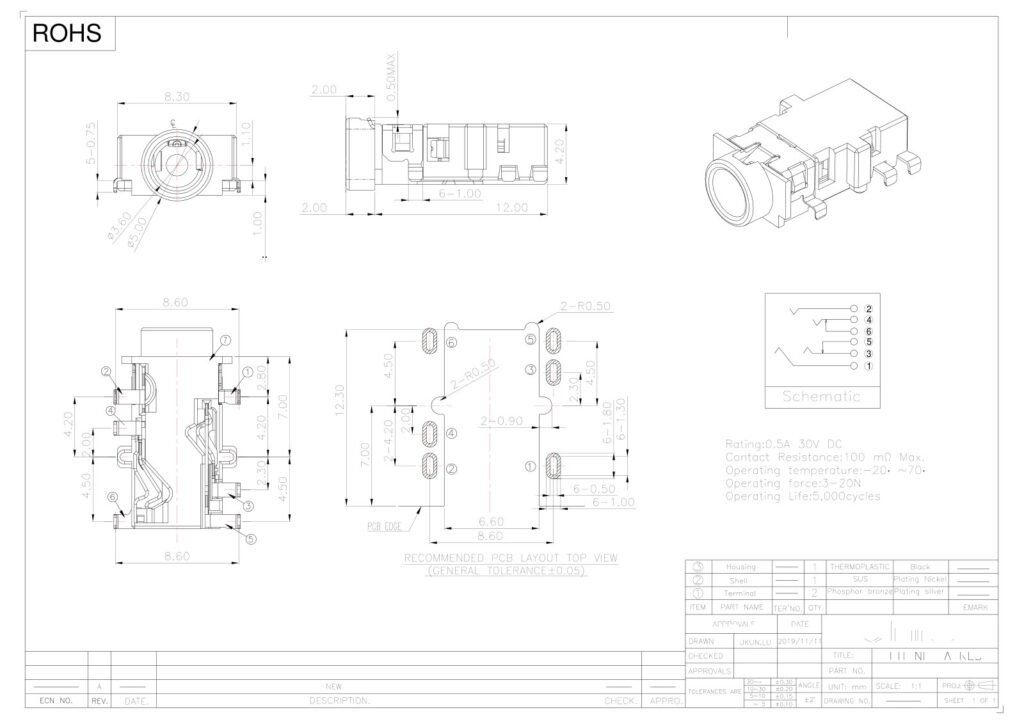

Drawing & Dimensions
GSC-AUD-0086 is an audio 6-contact connector, ￠3.6mm 6P recessed panel, 1mm (plug-in type on the panel) audio jack.
| Series | AUDIO JACK |
|---|---|
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
