Headphone Jack – GSC-AUD-0046
Audio4 PinVertical
GSC-AUD-0046 is an audio 4-contact connector, ￠3.6mm 4P vertical (board-mount) audio jack. GSCONN part GSC-AUD-0046.
5,000 CyclesRated mating life
4 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | ￠3.6×17.5×10mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- ￠3.6mm 4P vertical (board-mount) audio jack
- Dimensions: ￠3.6×17.5×10mm
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

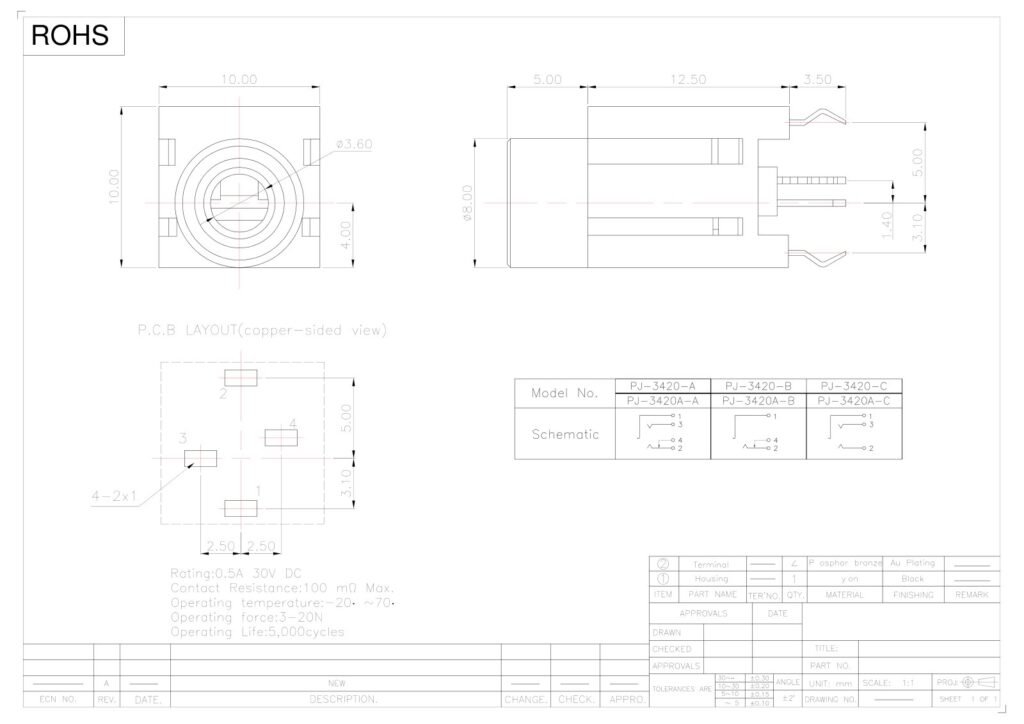

Drawing & Dimensions
GSC-AUD-0046 is an audio 4-contact connector, ￠3.6mm 4P vertical (board-mount) audio jack.
| Series | AUDIO JACK |
|---|---|
| Dimensions | ￠3.6×17.5×10mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
