Headphone Jack – GSC-AUD-0090
Audio3 PinSMT
GSC-AUD-0090 is an audio 3-contact connector, ￠3.6mm 3P clip-on (surface-mount) audio jack. GSCONN part GSC-AUD-0090.
Surface MountSMT termination
5,000 CyclesRated mating life
3 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | ￠3.6×15×6×6mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- ￠3.6mm 3P clip‑on (surface‑mount) audio jack
- Dimensions: ￠3.6×15×6×6mm
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

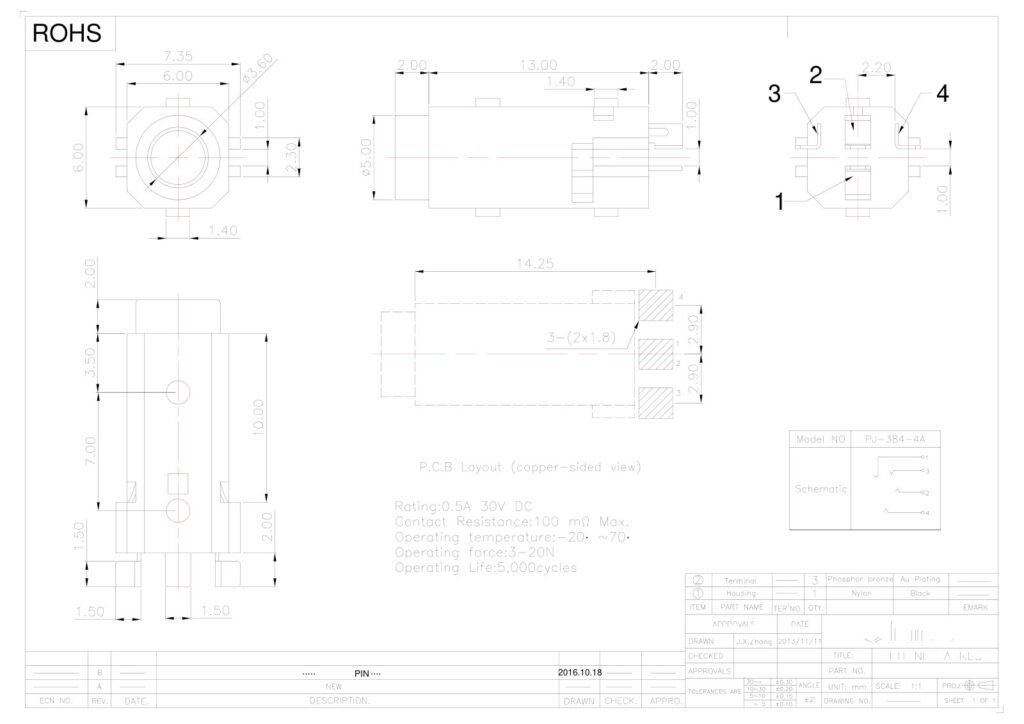

Drawing & Dimensions
GSC-AUD-0090 is an audio 3-contact connector, ￠3.6mm 3P clip-on (surface-mount) audio jack.
| Series | AUDIO JACK |
|---|---|
| Dimensions | ￠3.6×15×6×6mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
