Headphone Jack – GSC-AUD-0115
Audio3 PinSMT
GSC-AUD-0115 is an audio 3-contact connector, 3.6 mm, 3P with positioning posts (surface-mount type) audio jack. GSCONN part GSC-AUD-0115.
Surface MountSMT termination
5,000 CyclesRated mating life
3 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | ￠3.6×14.1×6×5mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- 3.6 mm
- 3P with positioning posts (surface-mount type) audio jack
- Dimensions: ￠3.6×14.1×6×5mm
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

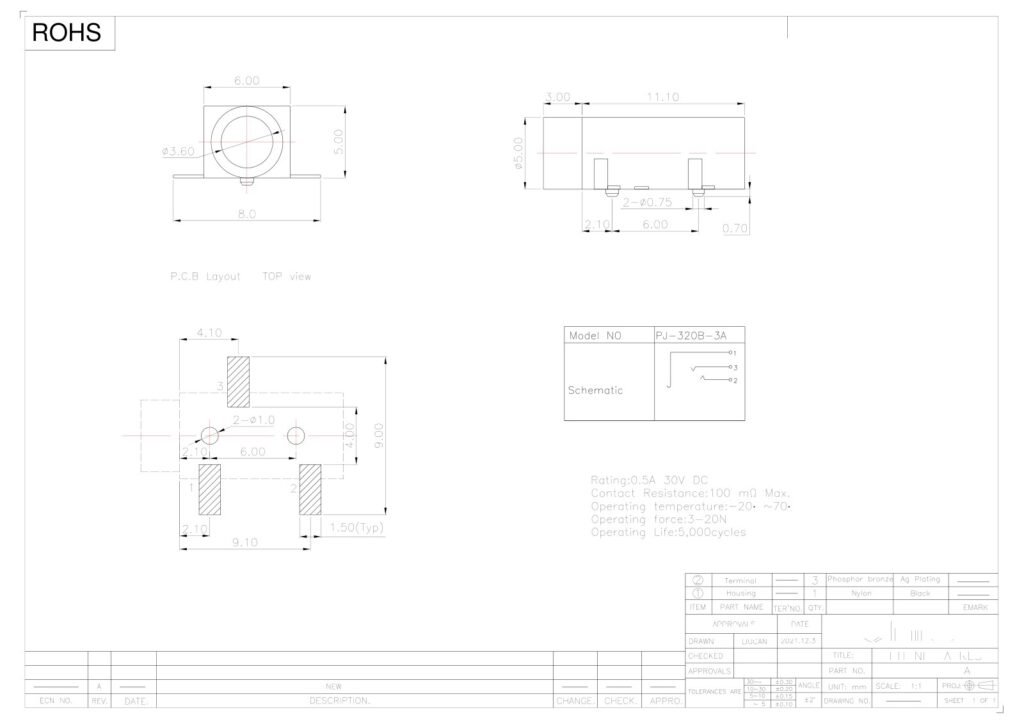

Drawing & Dimensions
GSC-AUD-0115 is an audio 3-contact connector, 3.6 mm, 3P with positioning posts (surface-mount type) audio jack.
| Series | AUDIO JACK |
|---|---|
| Dimensions | ￠3.6×14.1×6×5mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
