Headphone Jack – GSC-AUD-0117
Audio8 PinSMT
GSC-AUD-0117 is an audio 8-contact connector, 3.6 mm, 8P with positioning posts (surface-mount type) audio jack. GSCONN part GSC-AUD-0117.
Surface MountSMT termination
5,000 CyclesRated mating life
8 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | ￠3.6×17.2×7×5mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- 3.6 mm
- 8P with positioning posts (surface-mount type) audio jack
- Dimensions: ￠3.6×17.2×7×5mm
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

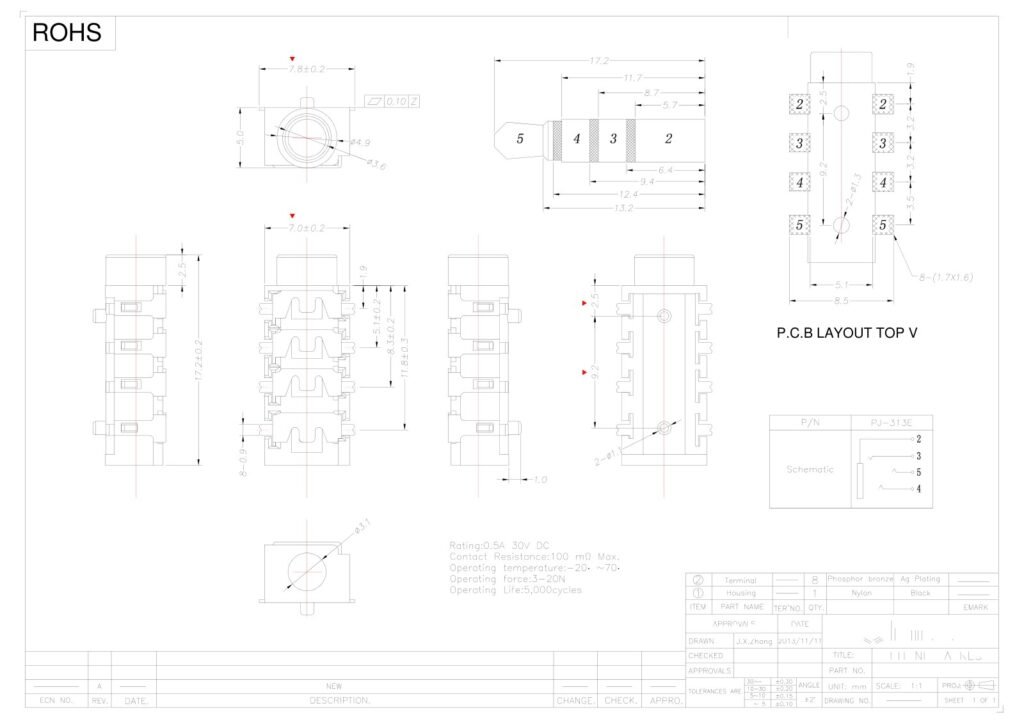

Drawing & Dimensions
GSC-AUD-0117 is an audio 8-contact connector, 3.6 mm, 8P with positioning posts (surface-mount type) audio jack.
| Series | AUDIO JACK |
|---|---|
| Dimensions | ￠3.6×17.2×7×5mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
