Headphone Jack – GSC-AUD-0124
Audio5 PinSMT
GSC-AUD-0124 is an audio 5-contact connector, ￠2.6mm 5P with定位柱 (surface-mount type) audio jack. GSCONN part GSC-AUD-0124.
Surface MountSMT termination
5,000 CyclesRated mating life
5 PinContact count
Technical Specifications
| Series | AUDIO JACK |
| Dimensions | ￠2.6×12.5×5×3.2mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
Key Features
- ￠2.6mm 5P with定位柱 (surface-mount type) audio jack
- Dimensions: ￠2.6×12.5×5×3.2mm
Applications
- Headphones and earphones
- Portable audio players
- Set-top boxes and TVs
- Mobile devices

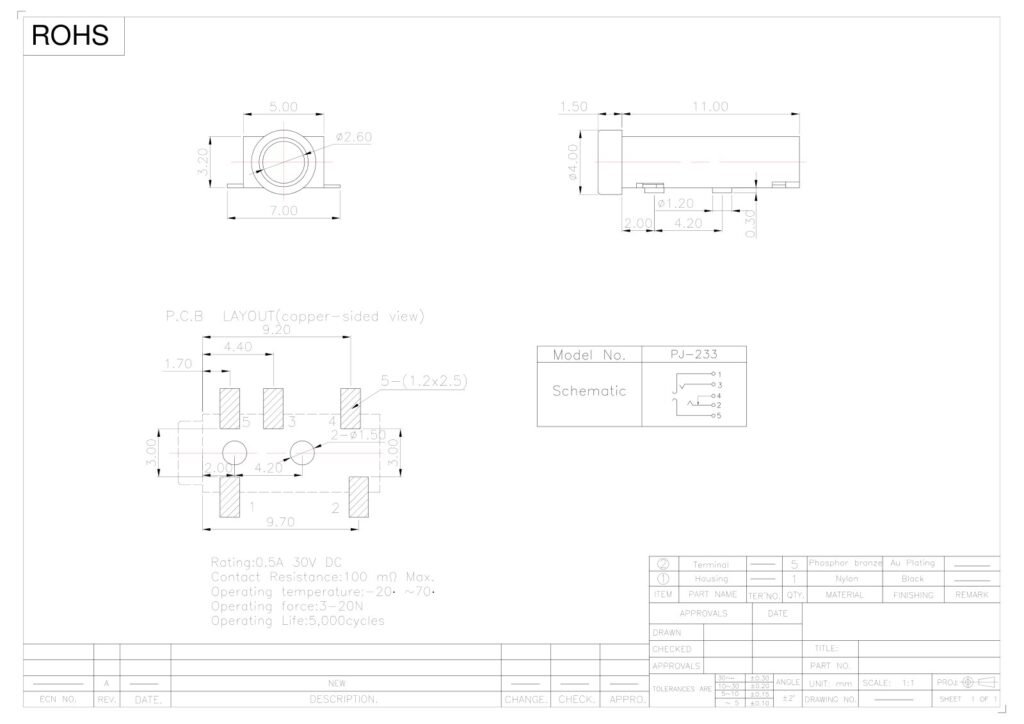

Drawing & Dimensions
GSC-AUD-0124 is an audio 5-contact connector, ￠2.6mm 5P with定位柱 (surface-mount type) audio jack.
| Series | AUDIO JACK |
|---|---|
| Dimensions | ￠2.6×12.5×5×3.2mm |
| Mating cycles | 5,000 cycles |
| Insertion / Removal force | 3–20 N |
